Multi-Display And Parking Assist (Rear View Monitor w/o Navigation System)

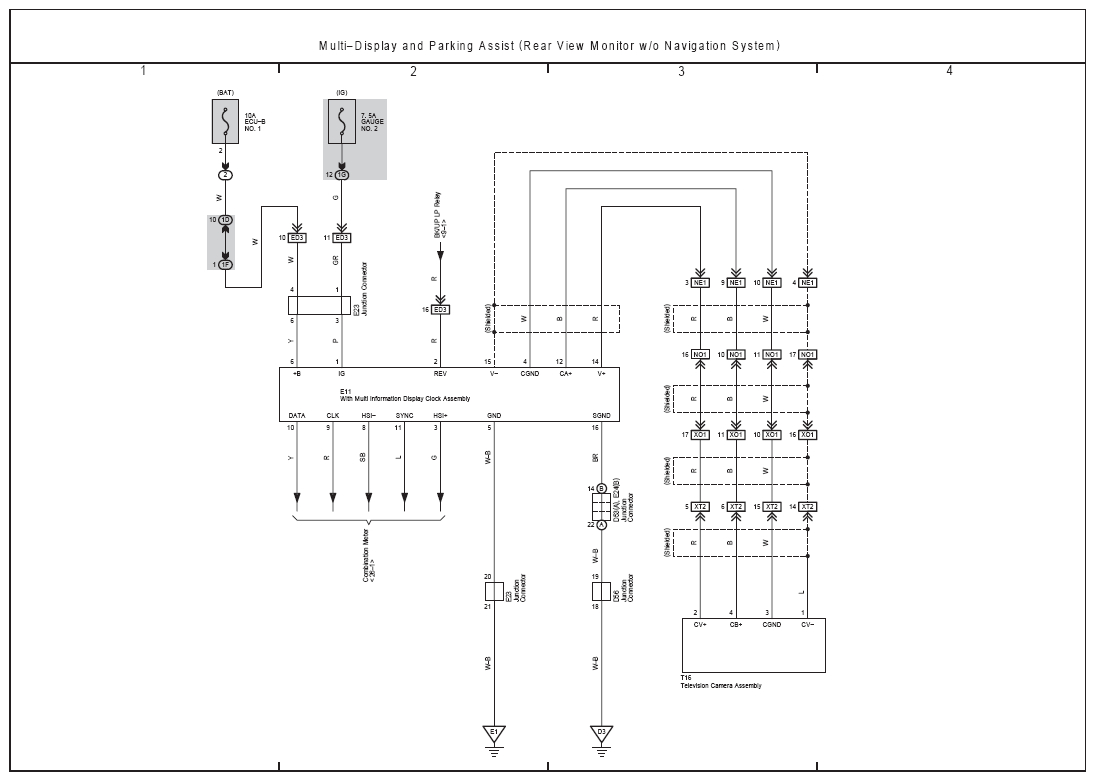

Fig 1: Multi-Display And Parking Assist (Rear View Monitor w/o Navigation System) Electrical Wiring Diagram
G08858547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
