Overall Electrical Wiring Diagram
>>
Mirror Heater, Remote Control Mirror
Mirror Heater, Remote Control Mirror

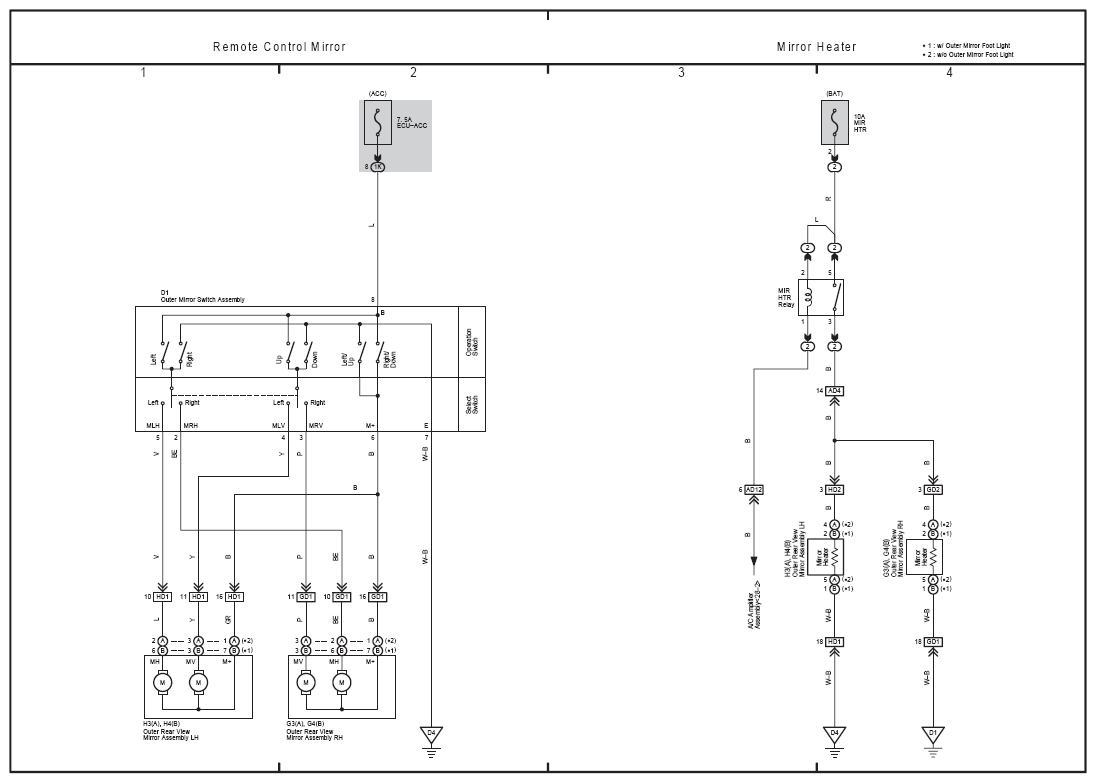

Fig 1: Mirror Heater And Remote Control Mirror Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
