Hybrid Vehicle Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control (w/Smart Key System)

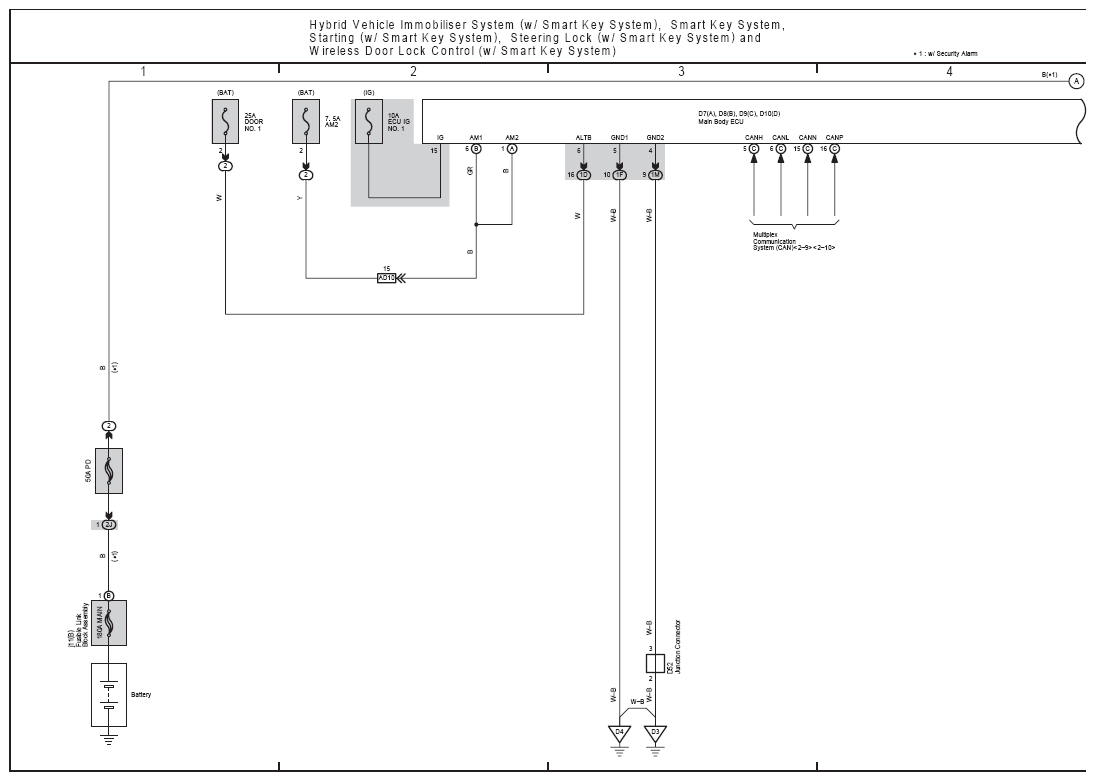

Fig 1: Hybrid Vehicle Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control Electrical Wiring Diagram (With Smart Key; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

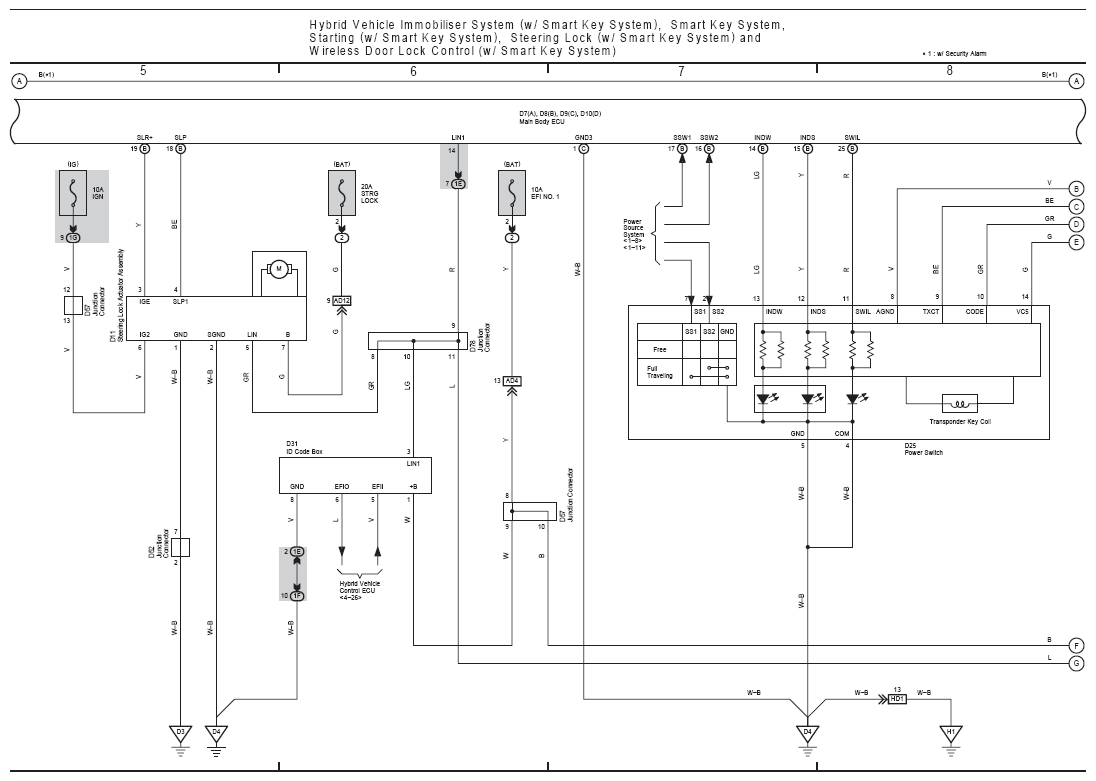

Fig 2: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Electrical Wiring Diagram (With Smart Key; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

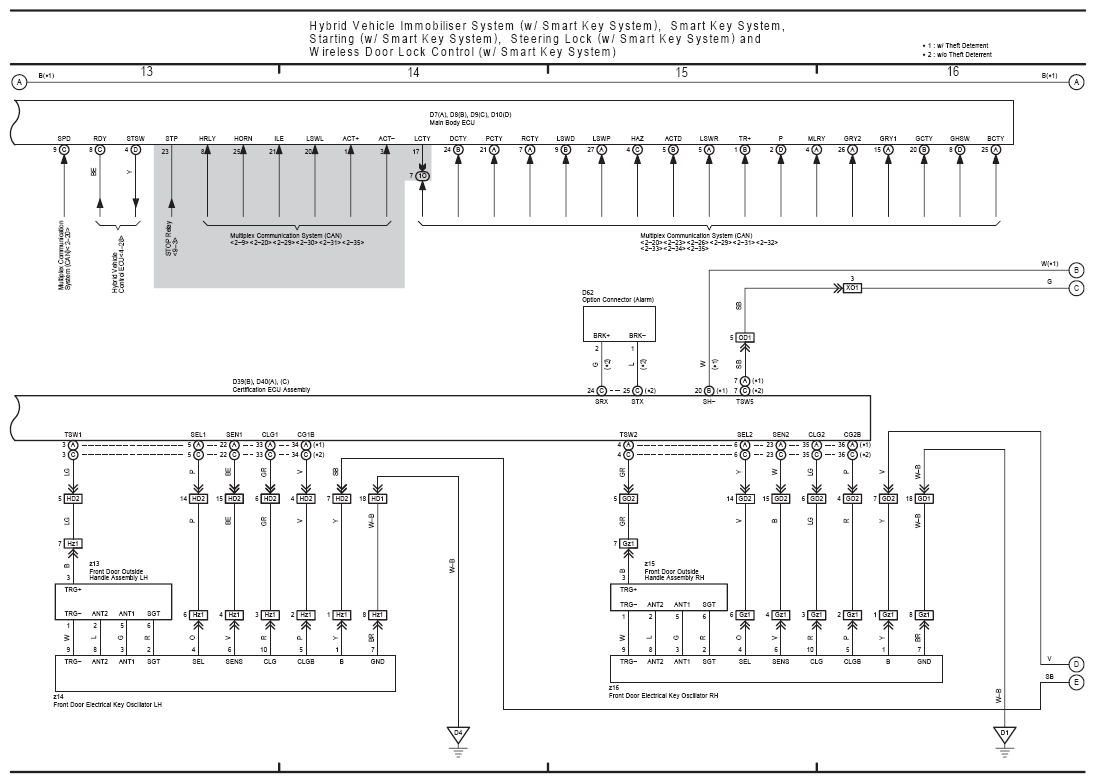

Fig 3: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Electrical Wiring Diagram (With Smart Key; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

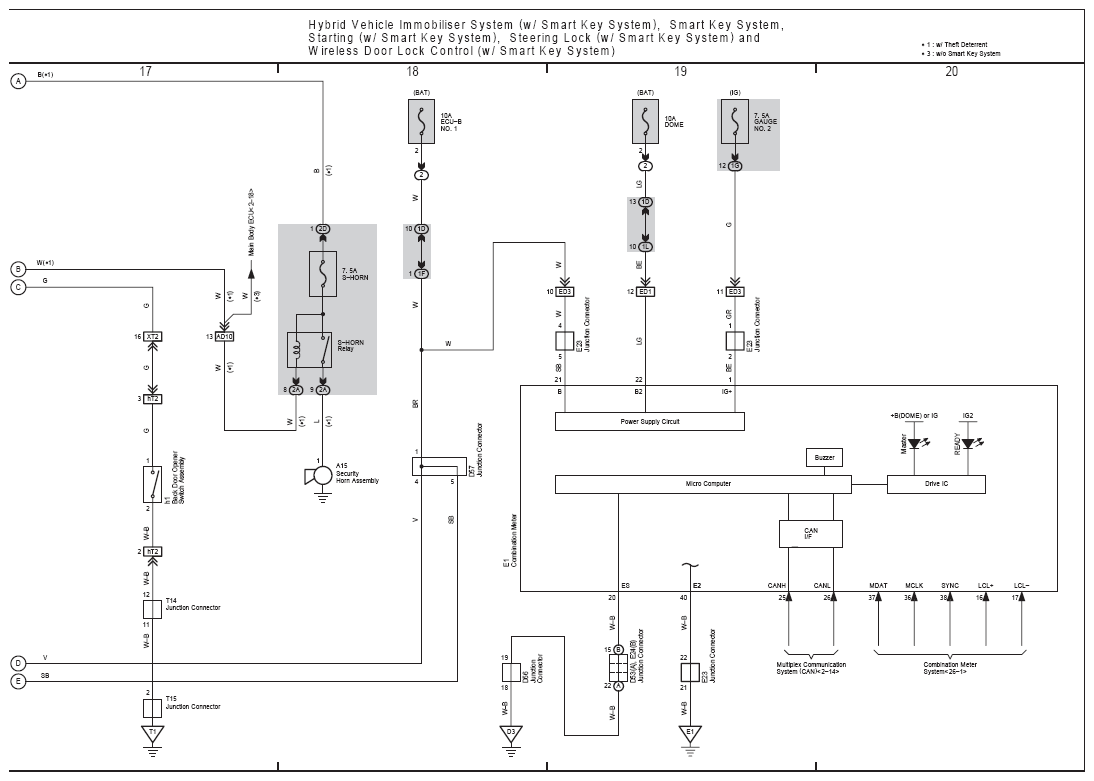

Fig 4: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Electrical Wiring Diagram (With Smart Key; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

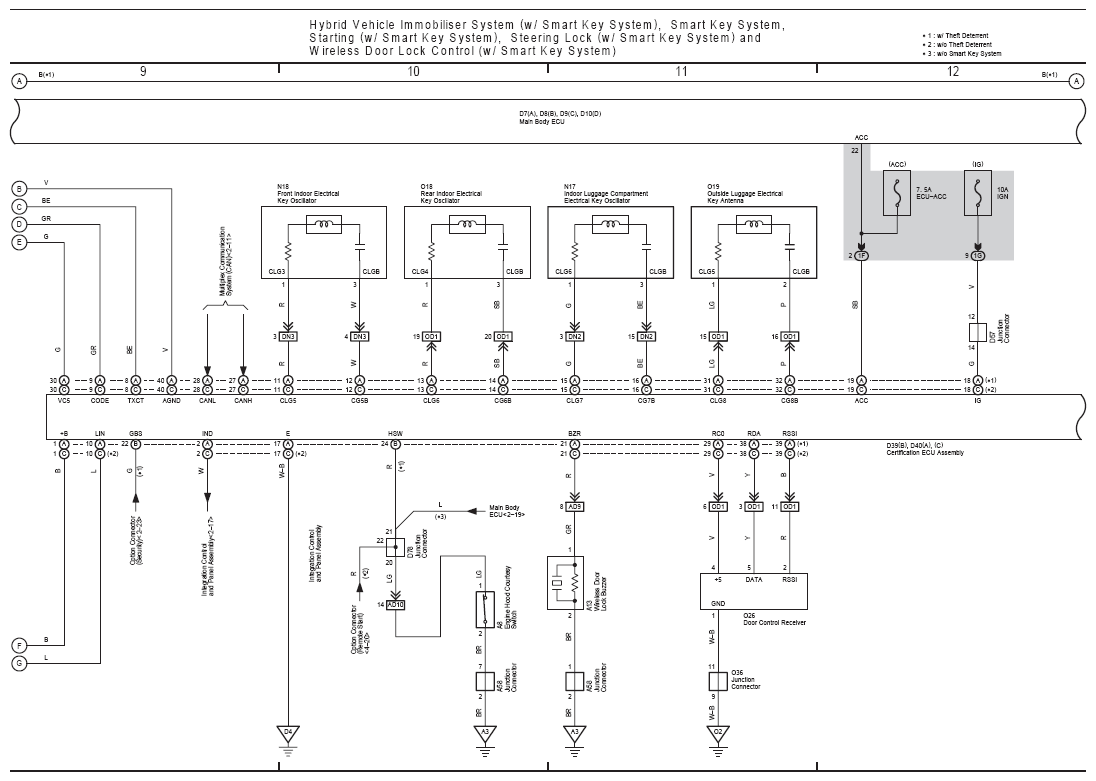

Fig 5: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Electrical Wiring Diagram (With Smart Key; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
