DLC3, Hybrid Engine Immobilizer System (w/o Smart Key System)

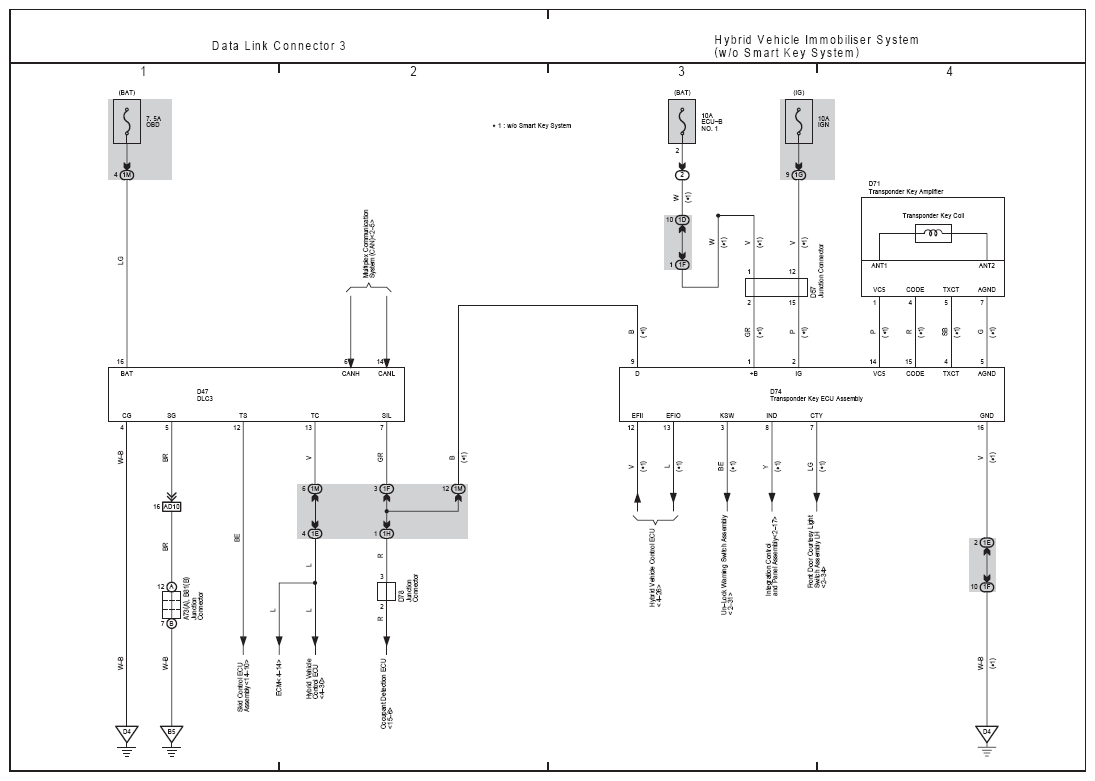

Fig 1: DLC3 And Hybrid Engine Immobilizer System (w/o Smart Key System) Electrical Wiring Diagram
G08858526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
