Overall Electrical Wiring Diagram
>>
Cooling Fan, Rear Window Defogger
Cooling Fan, Rear Window Defogger

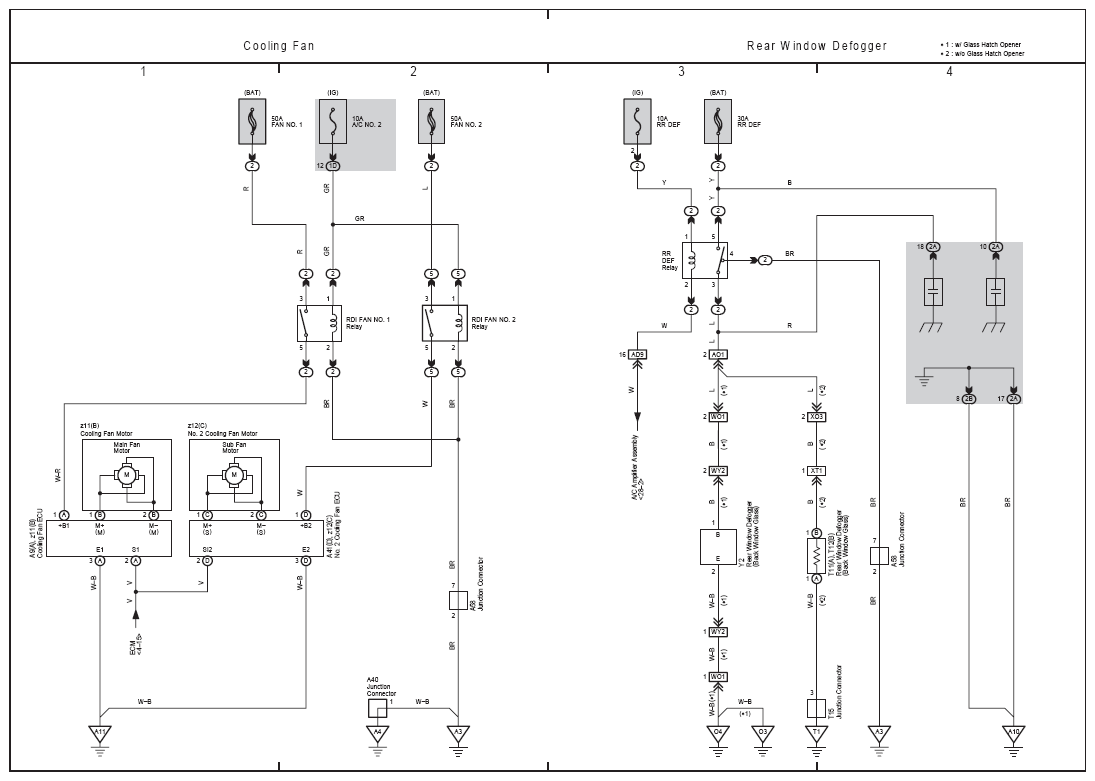

Fig 1: Cooling Fan And Rear Window Defogger Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
