Automatic Glare-Resistant EC Mirror With Compass, Sliding Roof

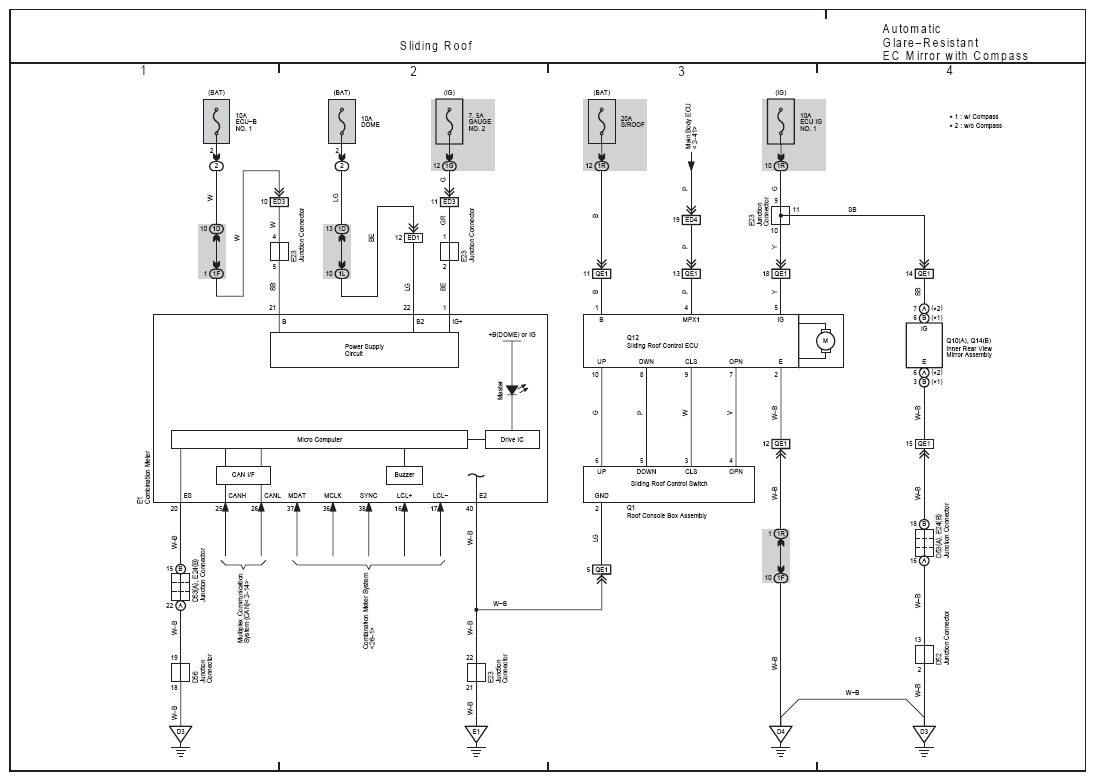

Fig 1: Automatic Glare-Resistant EC Mirror With Compass And Sliding Roof Electrical Wiring Diagram
G08858531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
