Audio (JBL), Navigation, Parking Assist (Rear View Monitor w/Navigation System)

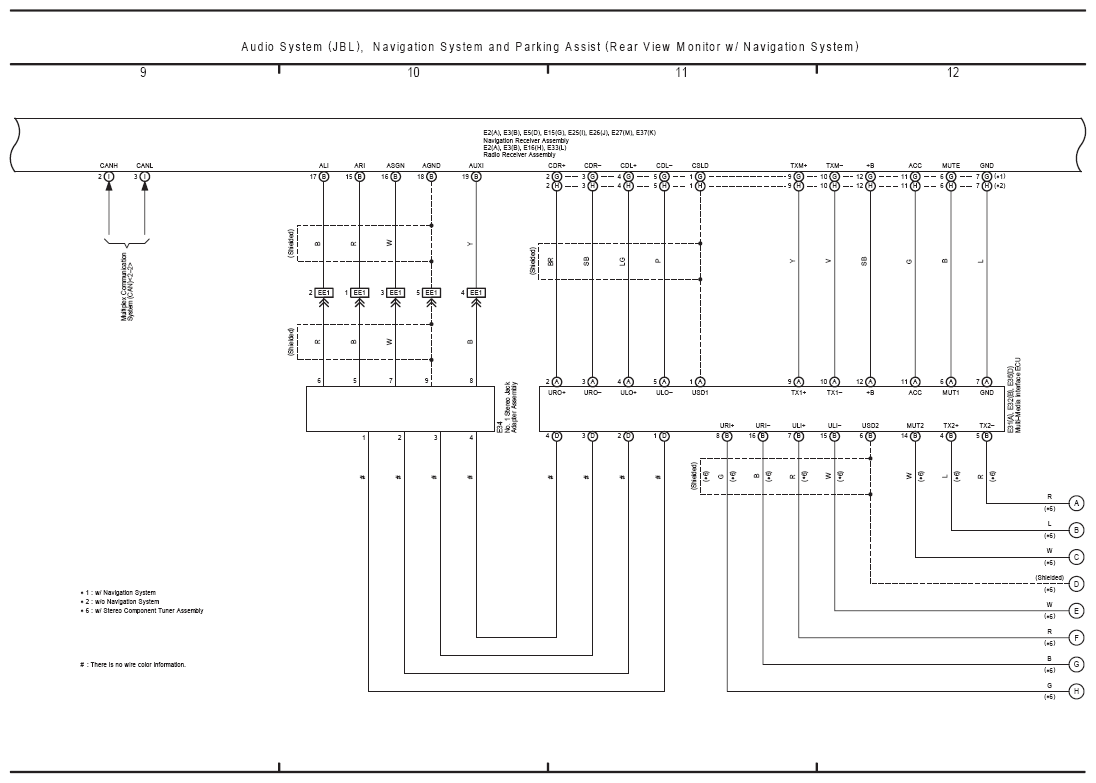

Fig 1: Audio (JBL), Navigation And Parking Assist (Rear View Monitor w/Navigation System) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

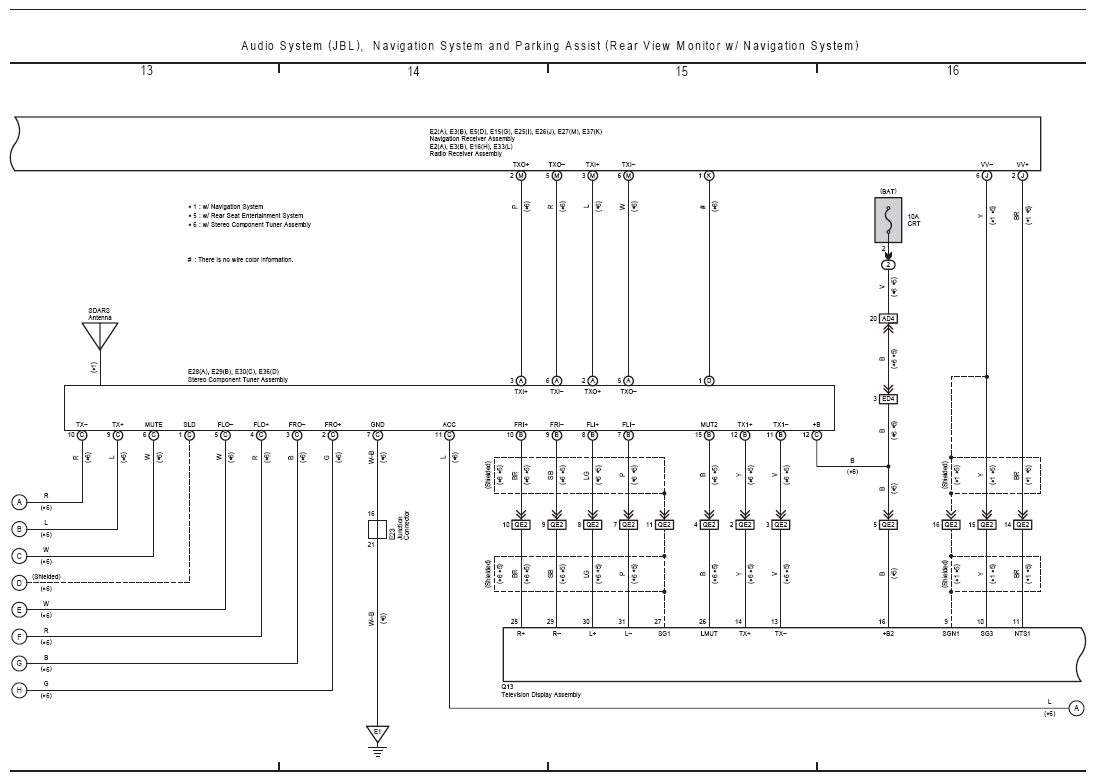

Fig 2: Audio (JBL), Navigation And Parking Assist (Rear View Monitor w/Navigation System) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

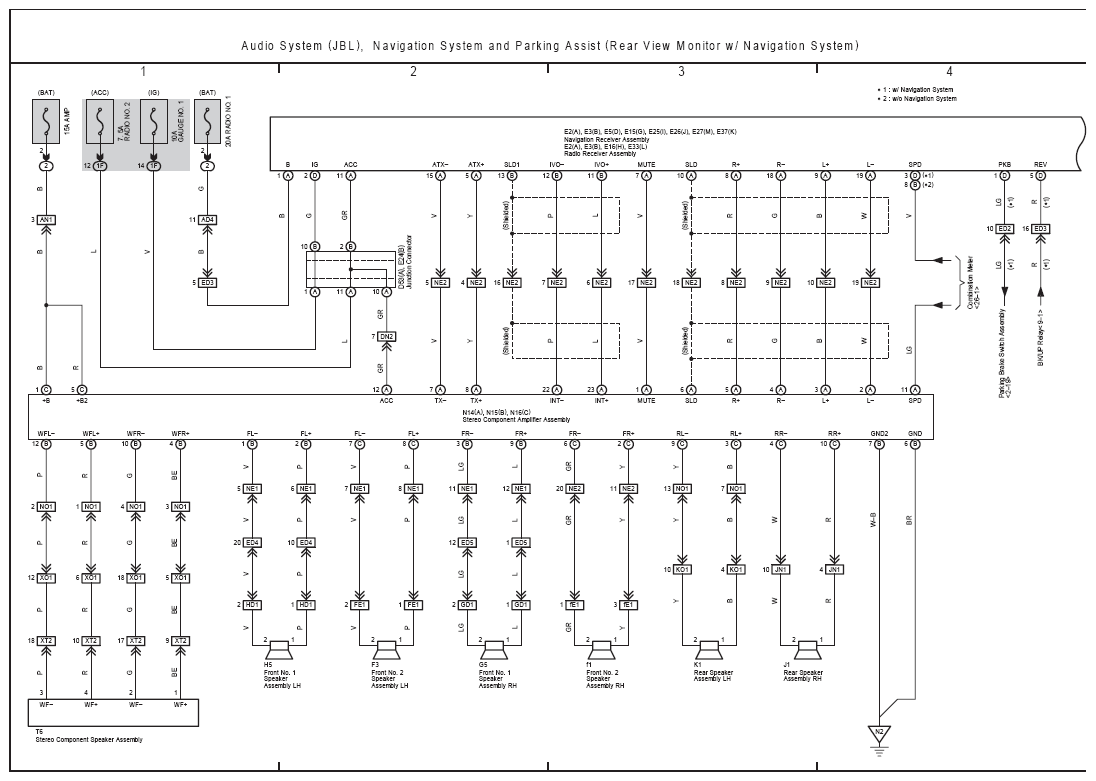

Fig 3: Audio (JBL), Navigation And Parking Assist (Rear View Monitor w/Navigation System) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

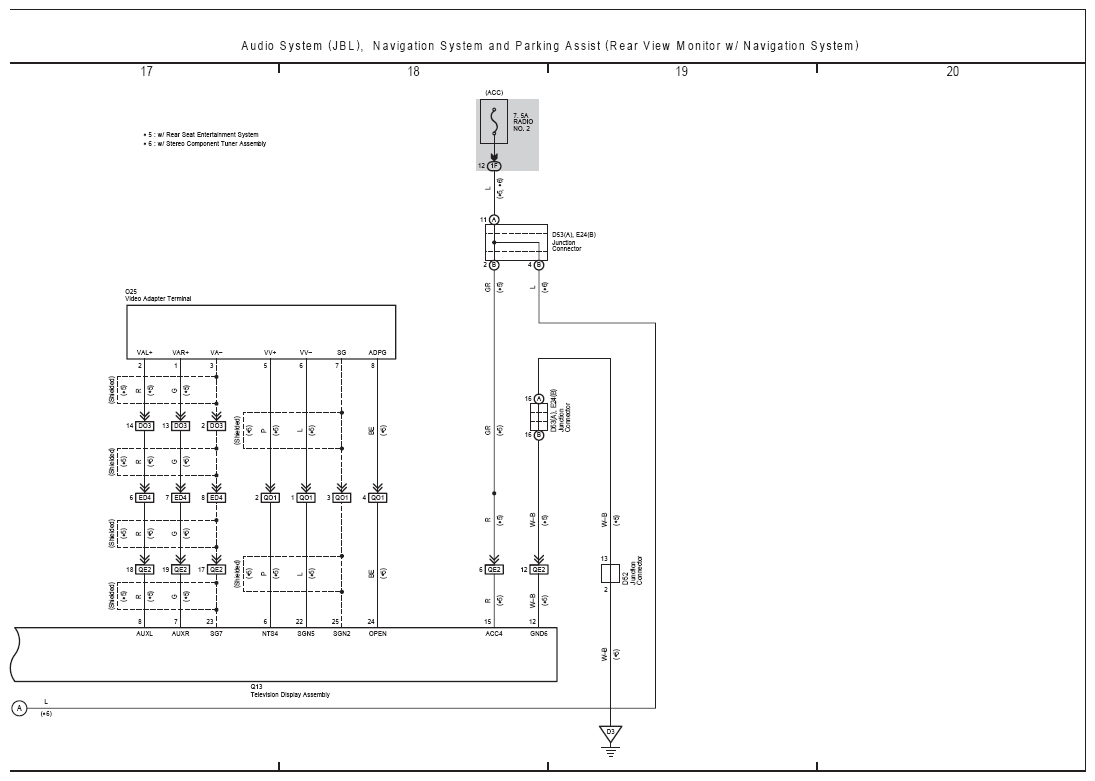

Fig 4: Audio (JBL), Navigation And Parking Assist (Rear View Monitor w/Navigation System) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

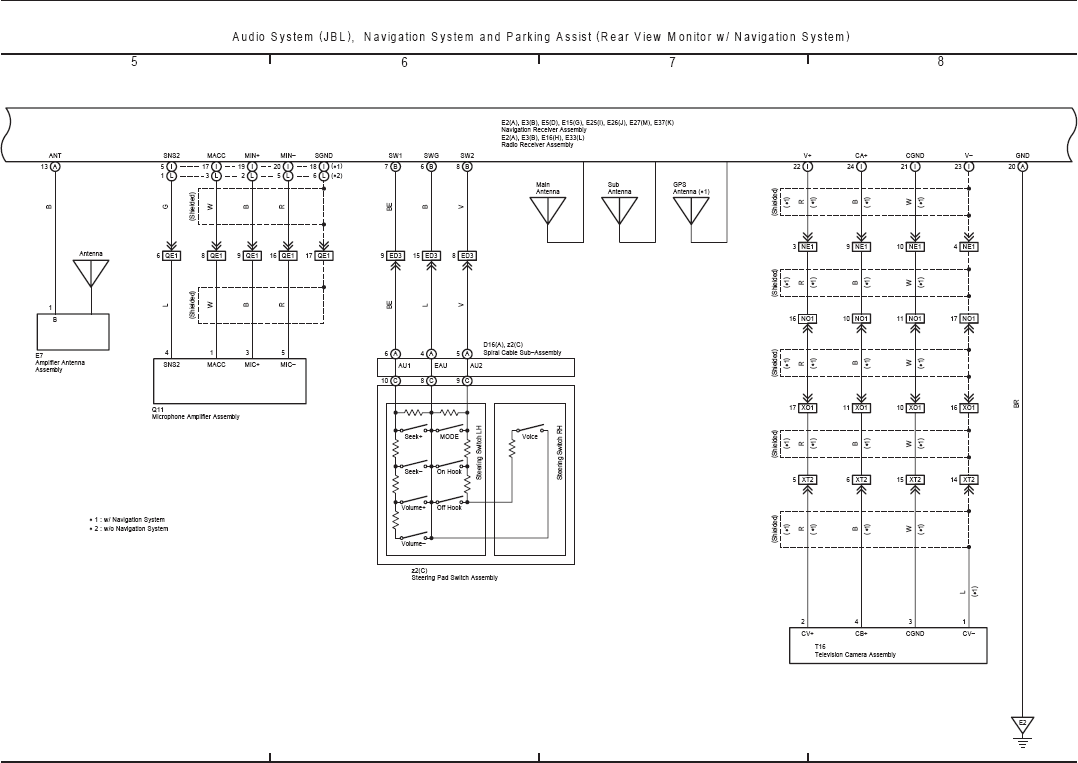

Fig 5: Audio (JBL), Navigation And Parking Assist (Rear View Monitor w/Navigation System) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
