Air Conditioning

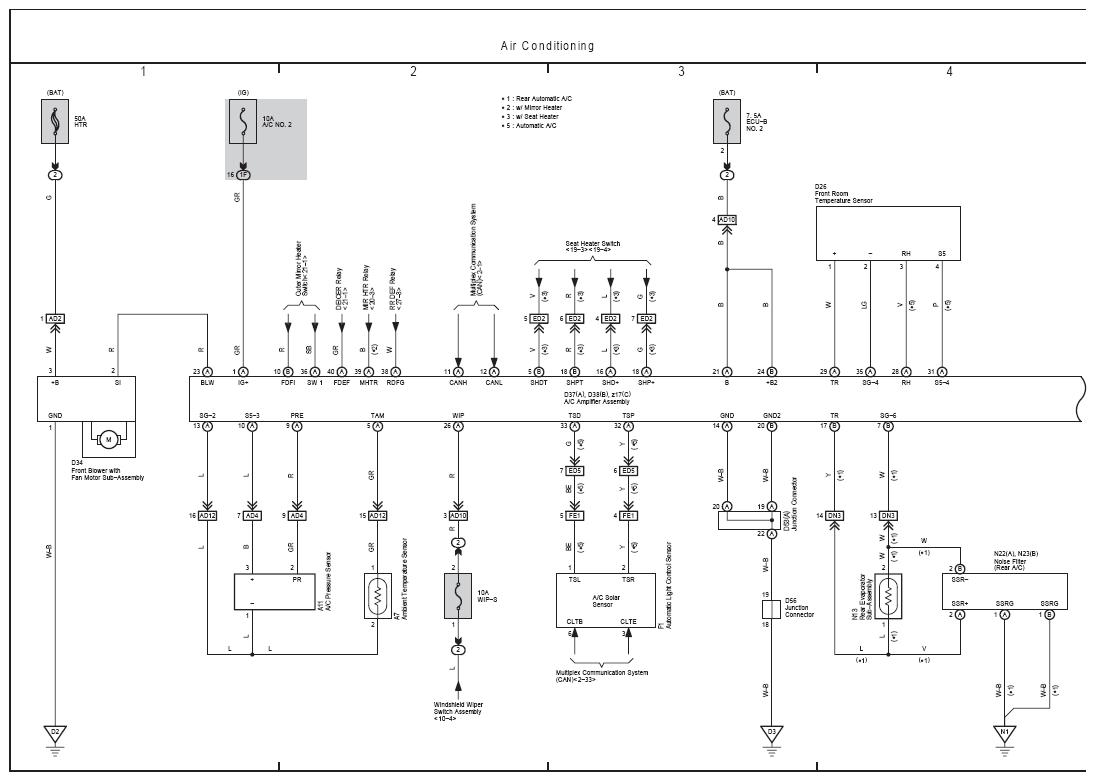

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 4)
G08858558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

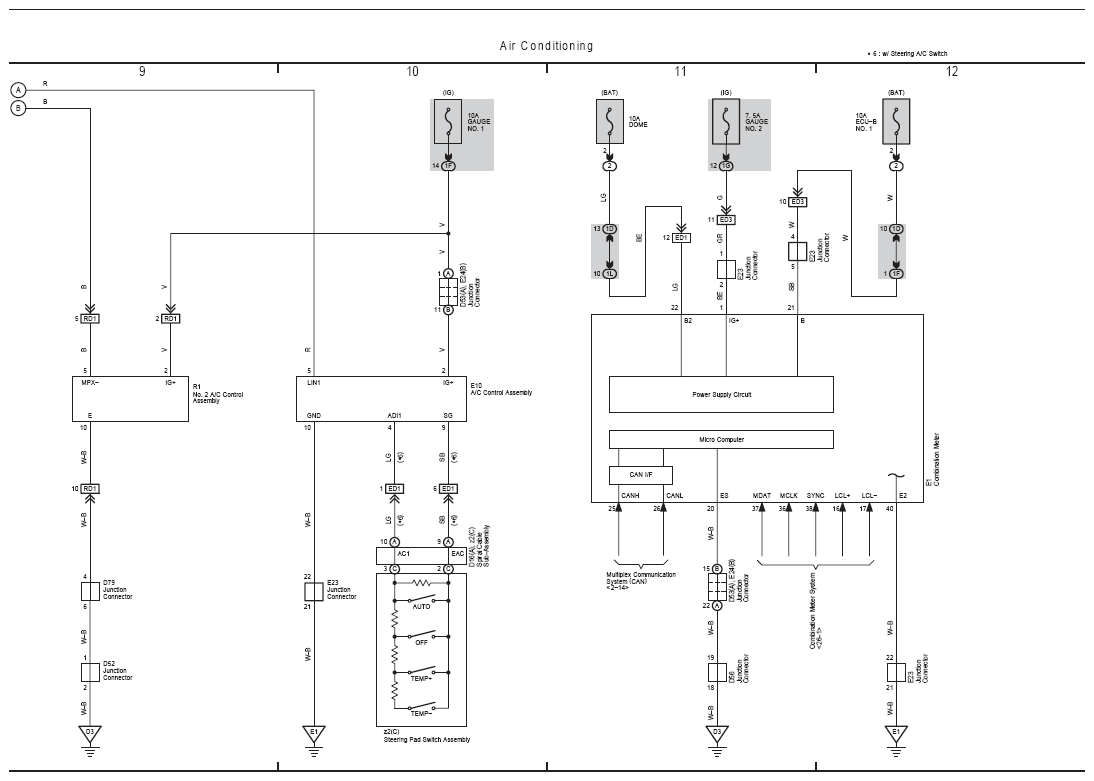

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 4)
G08858559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

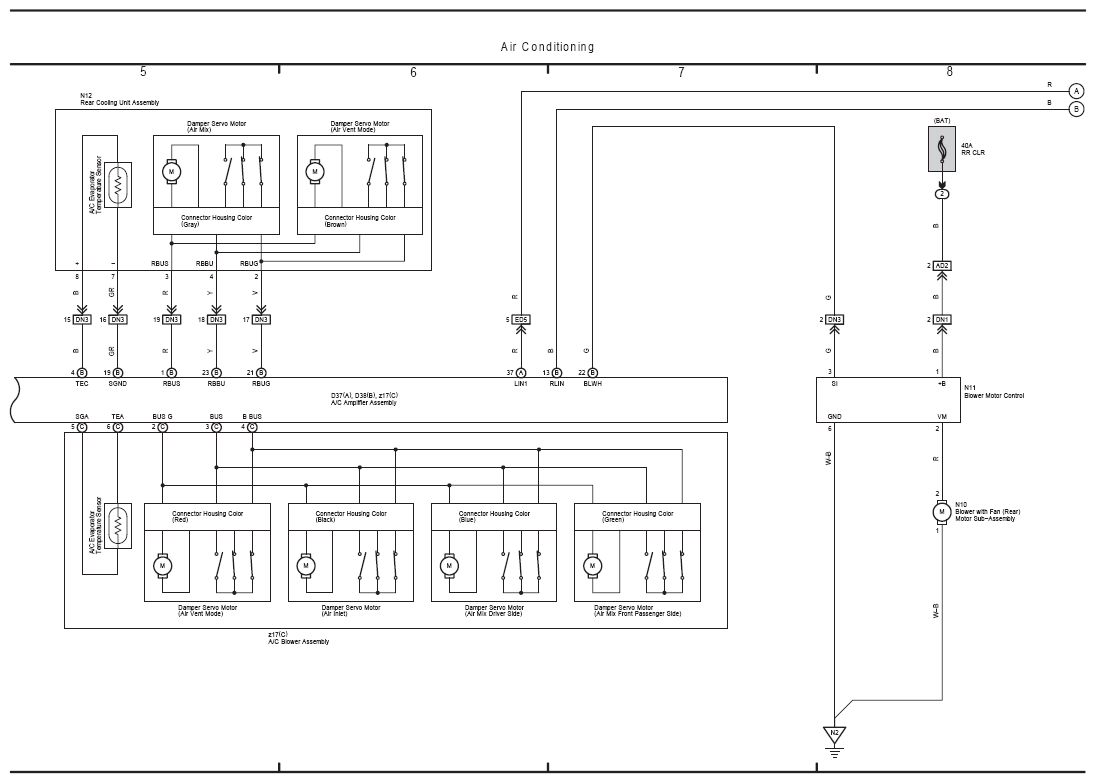

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 4)
G08858560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

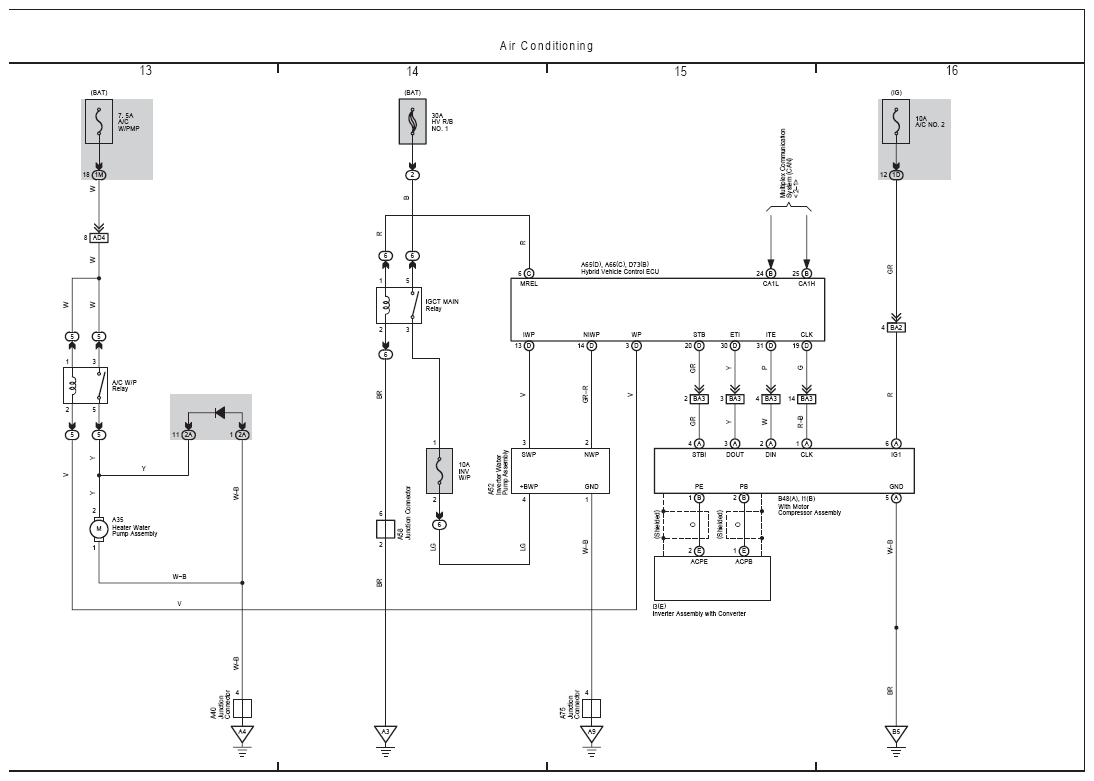

Fig 4: Air Conditioning Electrical Wiring Diagram (4 Of 4)
G08858561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
