Parking Brake Pedal: Removal: Removal

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the parking brake pedal. Refer to PRECAUTION .

REMOVE DECK BOARD ASSEMBLY . Refer to REMOVAL - Step 1
REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to REMOVAL - Step 2
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)
Refer to REMOVAL
REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)
Refer to REMOVAL
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
Refer to REMOVAL
REMOVE REAR DOOR SCUFF PLATE LH
Refer to REMOVAL - Step 24
REMOVE LOWER CENTER PILLAR GARNISH LH
Refer to REMOVAL
REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL
REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Refer to REMOVAL - Step 31
REMOVE REAR NO. 2 AIR DUCT
1. Turn back the front floor carpet assembly.
2. Remove the clip and the rear No. 2 air duct.

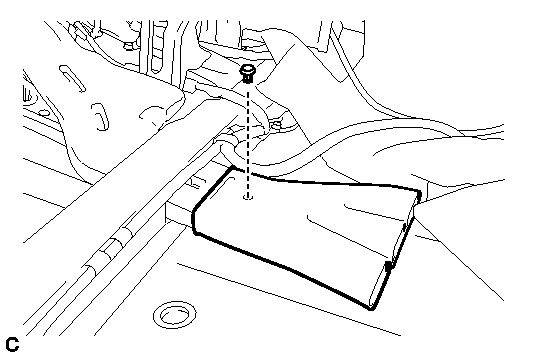

  Fig 1: Identifying Rear No. 2 Air Duct And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 1 AIR DUCT
1. Detach the wire harness clamp.

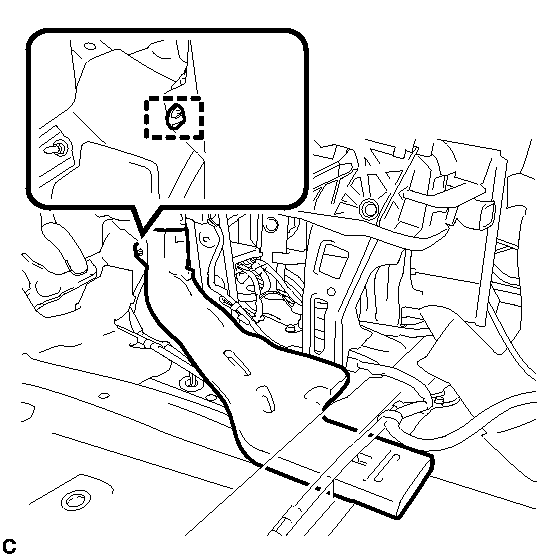

  Fig 2: Identifying Rear No. 1 Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the rear No. 1 air duct.
REMOVE FRONT FLOOR FOOTREST
1. Detach the 2 clips to remove the front floor footrest.

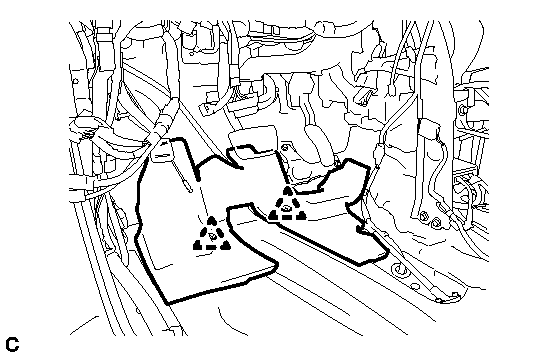

  Fig 3: Identifying Front Floor Footrest And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LOOSEN ADJUSTING NUT

Remove the lock nut and loosen the adjusting nut.

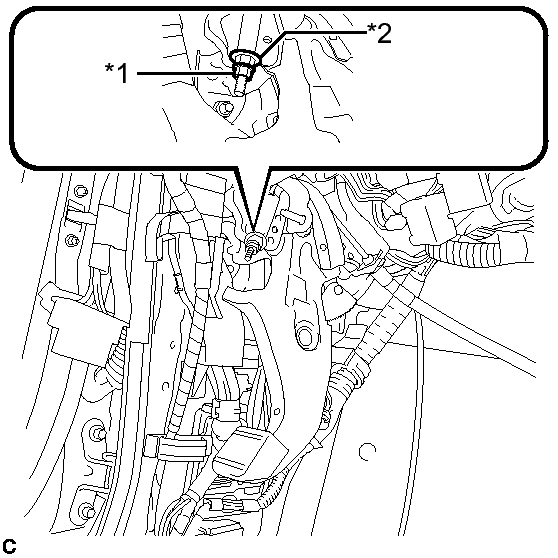

Fig 4: Identifying Lock Nut & Adjusting Nut

TEXT IN ILLUSTRATION

*1	Lock Nut
*2	Adjusting Nut

REMOVE FRONT CENTER FLOOR COVER
Refer to REMOVAL - Step 1
REMOVE REAR ENGINE SERVICE COVER ASSEMBLY
Refer to REMOVAL - Step 2
DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
1. Disconnect the No. 3 parking brake cable assembly from the parking brake equalizer.

  Fig 5: Identifying No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY
HINT:

Perform the same procedure as the No. 3 parking brake cable assembly.
REMOVE PARKING BRAKE EQUALIZER
1. Slide the rubber boot as shown in the illustration.

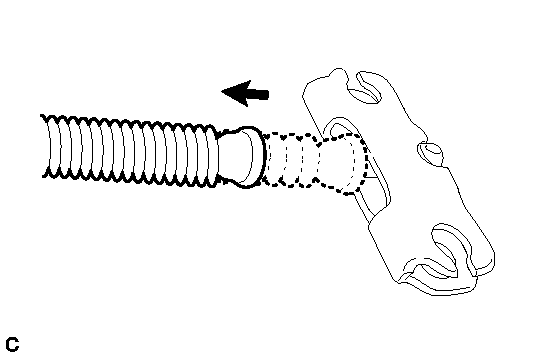

  Fig 6: Sliding Rubber Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the parking brake equalizer from the No. 1 parking brake cable assembly as shown in the illustration.

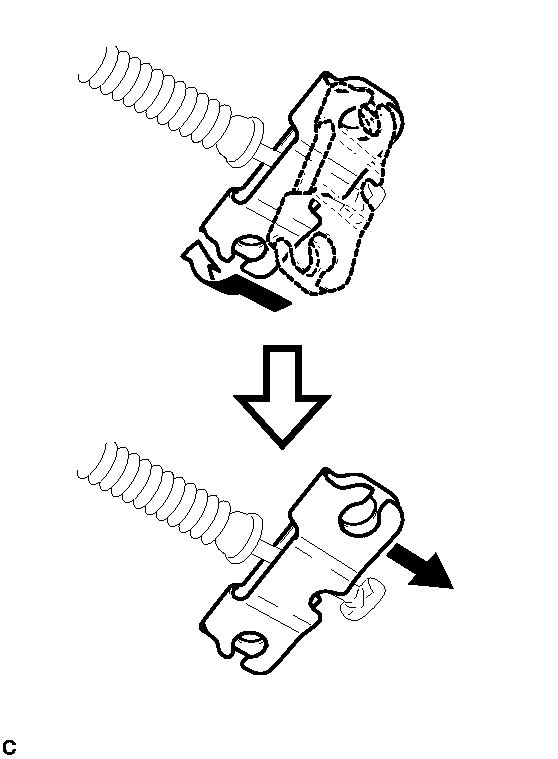

  Fig 7: Identifying Parking Brake Equalizer Of No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
Refer to REMOVAL - Step 61
REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
1. Remove the 2 bolts and 2 nuts, and disconnect the No. 1 parking brake cable assembly.

  Fig 8: Identifying Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clamp.
3. Pull out the No. 1 parking brake cable assembly toward the cabin.

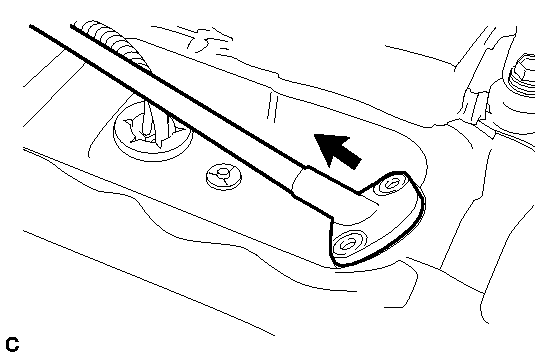

  Fig 9: Pulling No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the parking brake switch connector.

  Fig 10: Locating Parking Brake Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Detach the 2 clamps to disconnect the wire harness clamp.

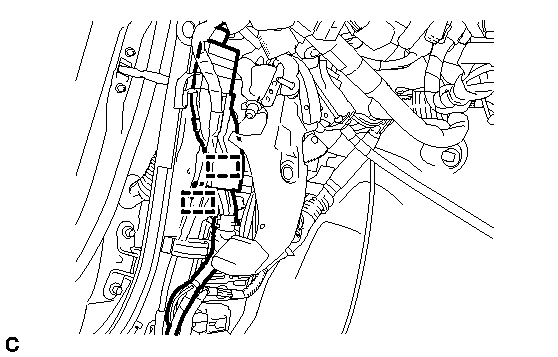

  Fig 11: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 3 nuts and the parking brake control pedal assembly.

  Fig 12: Identifying Parking Brake Control Pedal Assembly And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
