Parking Brake Pedal: Installation: Installation

INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
1. Install the parking brake control pedal assembly with the 3 nuts.

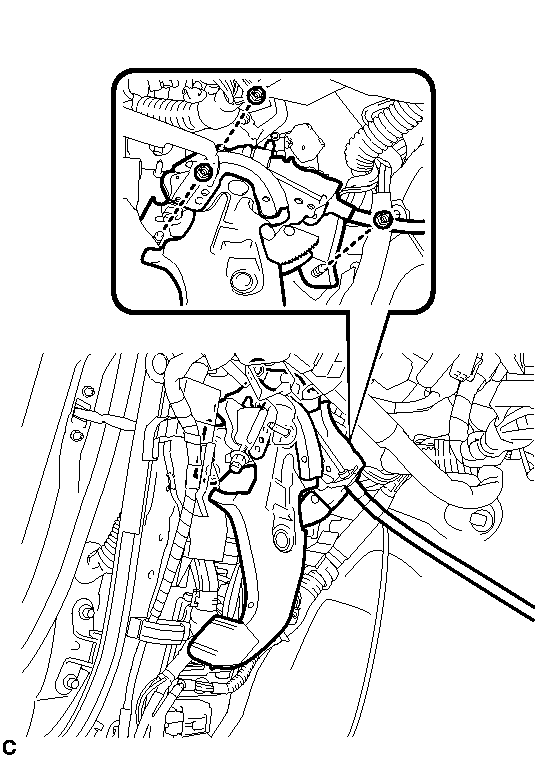

  Fig 1: Identifying Parking Brake Control Pedal Assembly And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
2. Connect the parking brake switch connector.

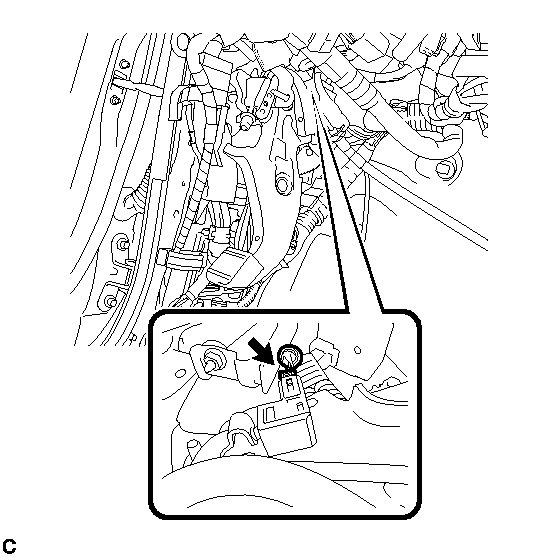

  Fig 2: Locating Parking Brake Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert the No. 1 parking brake cable assembly toward the outside of the cabin.

  Fig 3: Locating No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the No. 1 parking brake cable assembly with the 2 bolts and 2 nuts.

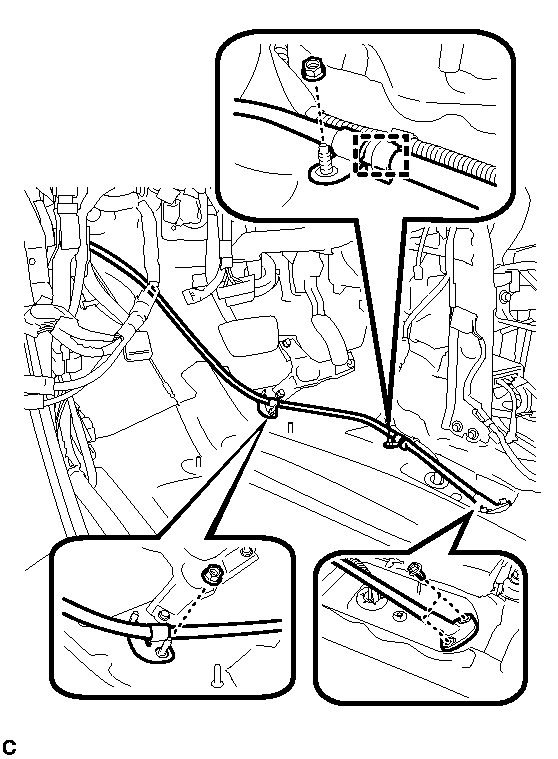

  Fig 4: Identifying Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  for Bolt

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  for Nut

  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
5. Install the clamp.
6. Temporarily install the lock nut.

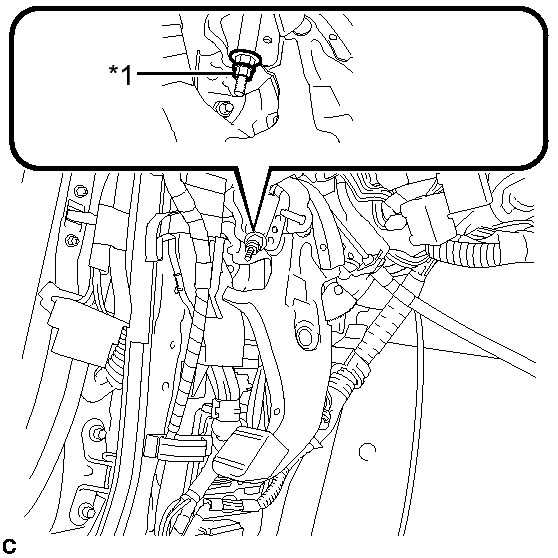

  Fig 5: Identifying Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Lock Nut

  HINT:

  After adjusting parking brake pedal travel, tighten the lock nut.
INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
Refer to INSTALLATION - Step 11
INSTALL PARKING BRAKE EQUALIZER
1. Install the parking brake equalizer to the No. 1 parking brake cable assembly as shown in the illustration.

  Fig 6: Installing Parking Brake Equalizer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the rubber boot back as shown in the illustration.

  Fig 7: Sliding Rubber Boot Back
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
1. Connect the No. 3 parking brake cable assembly to the parking brake equalizer.

  Fig 8: Identifying No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY
HINT:

Perform the same procedure as the No. 3 parking brake cable assembly.
INSTALL REAR ENGINE SERVICE COVER ASSEMBLY
Refer to INSTALLATION - Step 2
INSTALL FRONT CENTER FLOOR COVER
Refer to INSTALLATION - Step 3
INSTALL FRONT FLOOR FOOTREST
1. Attach the 2 clips to install the front floor footrest.
INSTALL REAR NO. 1 AIR DUCT
1. Install the rear No. 1 air duct.
2. Attach the wire harness clamp.
INSTALL REAR NO. 2 AIR DUCT
1. Install the rear No. 2 air duct with the clip.
2. Install the floor carpet.
INSTALL FRONT NO. 1 CONSOLE BOX INSERT
Refer to INSTALLATION - Step 16
INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION
INSTALL LOWER CENTER PILLAR GARNISH LH
Refer to INSTALLATION - Step 84
INSTALL REAR DOOR SCUFF PLATE LH
Refer to INSTALLATION - Step 86
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
Refer to INSTALLATION
INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
Refer to INSTALLATION
INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
Refer to INSTALLATION
INSPECT FRONT SEAT ASSEMBLY LH (for Power Seat) . Refer to INSTALLATION - Step 9
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to INSTALLATION - Step 119
INSTALL DECK BOARD ASSEMBLY . Refer to INSTALLATION - Step 120
ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL . Refer to ADJUSTMENT - Step 2
INSPECT BRAKE WARNING LIGHT . Refer to ADJUSTMENT - Step 3
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
