Parking Brake Cable: Components: Illustration

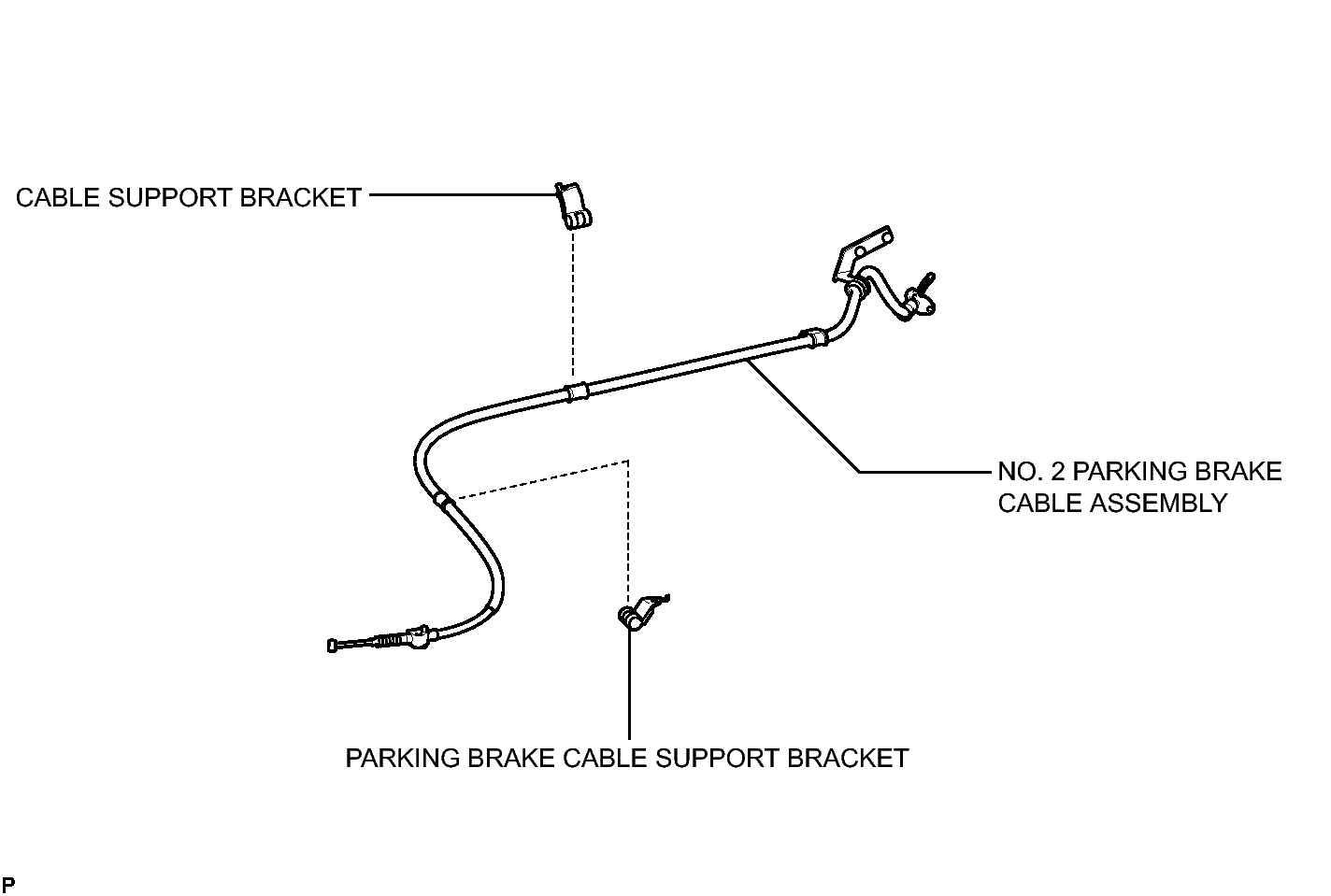

Fig 1: Identifying Parking Brake Cable Replacement Components (1 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

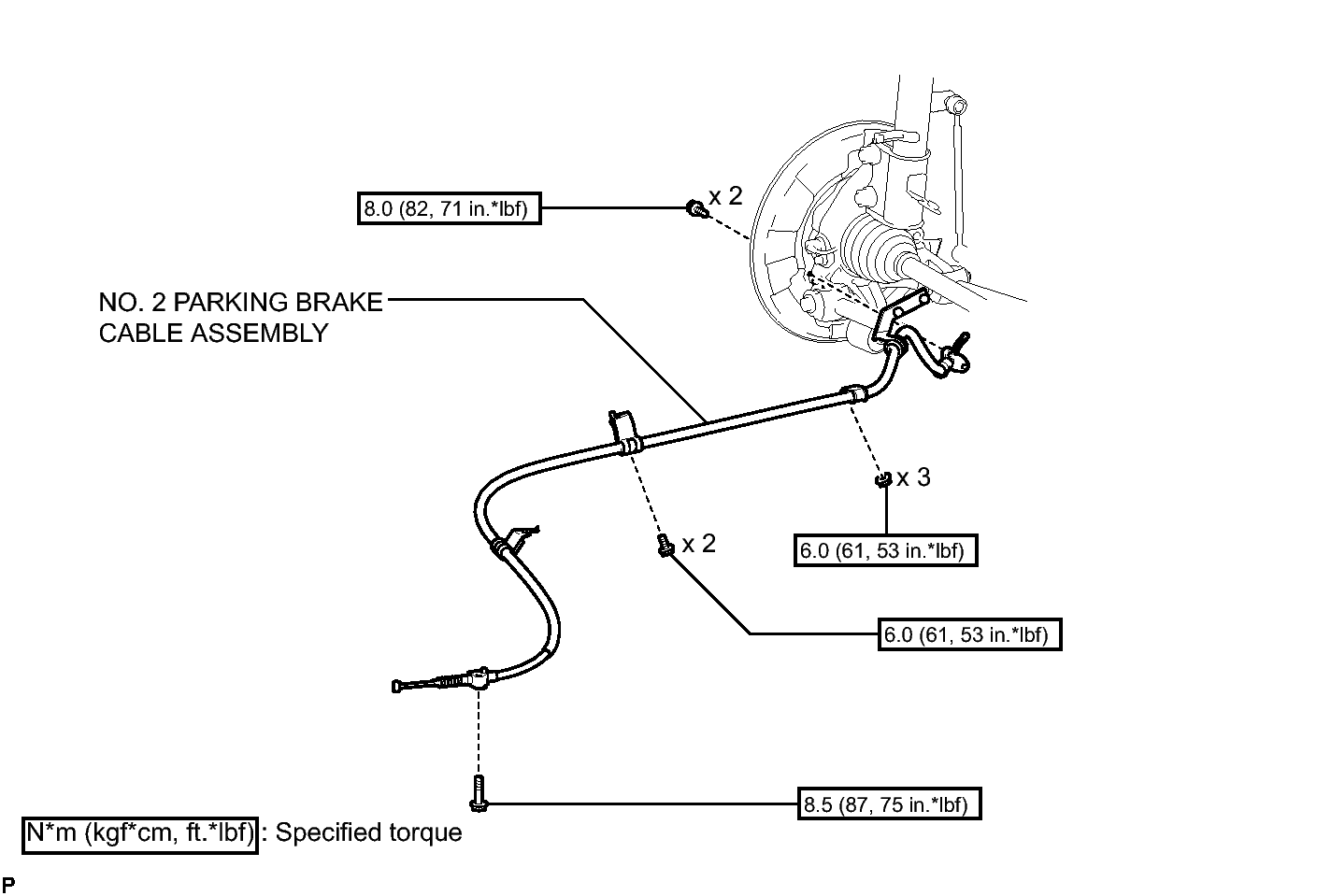

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (2 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

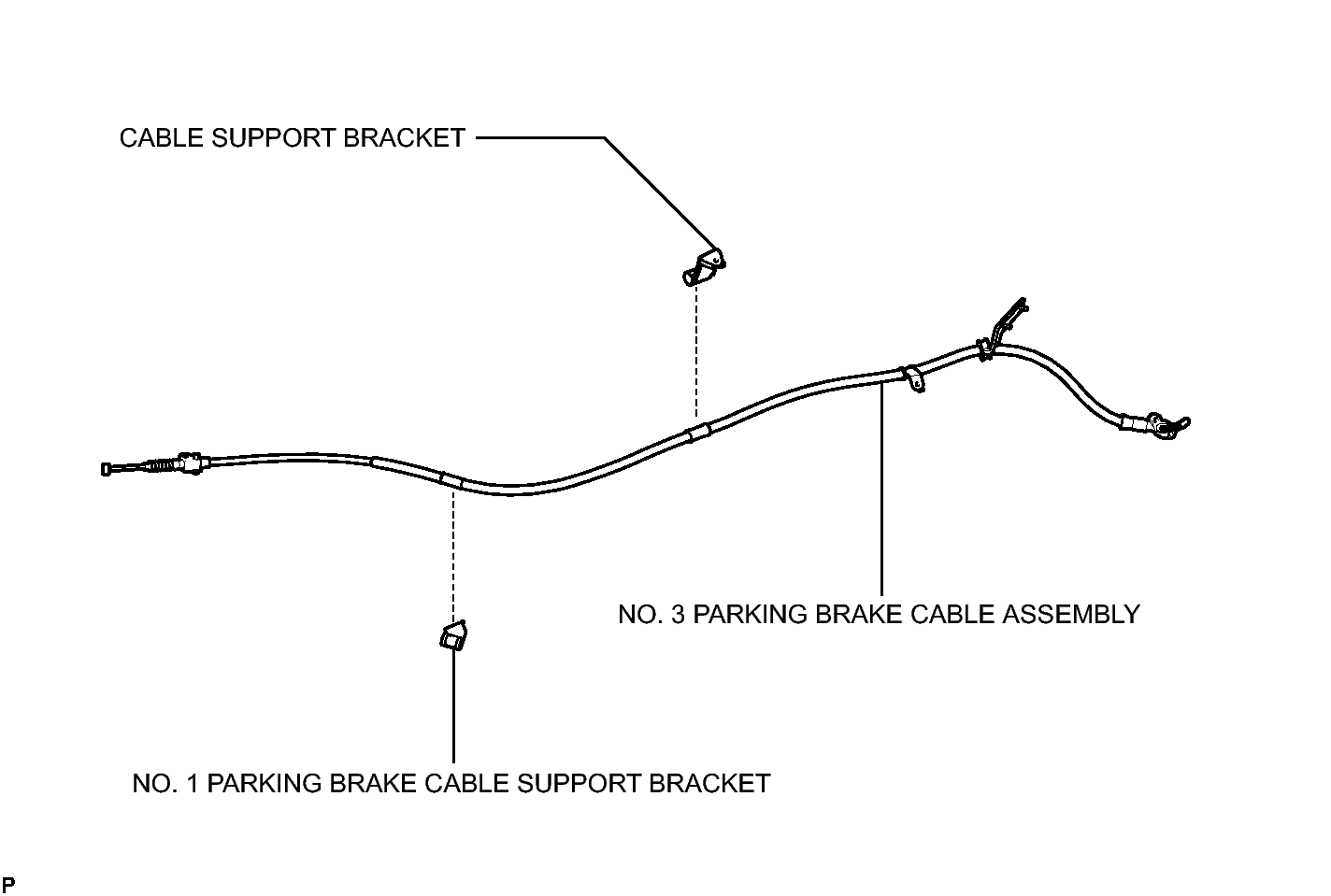

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

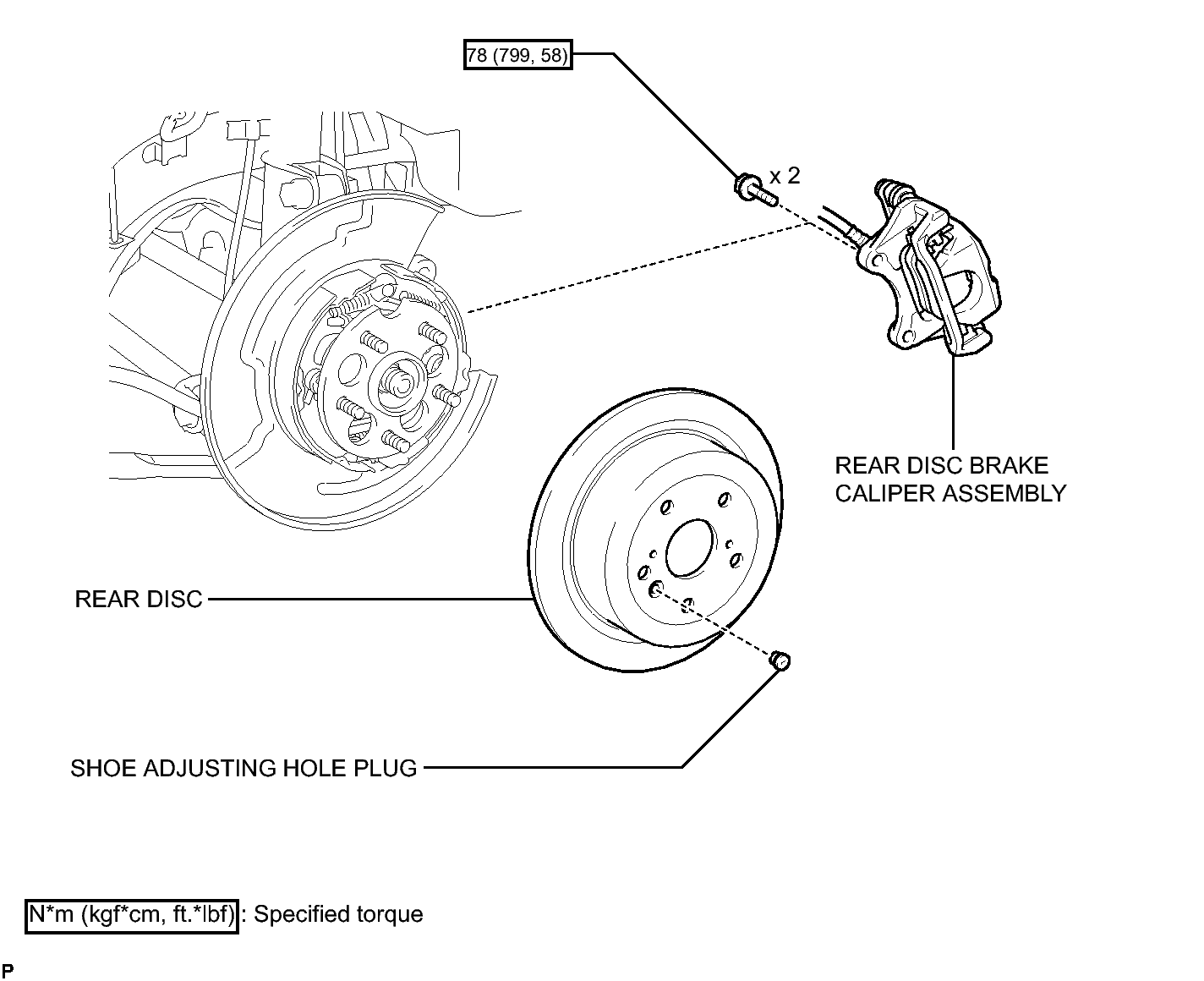

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (4 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

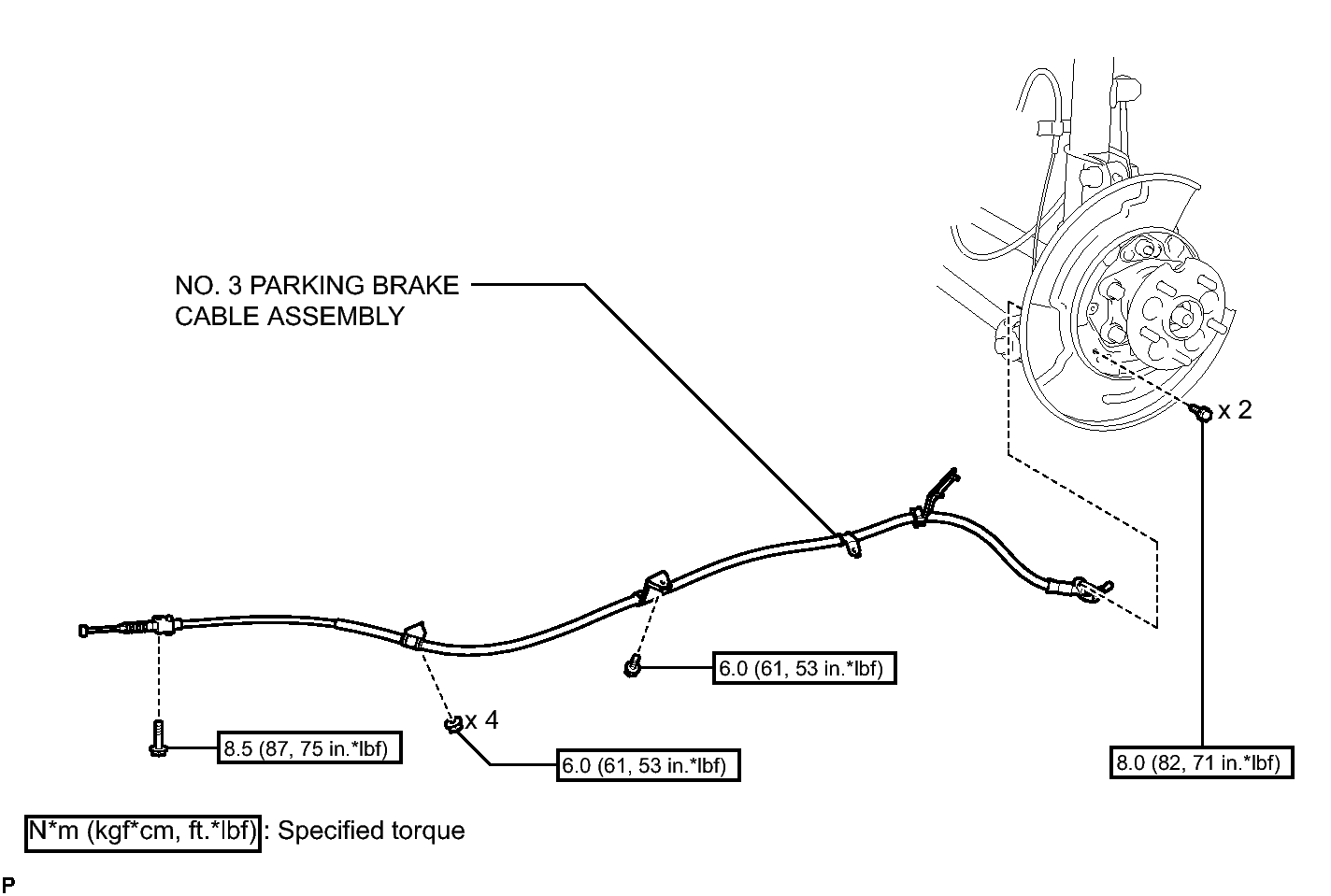

Fig 1: Identifying Parking Brake Cable Components (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

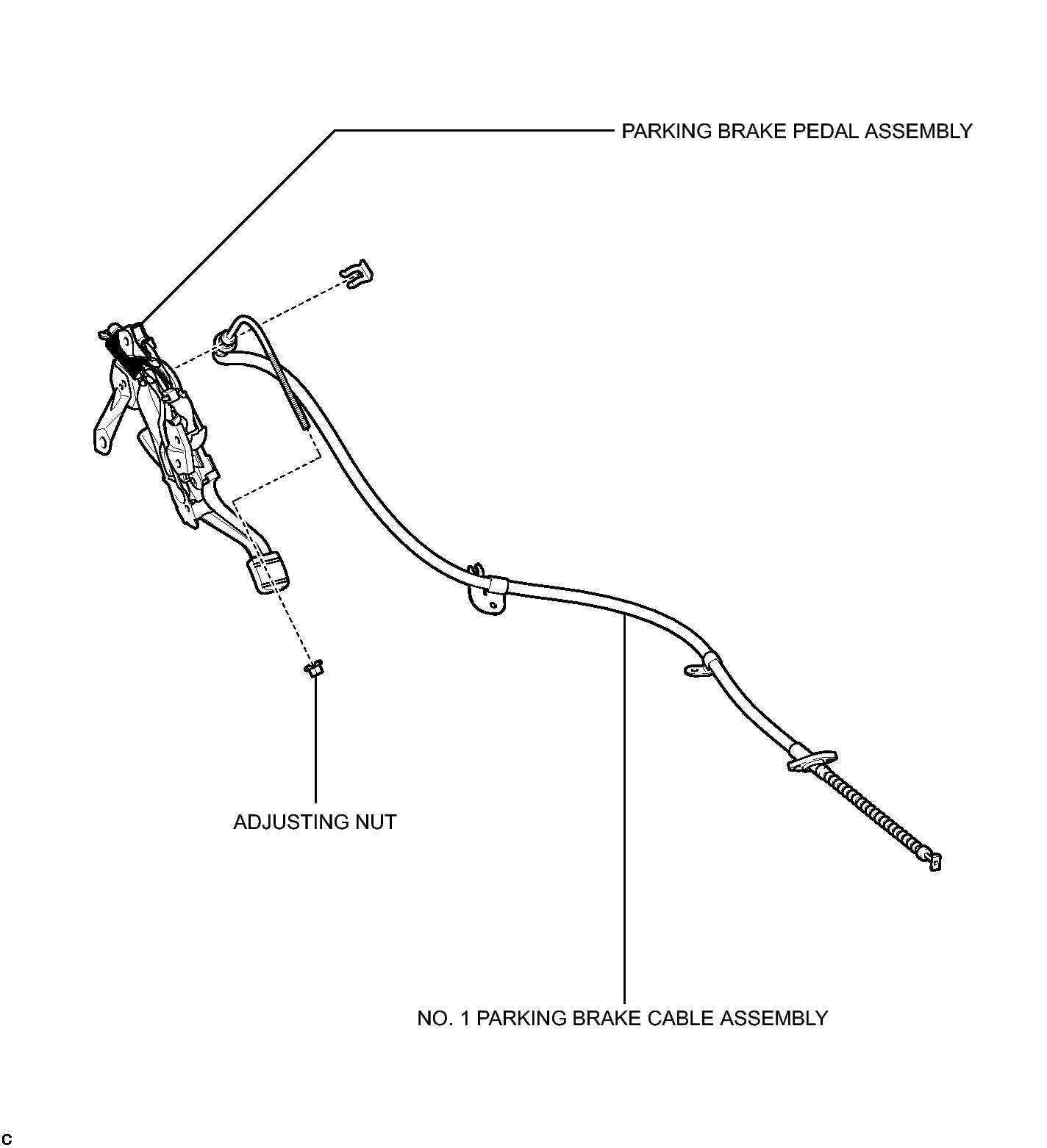

Fig 1: Identifying Parking Brake Cable Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
