Rear Brake: Components: Illustration

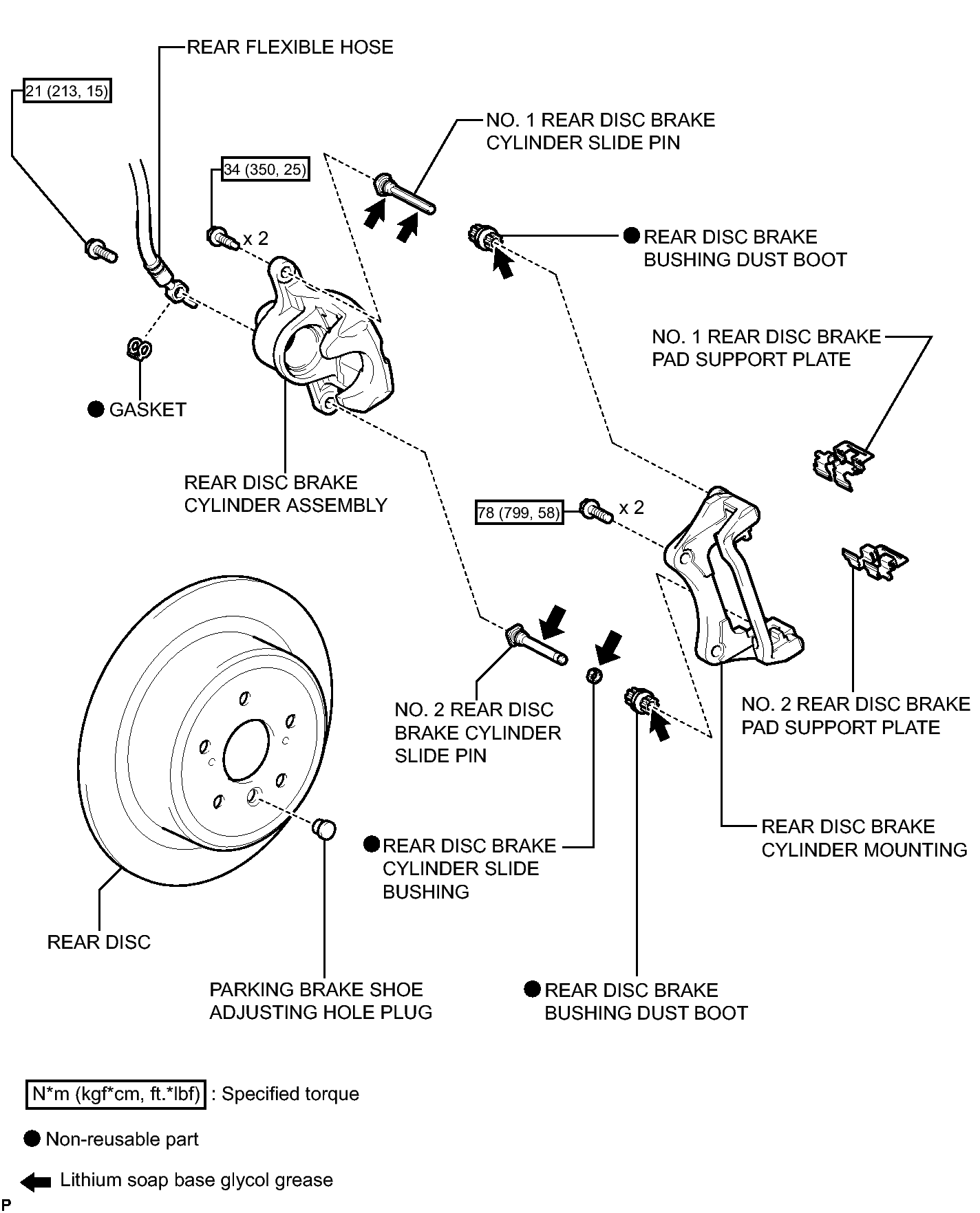

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 of 2)
GTY306375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

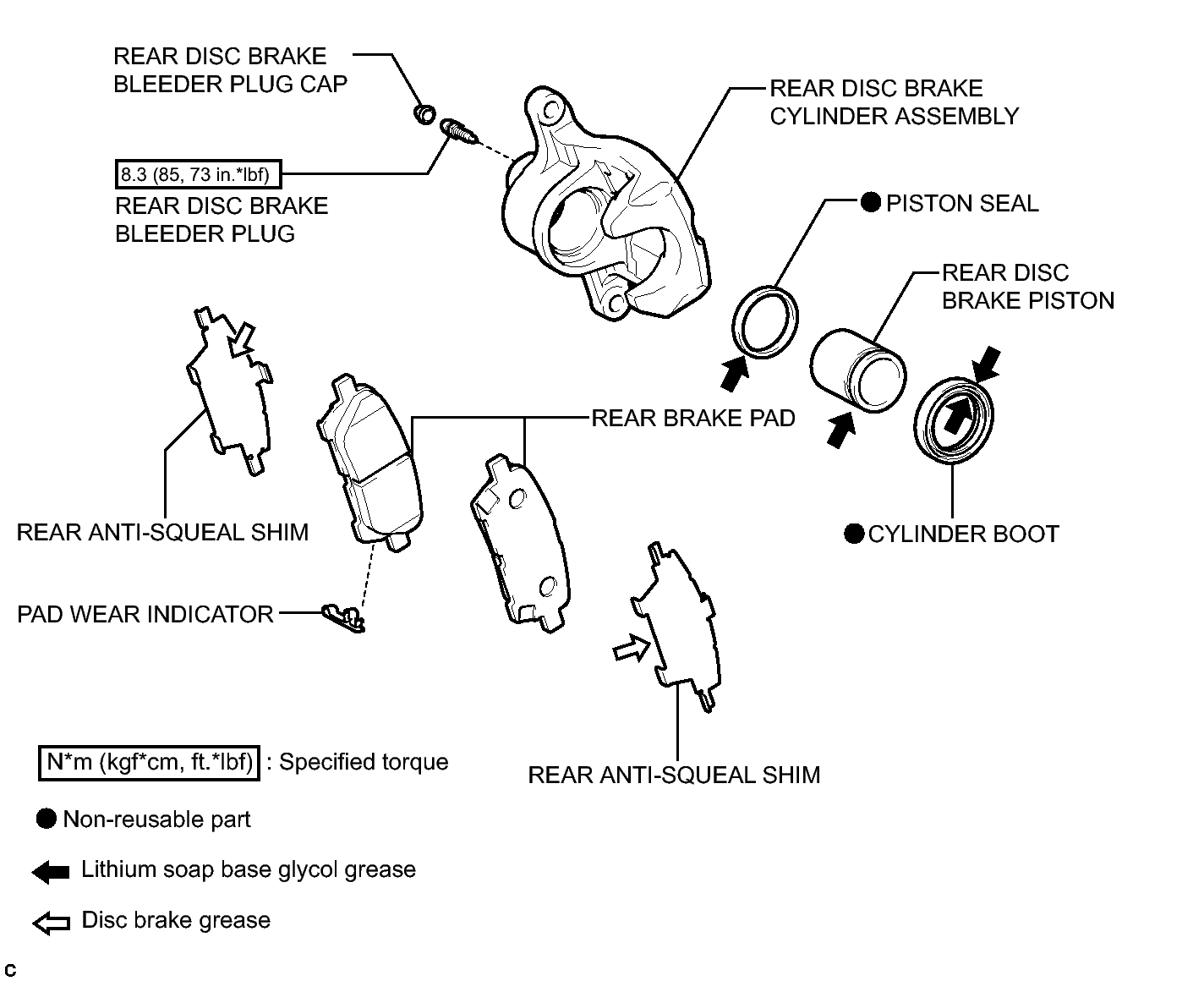

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 of 2)
GTY295290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
