Front Brake: Components: Illustration

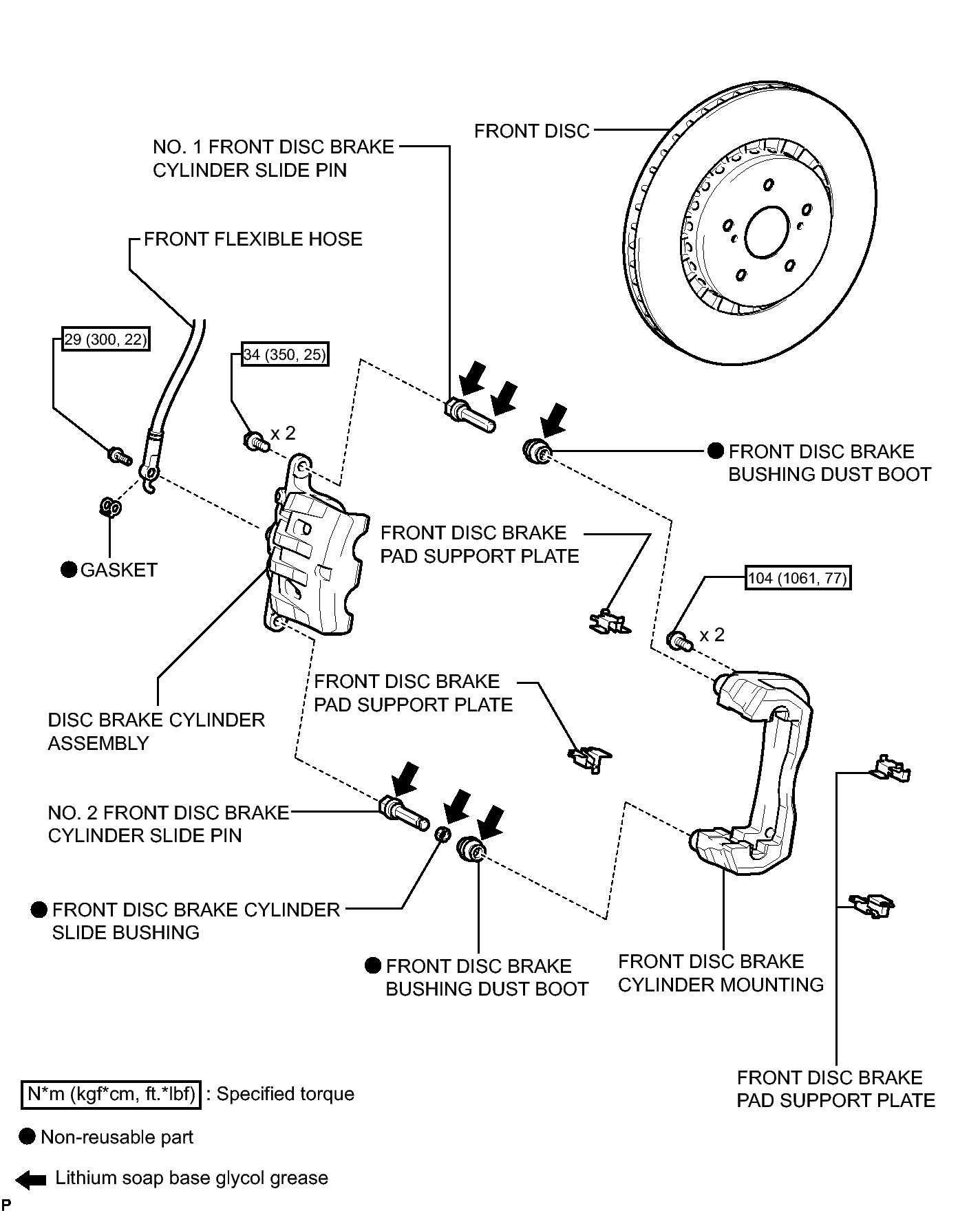

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (1 of 2)
GTY304575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

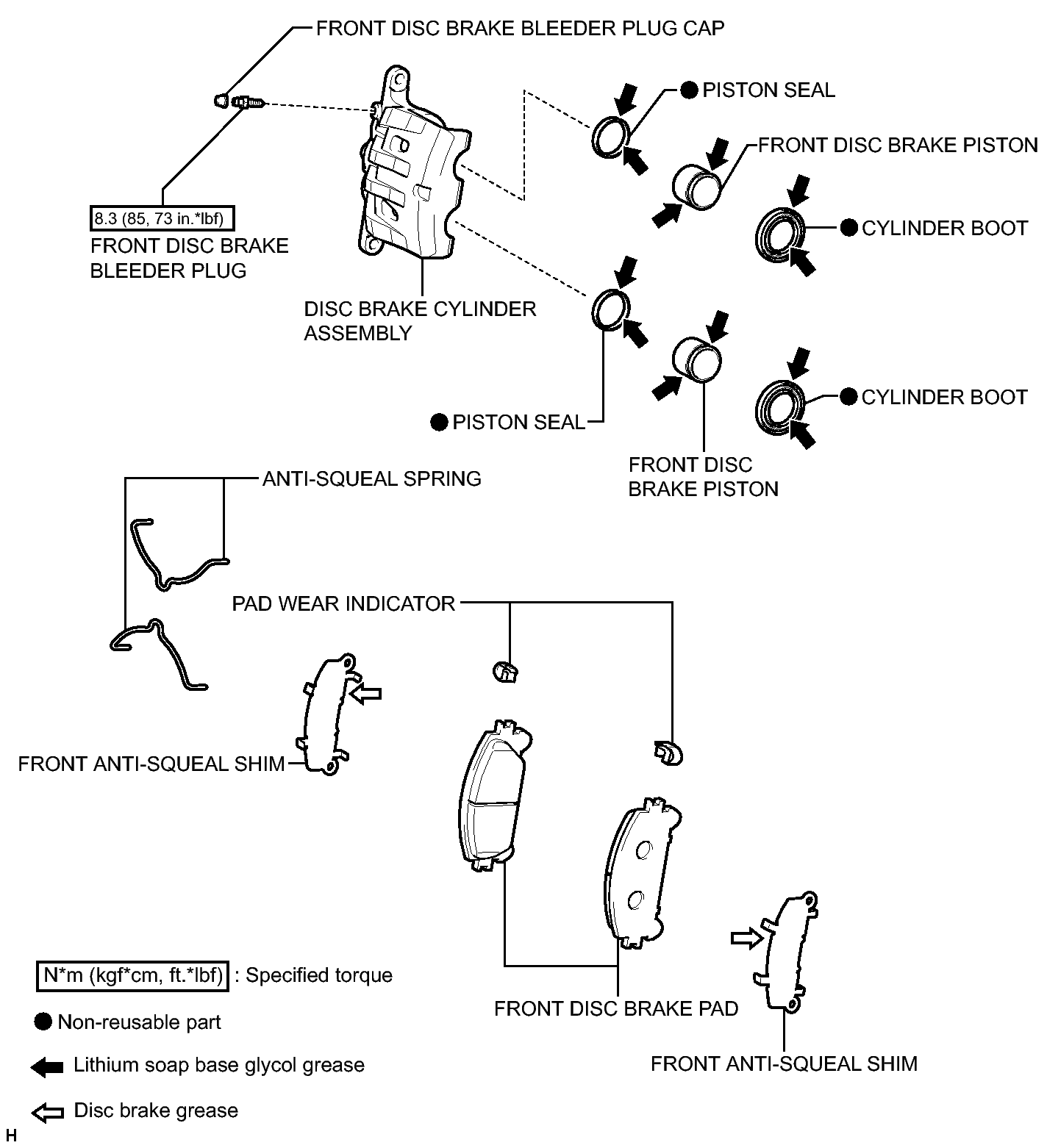

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (2 of 2)
GTY301645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
