Brake Pedal: Components: Illustration

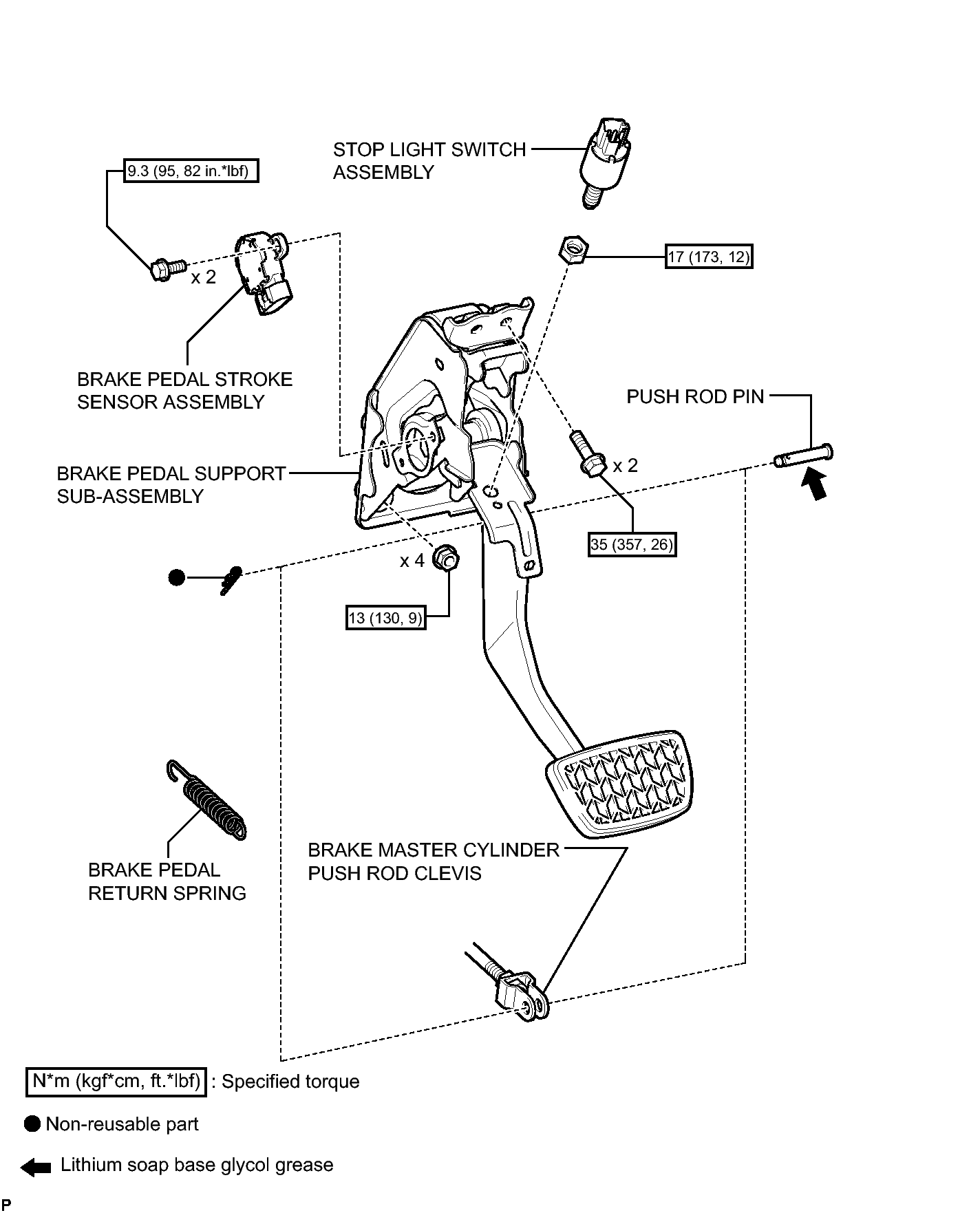

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (1 of 2)
GTY295255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

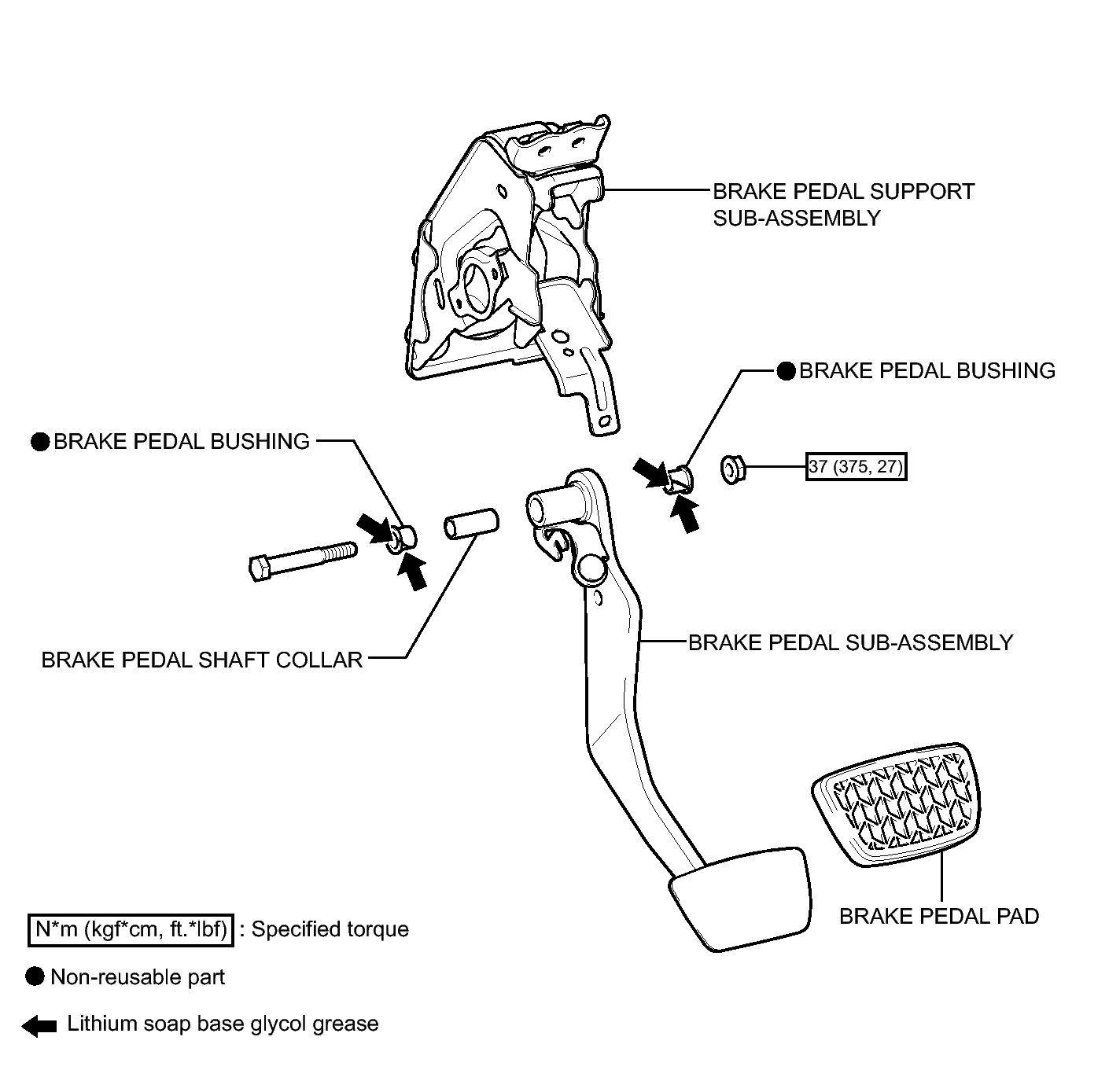

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 of 2)
GTY304160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
