Brake Master Cylinder: Components: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

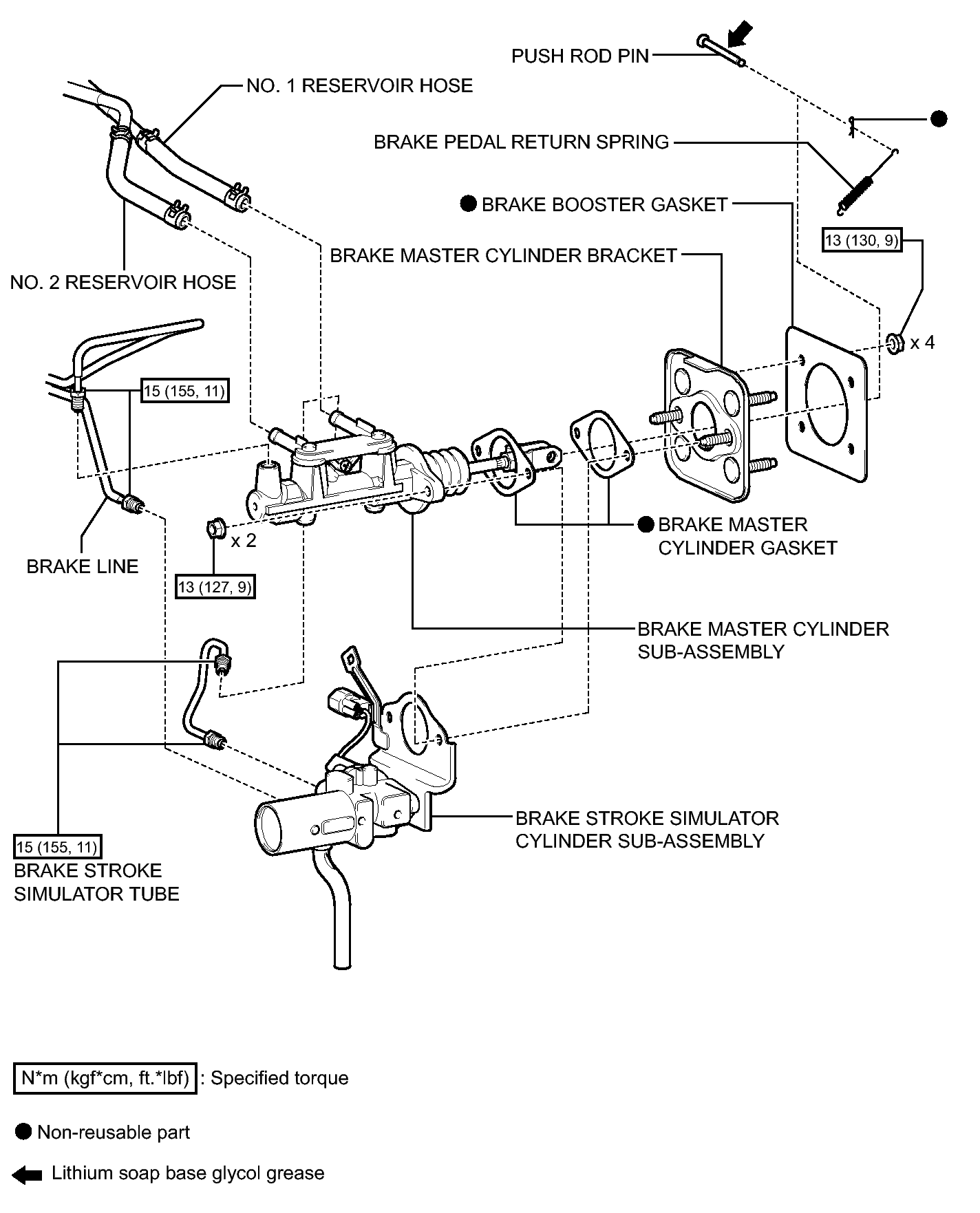

Fig 1: Identifying Brake Master Cylinder Replacement Components (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

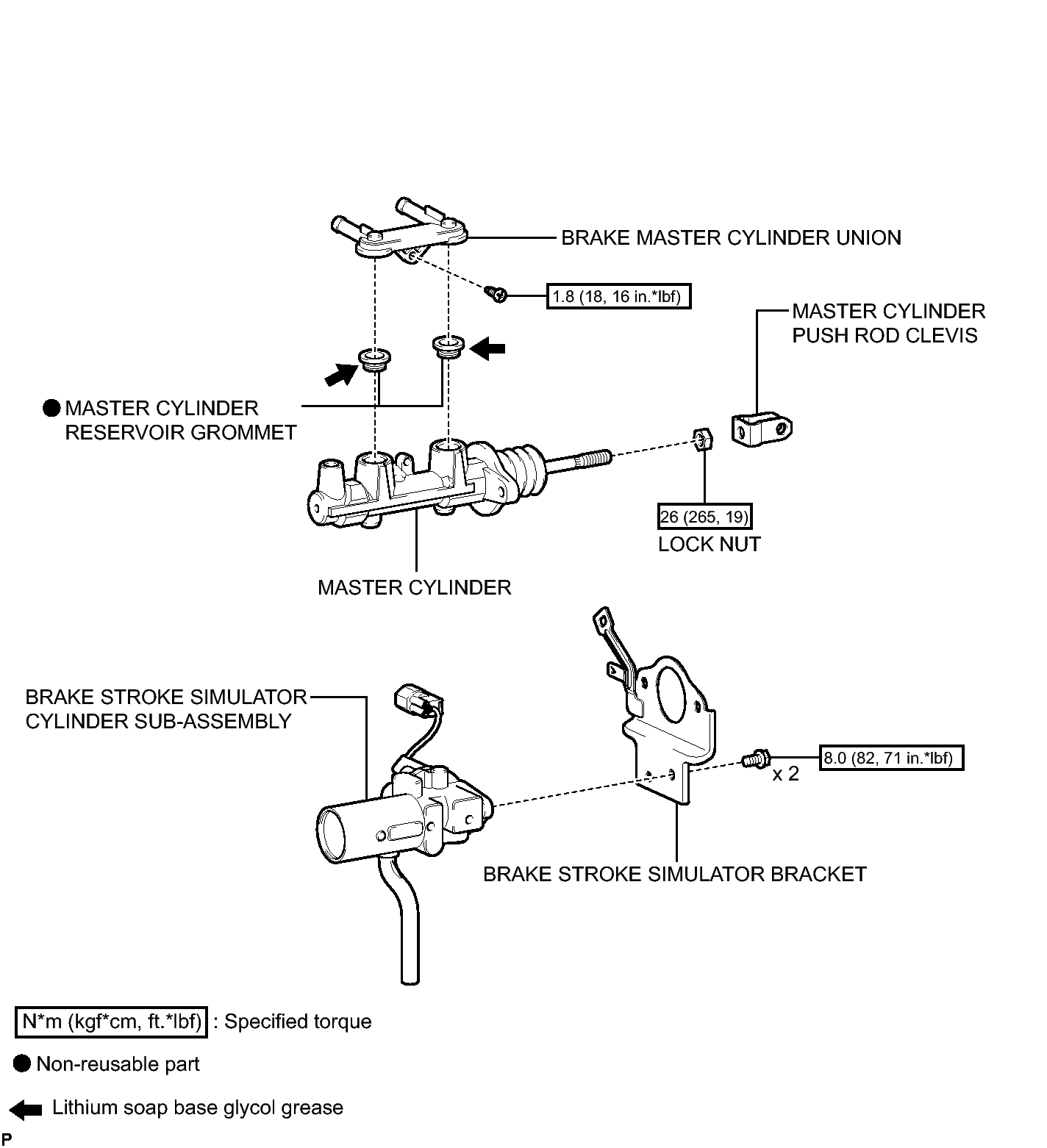

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (5 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
