Fuel Lid Opener does not Operate: Wiring Diagram

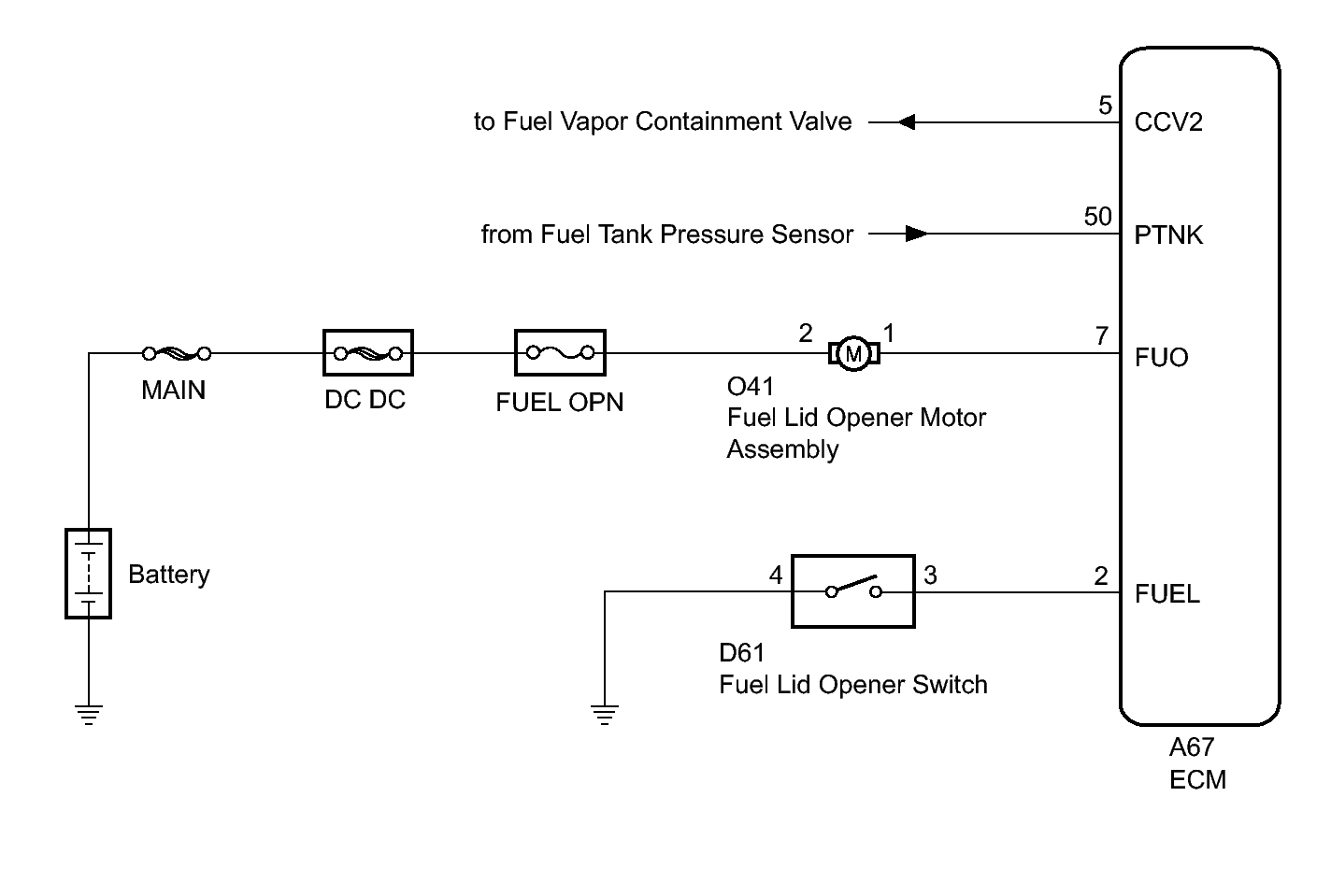

Fig 1: Identifying Fuel Lid Opener Switch Wiring Diagram

GTY298729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
