"CLOSE FUEL LID" Remains Displayed at Multi-information Display: Wiring Diagram

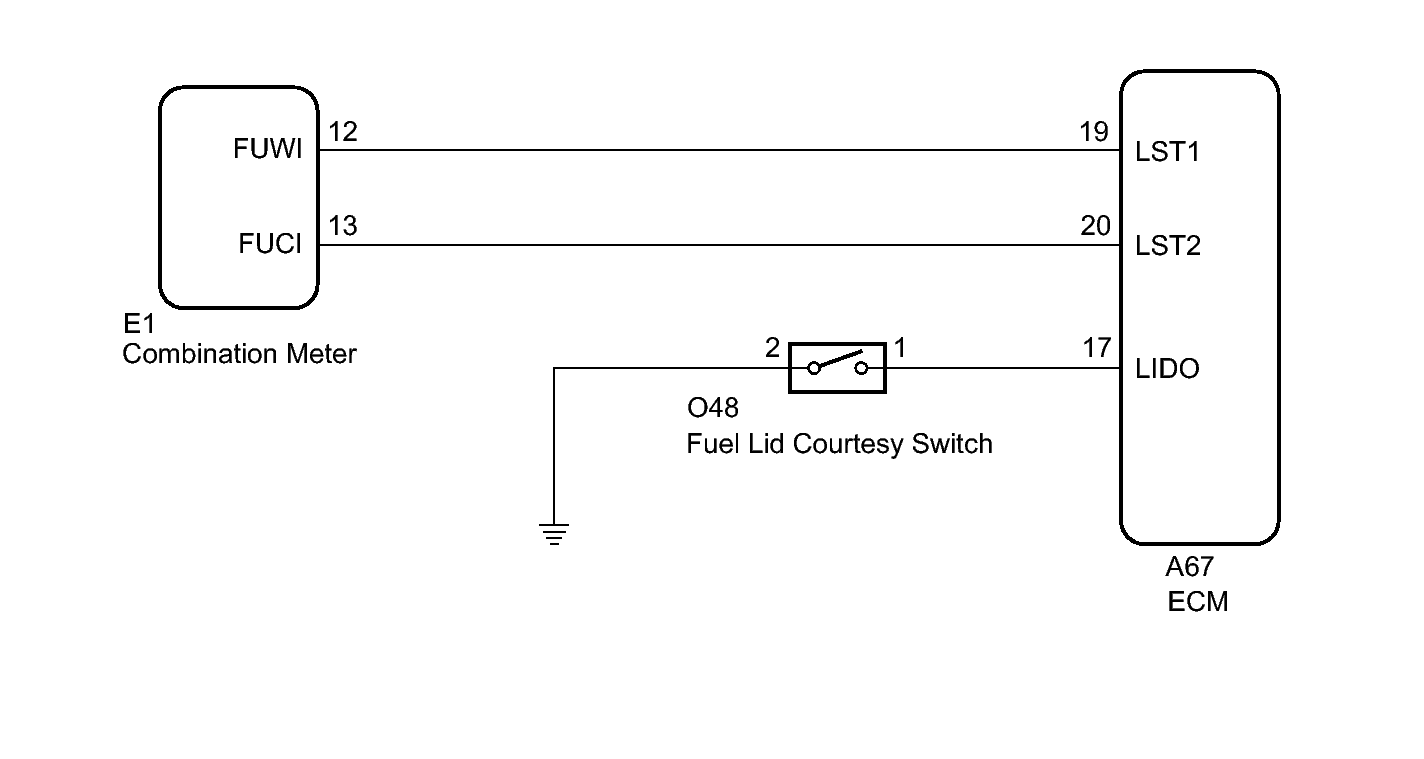

Fig 1: Identifying Combination Meter Wiring Diagram

GTY295667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
