"CLOSE FUEL LID" Remains Displayed at Multi-information Display: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List.
5. Read the Data List according to the display on the Techstream.
   ENGINE AND ECT:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Lid	Fuel lid courtesy switch status: ON or OFF	ON: Fuel lid is opened OFF: Fuel lid is closed	-

   OK

   On the Techstream screen, the item changes between ON and OFF according to the chart above.

NG → See step   4

OK: Go to next step

1. Disconnect the ECM connector.

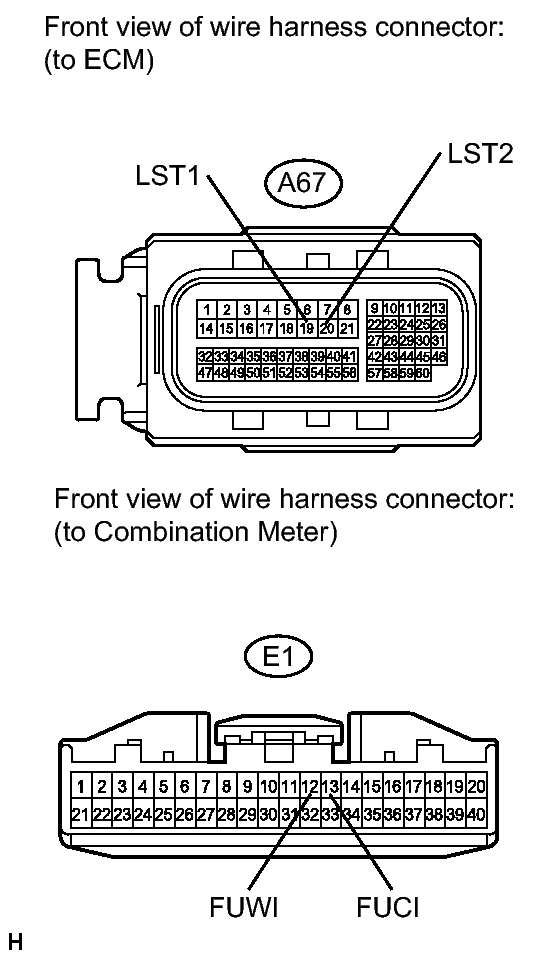

   Fig 1: Identifying ECM Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the combination meter connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   A67-19 (LST1) - E1-12 (FUWI)	Always	Below 1 Ω
   A67-20 (LST2) - E1-13 (FUCI)	Always	Below 1 Ω
   A67-19 (LST1) - Body ground	Always	10 kΩ or higher
   A67-20 (LST2) - Body ground	Always	10 kΩ or higher

4. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   A67-19 (LST1) - Body ground	Ignition switch ON	Below 1 V
   A67-20 (LST2) - Body ground	Ignition switch ON	Below 1 V

   NOTE:

   Turning the ignition switch ON with the ECM connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the multi-information display when the fuel lid is closed.

   OK

   "CLOSE FUEL LID" is not displayed on the multi-information display.

NG → See step   8

OK → END (ECM IS DEFECTIVE)

1. Remove the fuel lid courtesy switch. Refer to REMOVAL .
   Fig 2: Identifying Fuel Lid Courtesy Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Courtesy switch free (fuel lid open)	10 kΩ or higher
   1 - 2	Courtesy switch pushed (fuel lid closed)	Below 1 Ω

NG → See step   9

OK: Go to next step

1. Disconnect the fuel lid courtesy switch connector.

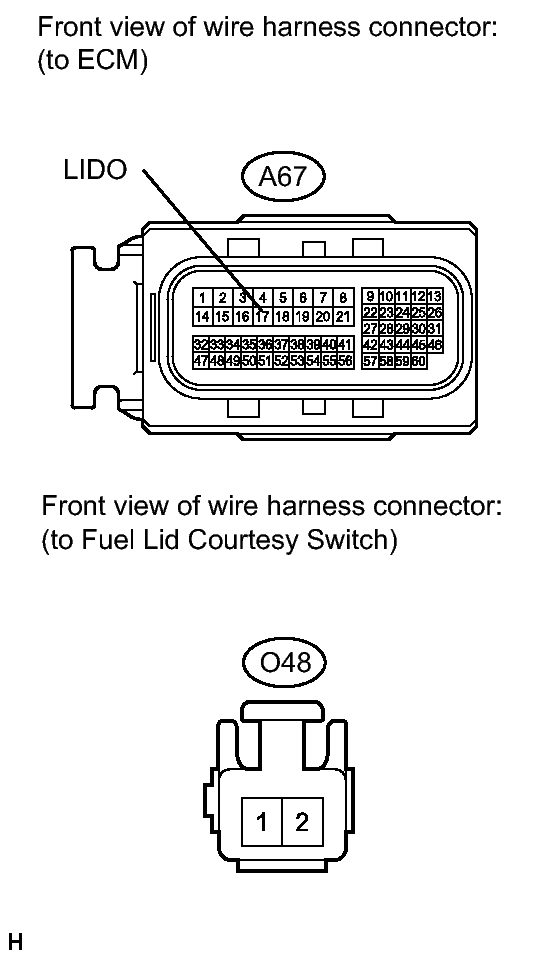

   Fig 3: Identifying Fuel Lid Courtesy Switch Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   A67-17 (LIDO) - O48-1	Always	Below 1 Ω
   A67-17 (LIDO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.
   Fig 4: Identifying Fuel Lid Courtesy Switch Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O48-2 - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
