Rear Spoiler: Components: Illustration

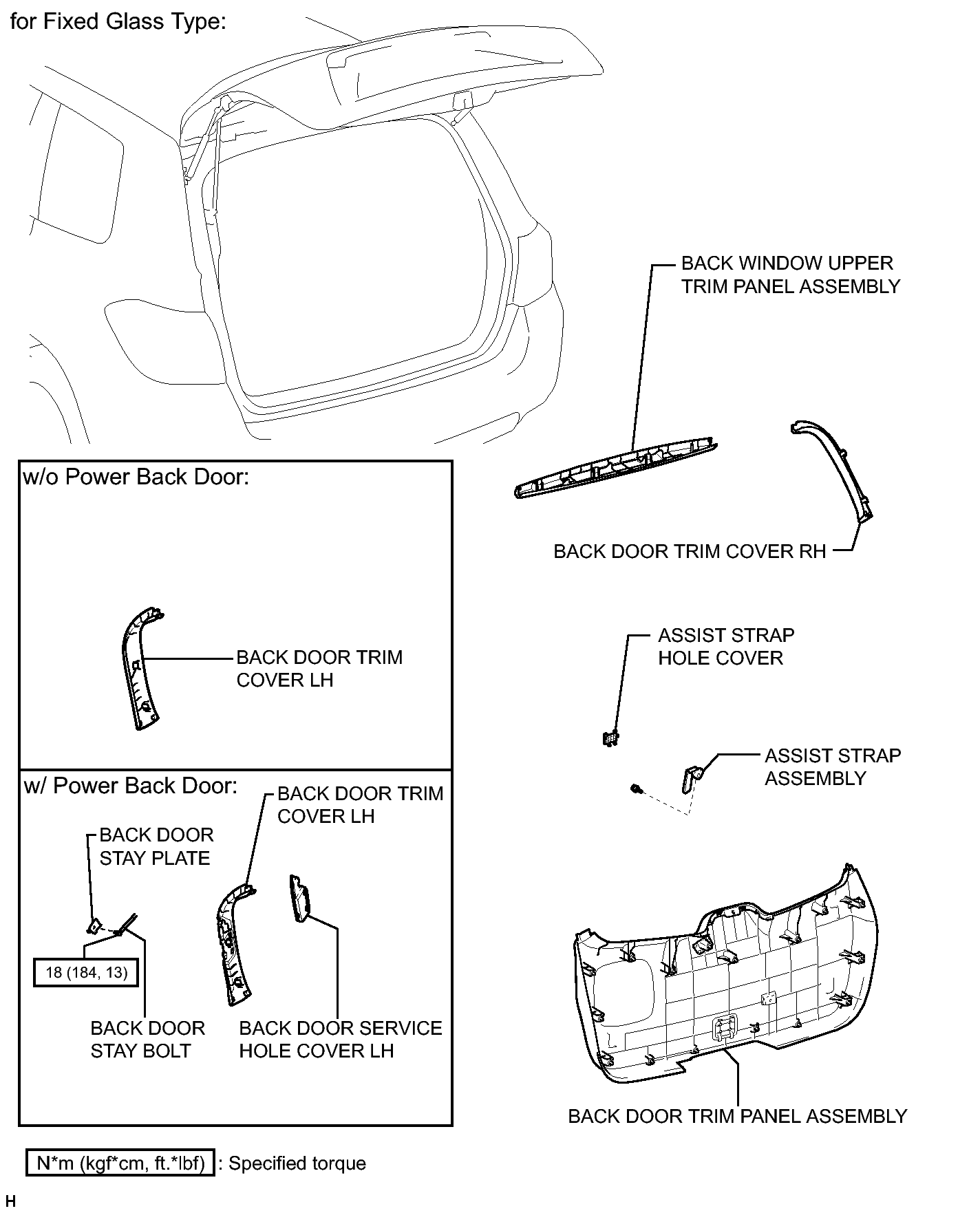

Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (1 of 4)
GTY303976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (2 of 4)
GTY294655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

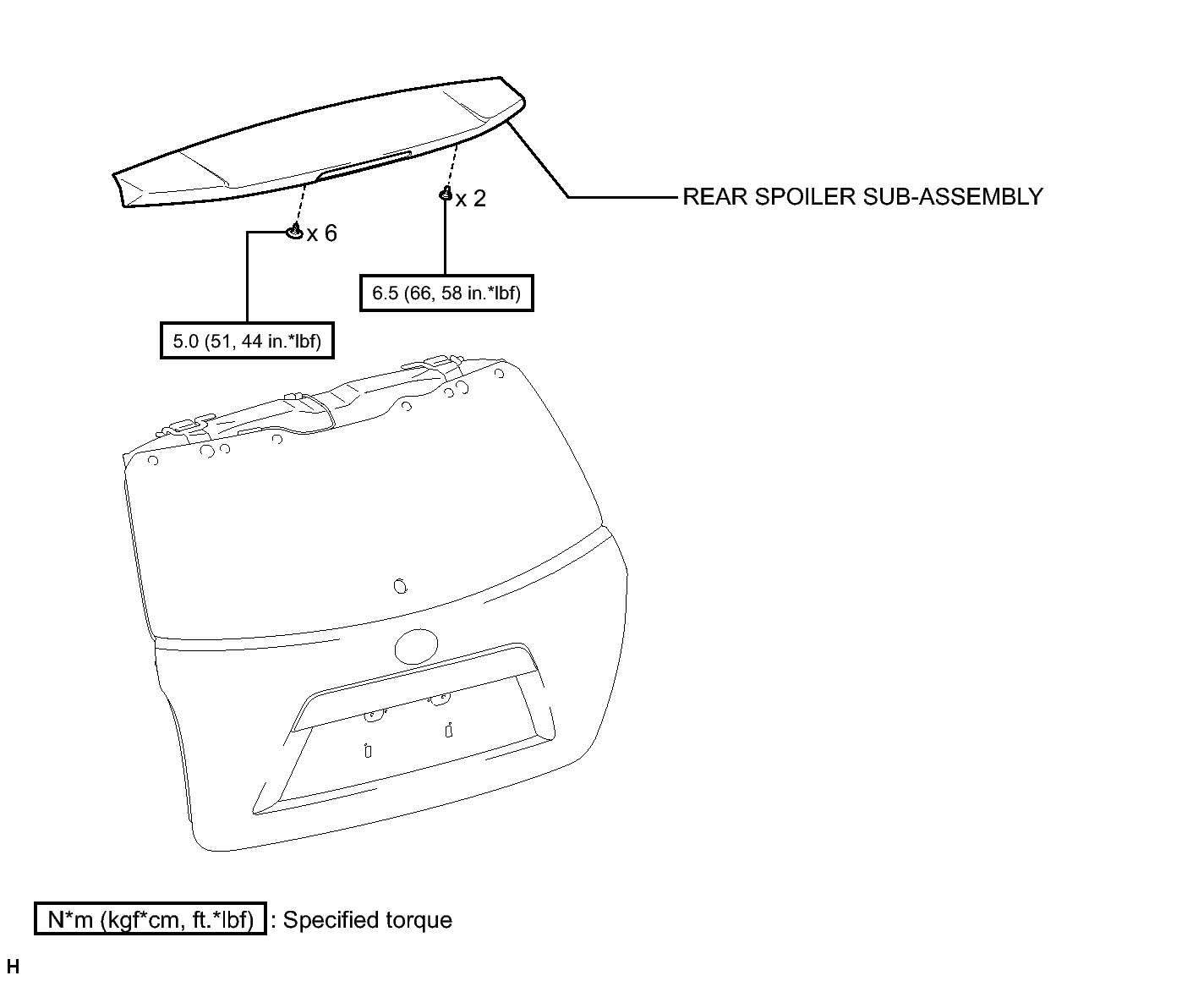

Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (3 of 4)
GTY297519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Spoiler Replacement Components (4 of 4)
GTY299804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
