Rear Bumper: Components: Illustration

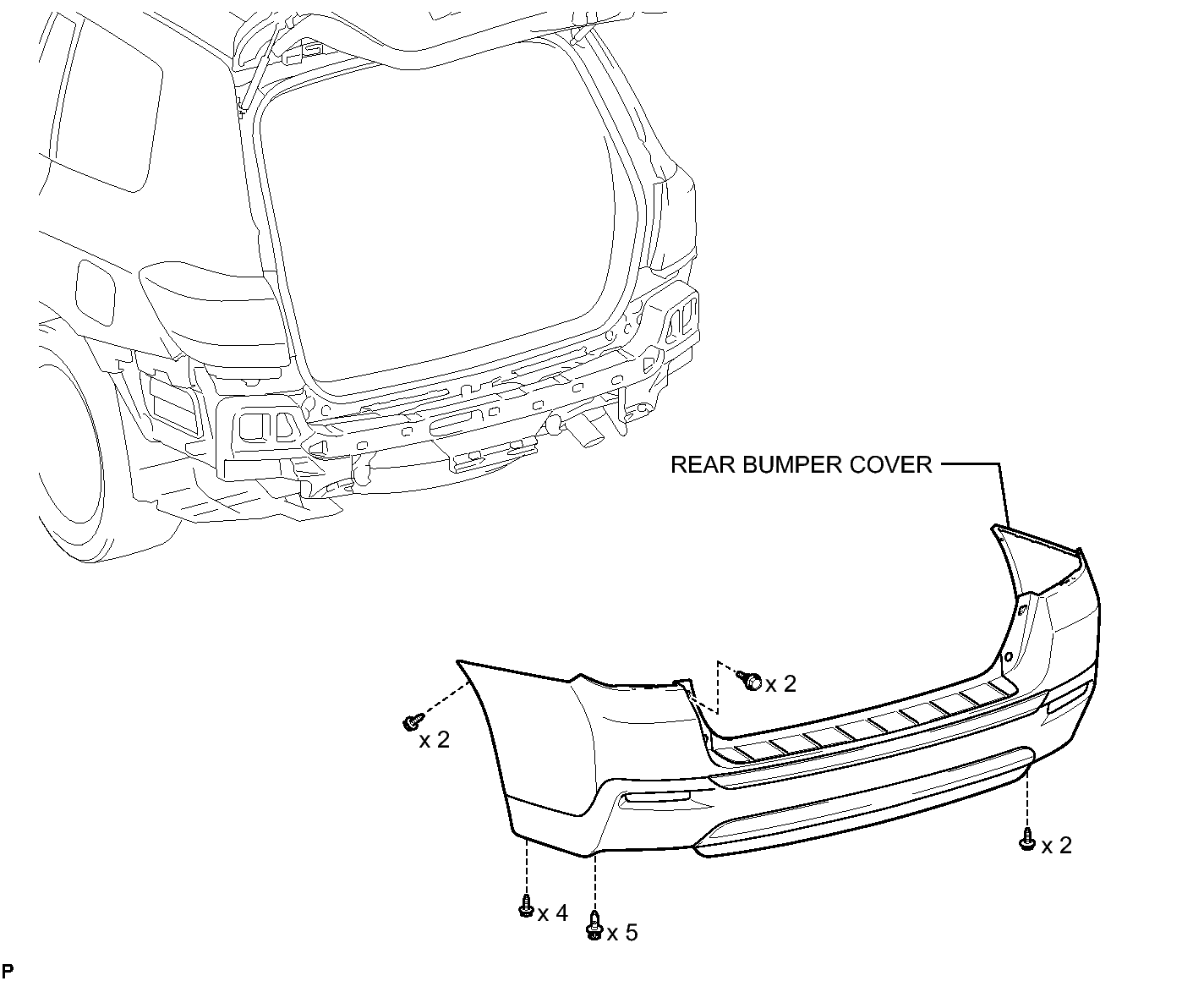

Fig 1: Identifying Rear Bumper Replacement Components (1 of 3)
GTY303155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

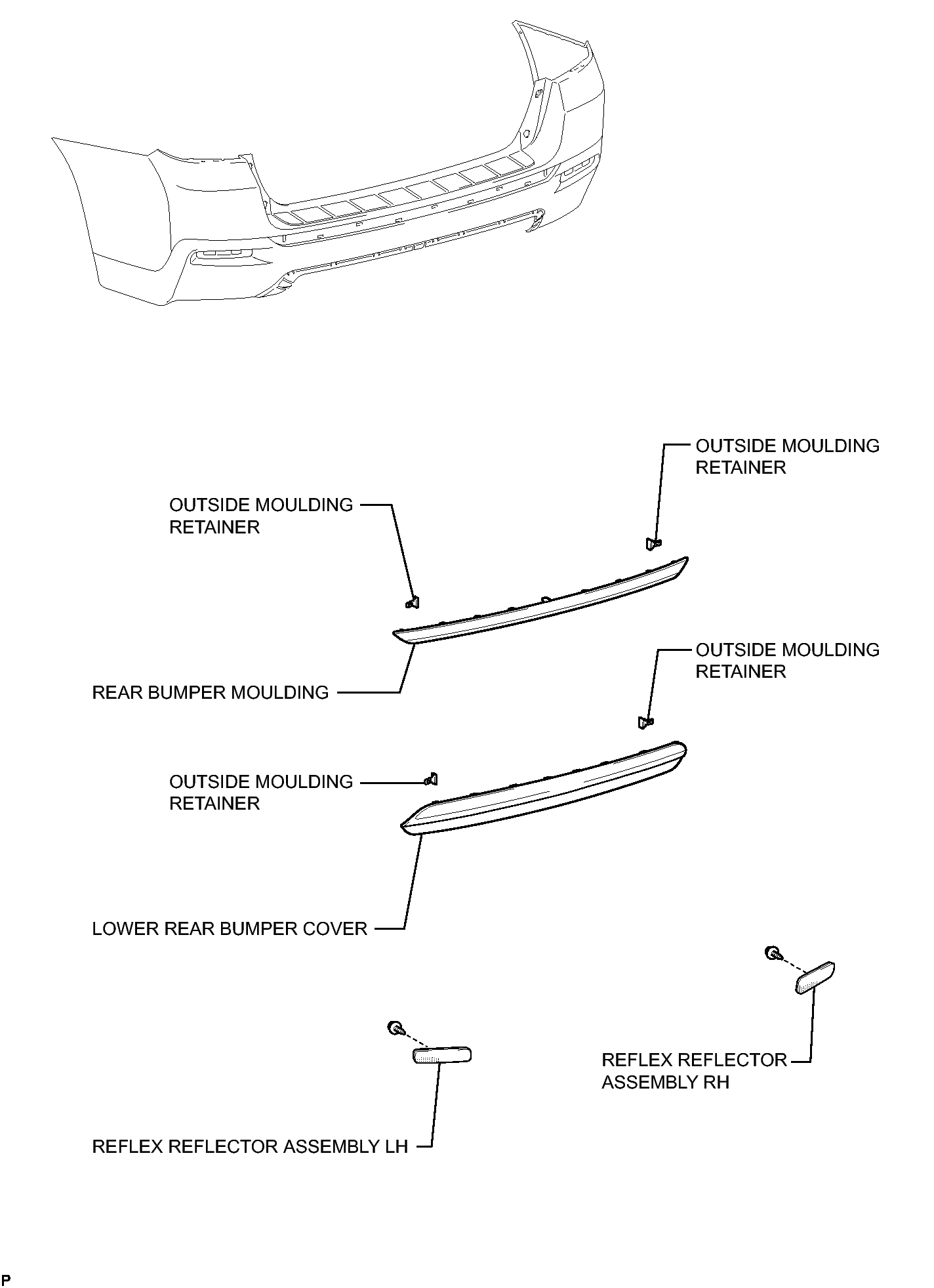

Fig 1: Identifying Rear Bumper Replacement Components (2 of 3)
GTY300403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

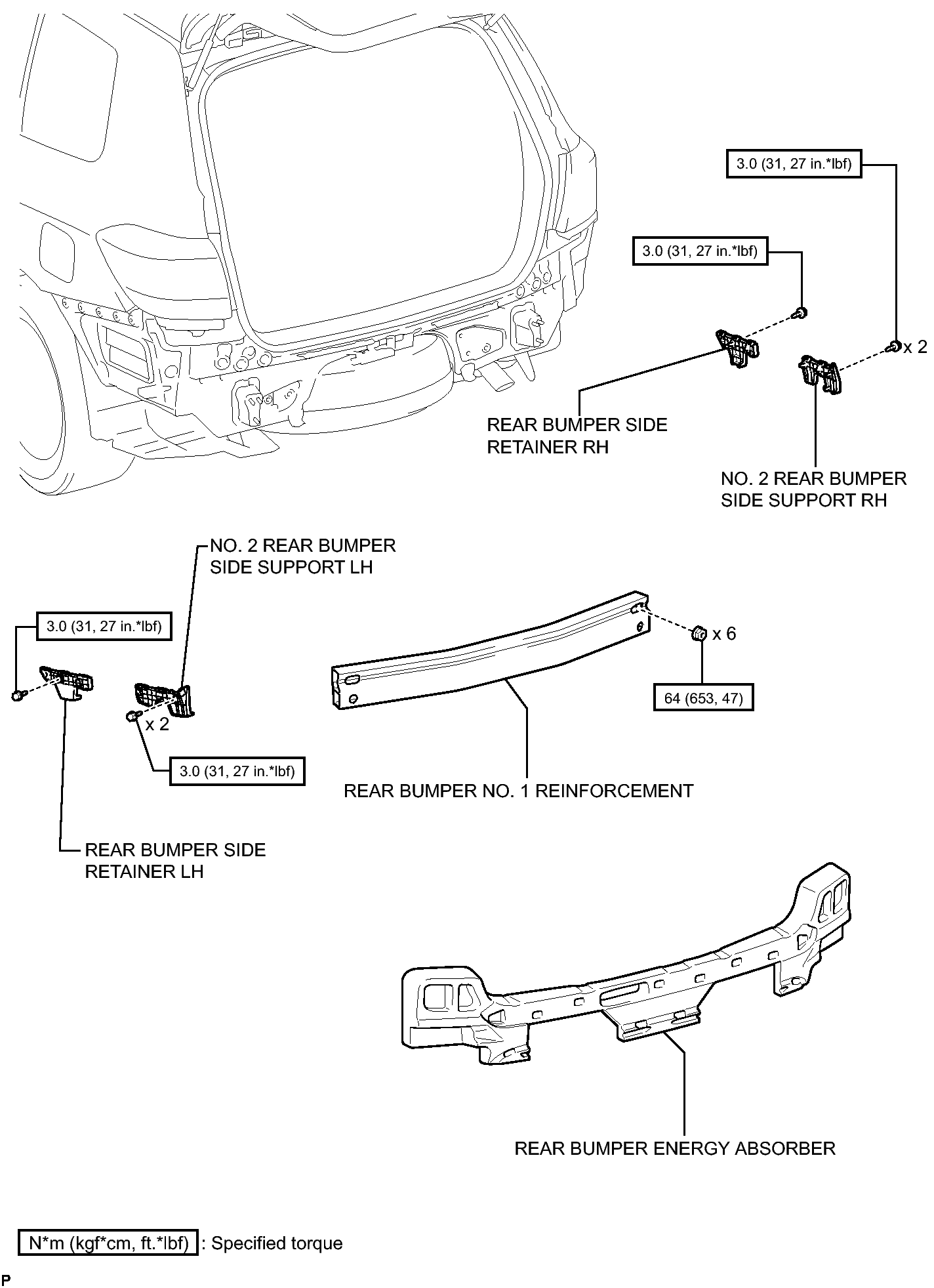

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (3 of 3)
GTY306112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
