Radiator Grille: Components: Illustration

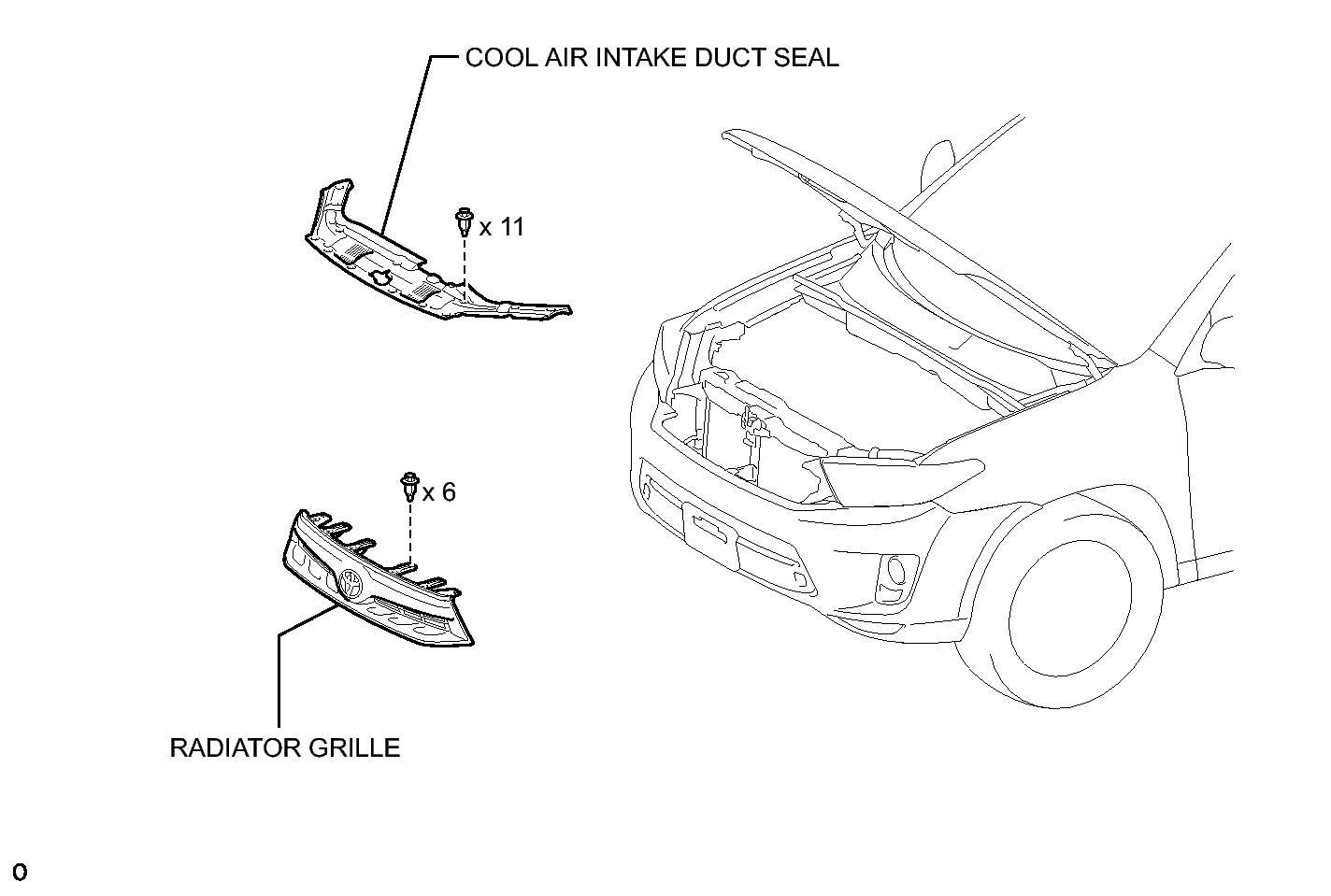

Fig 1: Identifying Radiator Grille Replacement Components (1 of 2)
GTY306784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

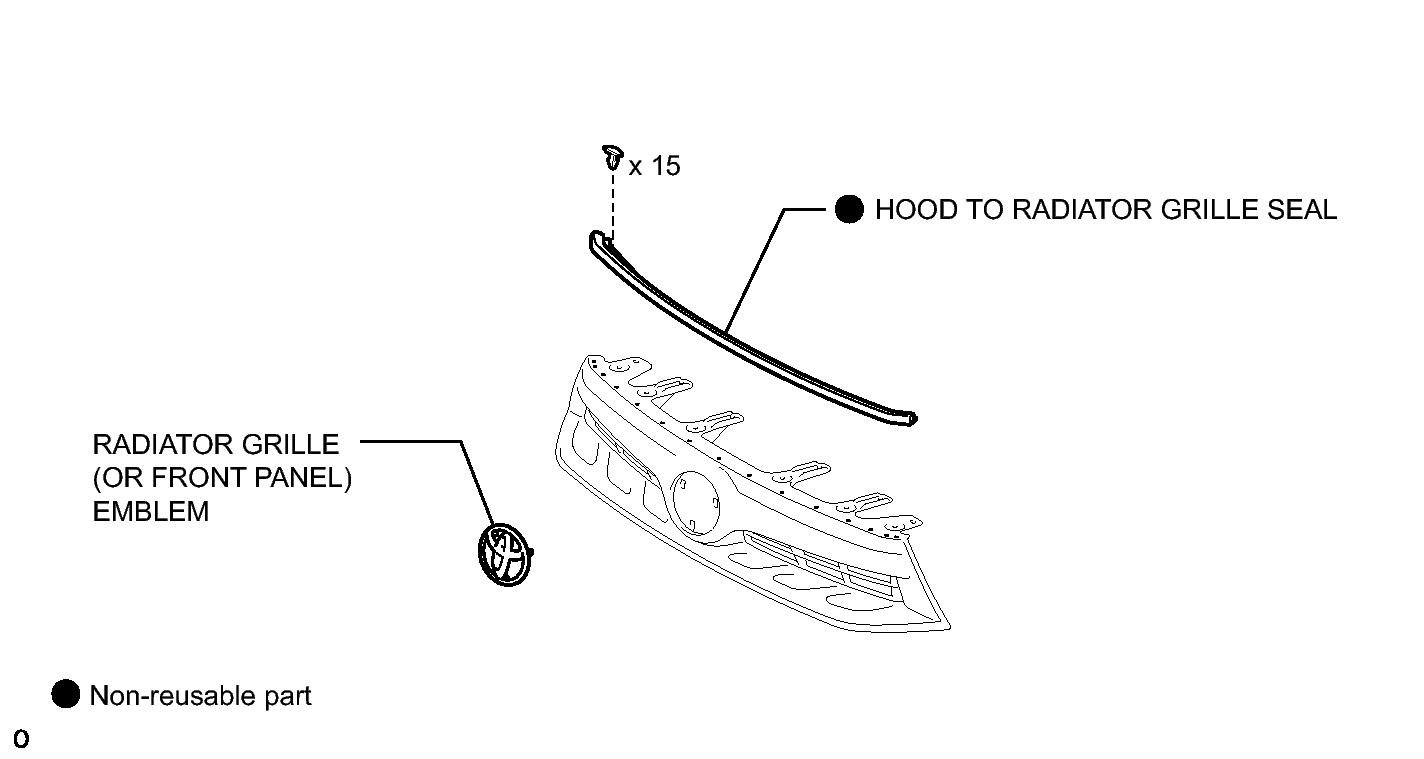

Fig 1: Identifying Radiator Grille Replacement Components (2 of 2)
GTY297091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
