Front Door Belt Moulding: Components: Illustration

Fig 1: Identifying Front Door Belt Moulding Replacement Components (1 of 2)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

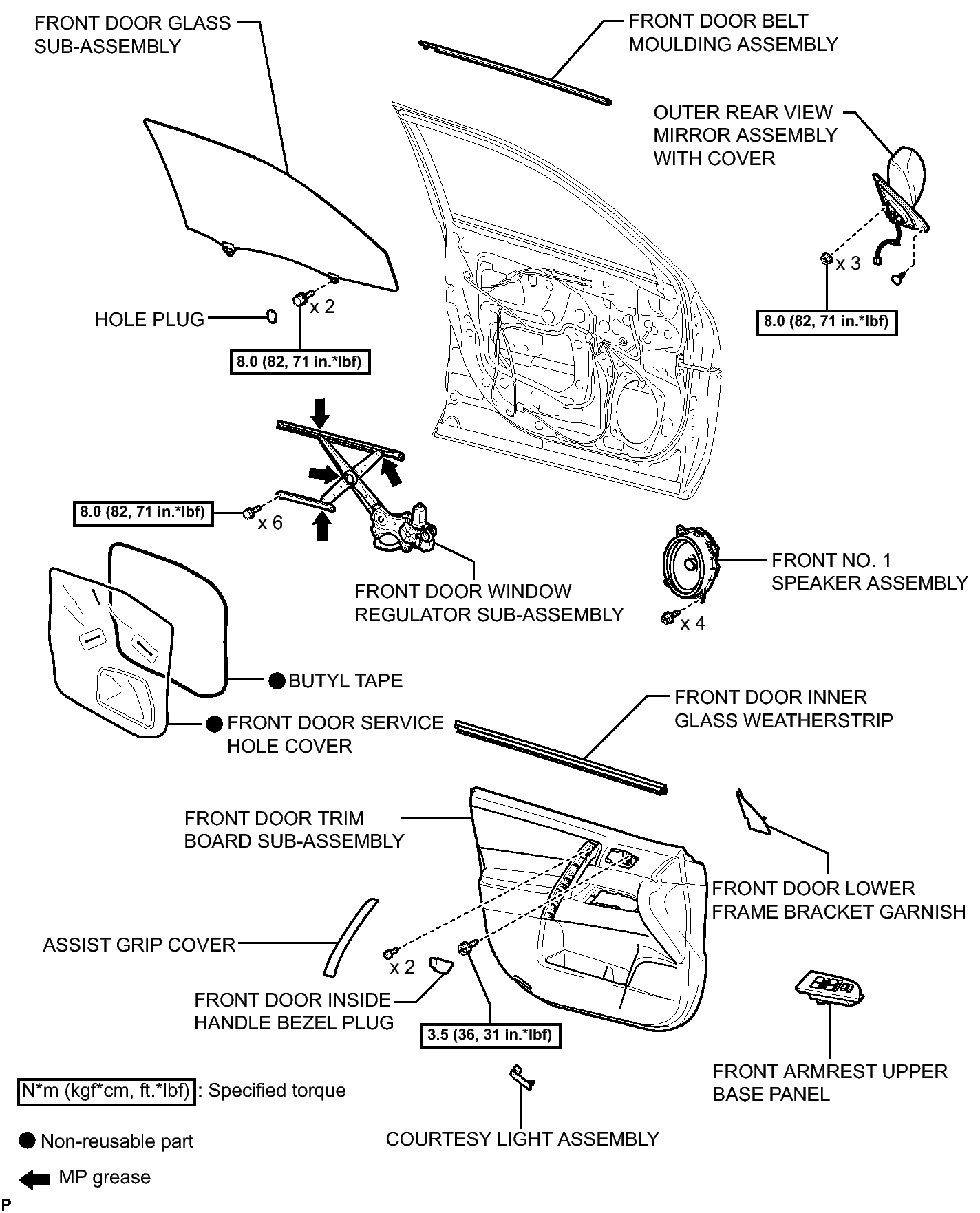

Fig 1: Identifying Front Door Belt Moulding Replacement Components With Torque Specifications (2 of 2)
GTY300007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
