Front Bumper: Components: Illustration

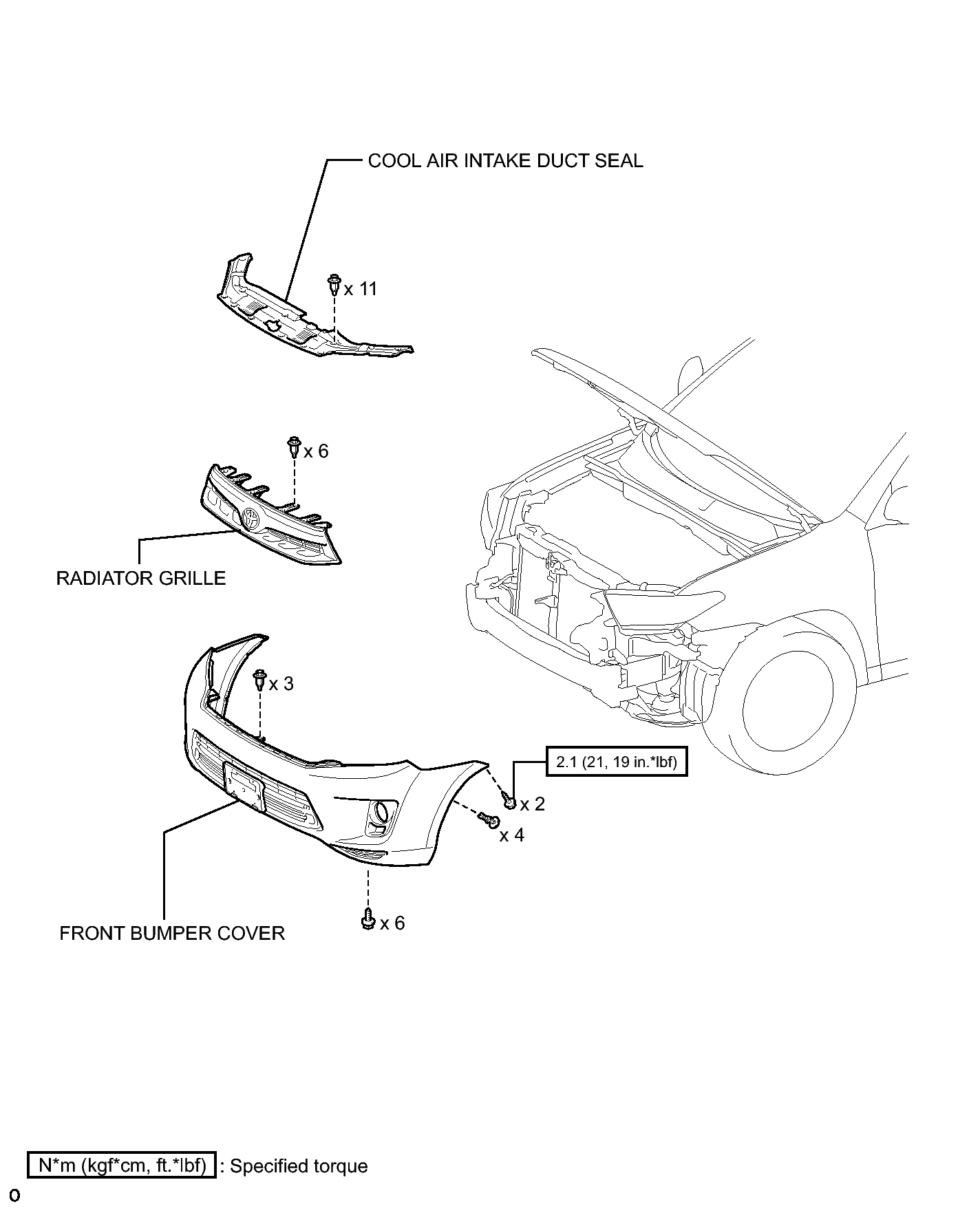

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (1 of 3)
GTY299276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

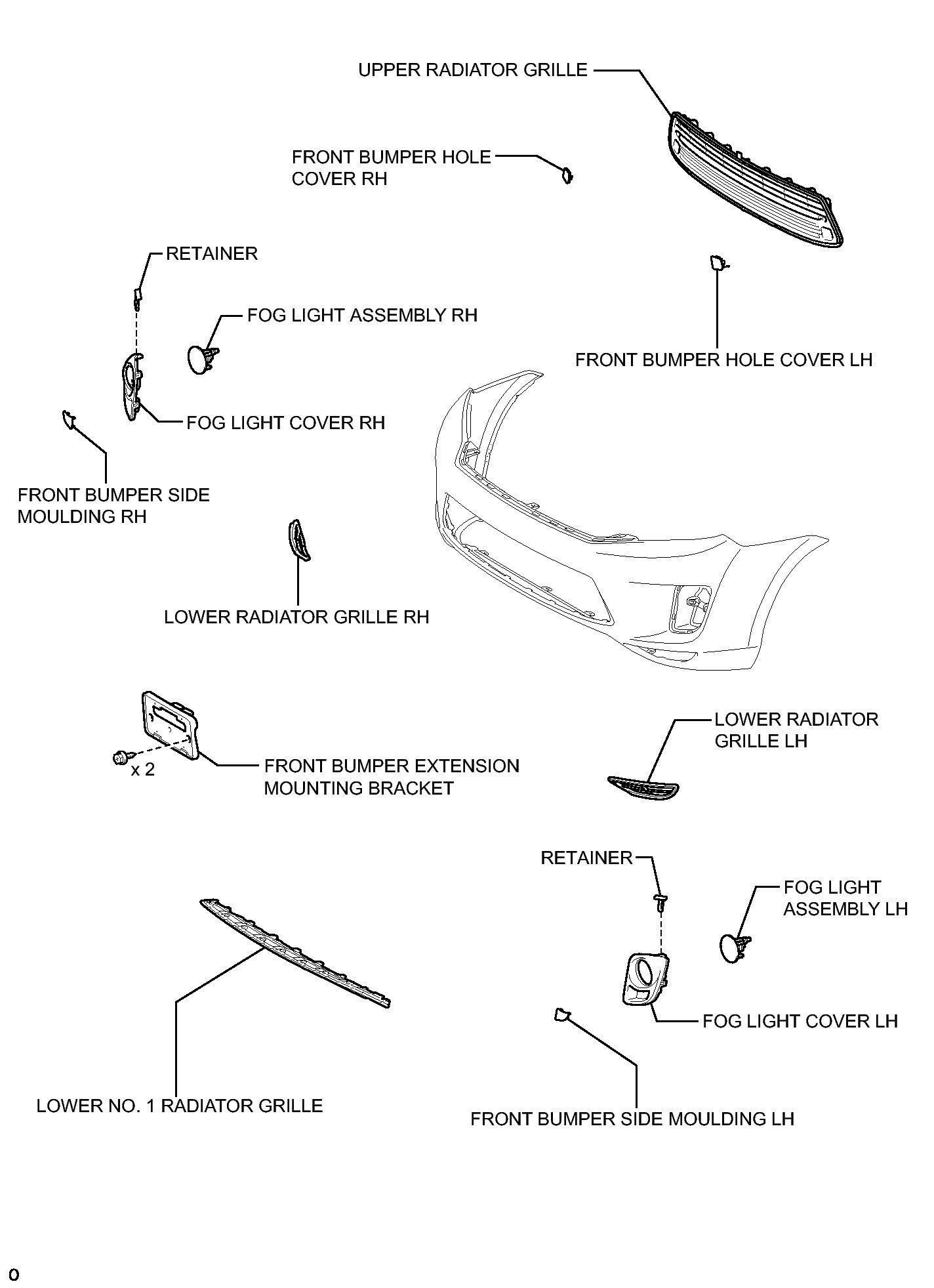

Fig 1: Identifying Front Bumper Replacement Components (2 of 3)
GTY306224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

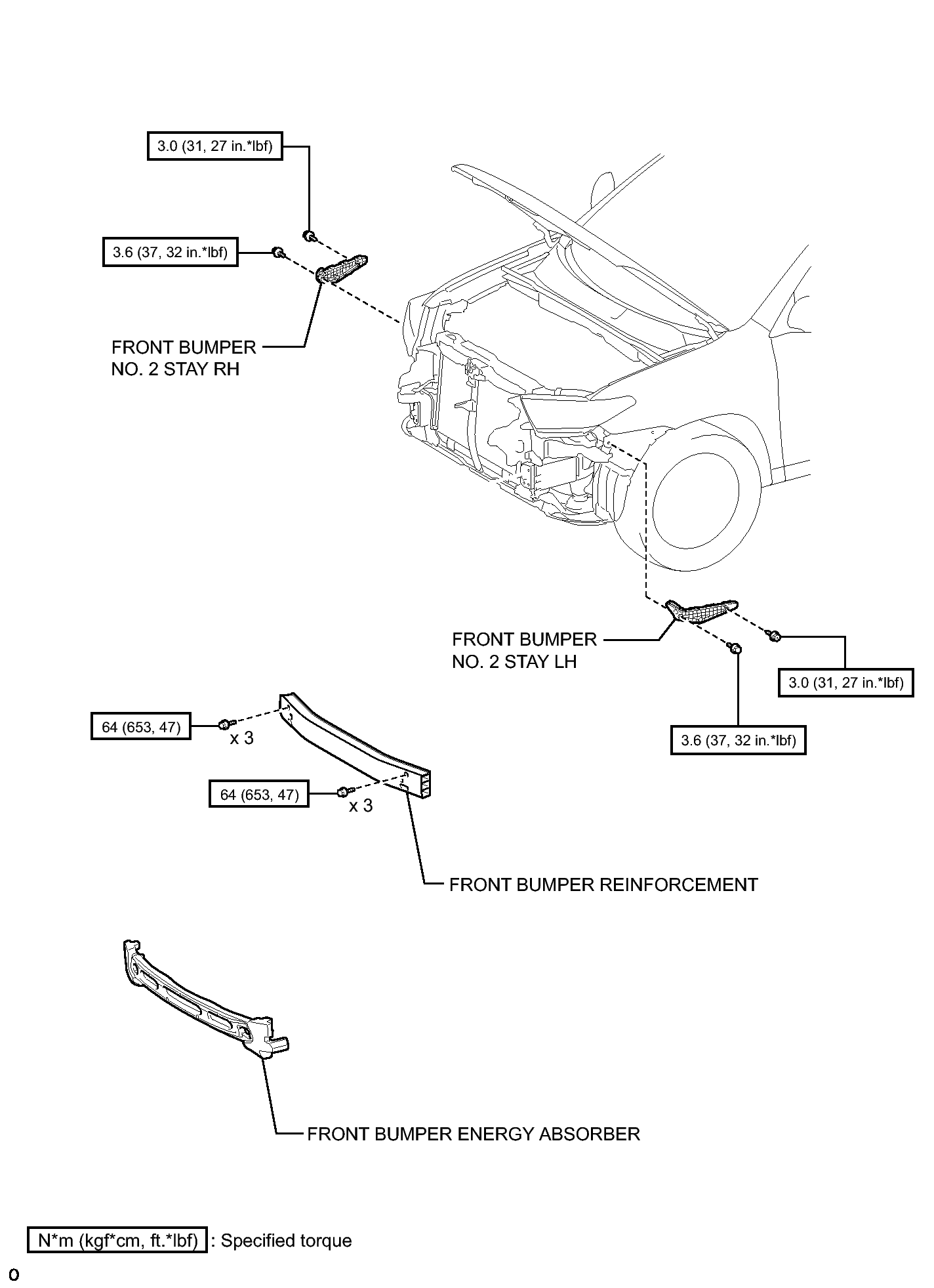

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (3 of 3)
GTY307089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
