FENDER LINER (for Front Side): Components: Illustration

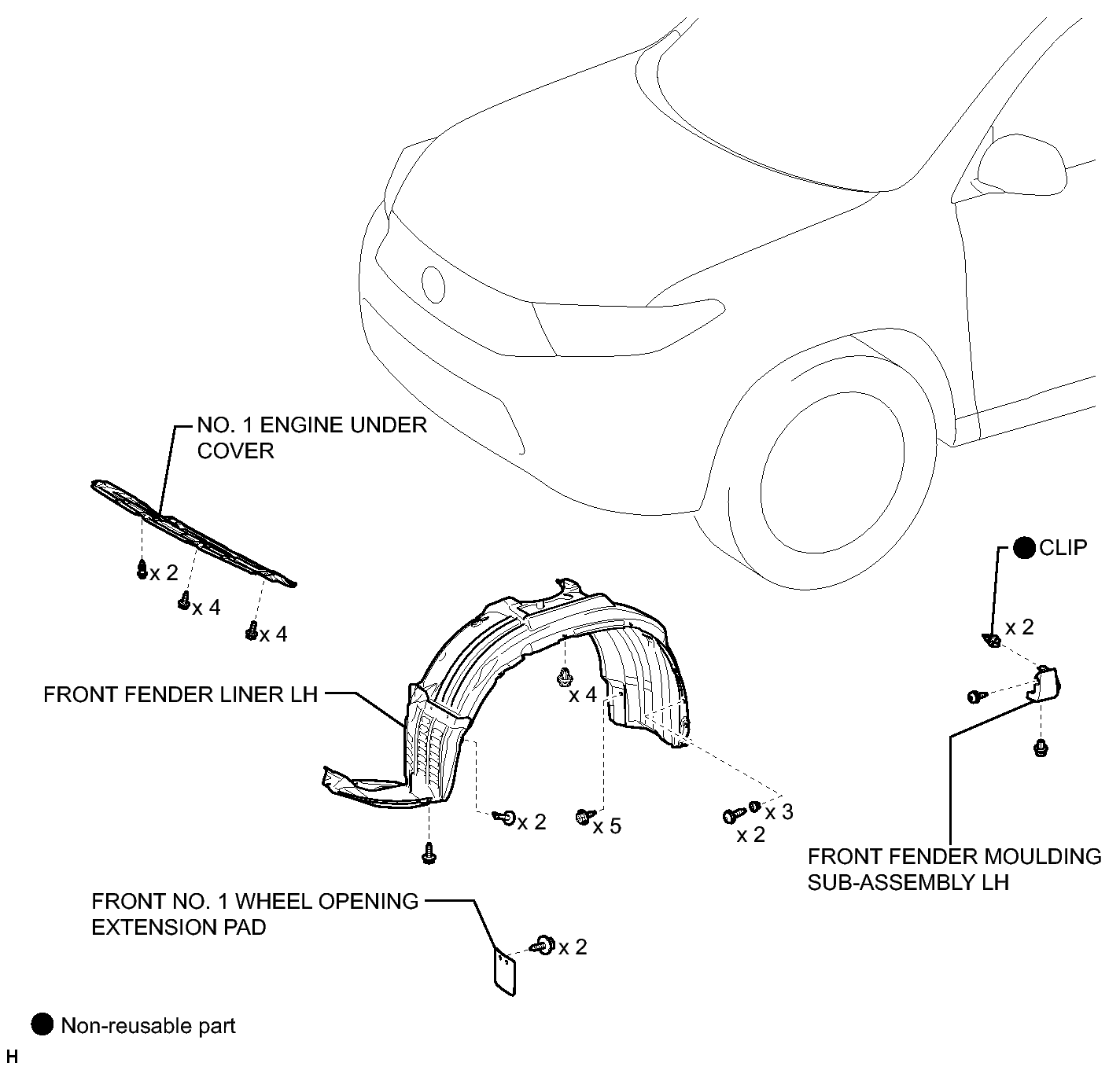

Fig 1: Identifying Fender Liner Replacement Components

GTY302419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
