DTC B2250: Back Door Closer Operation Malfunction: Wiring Diagram

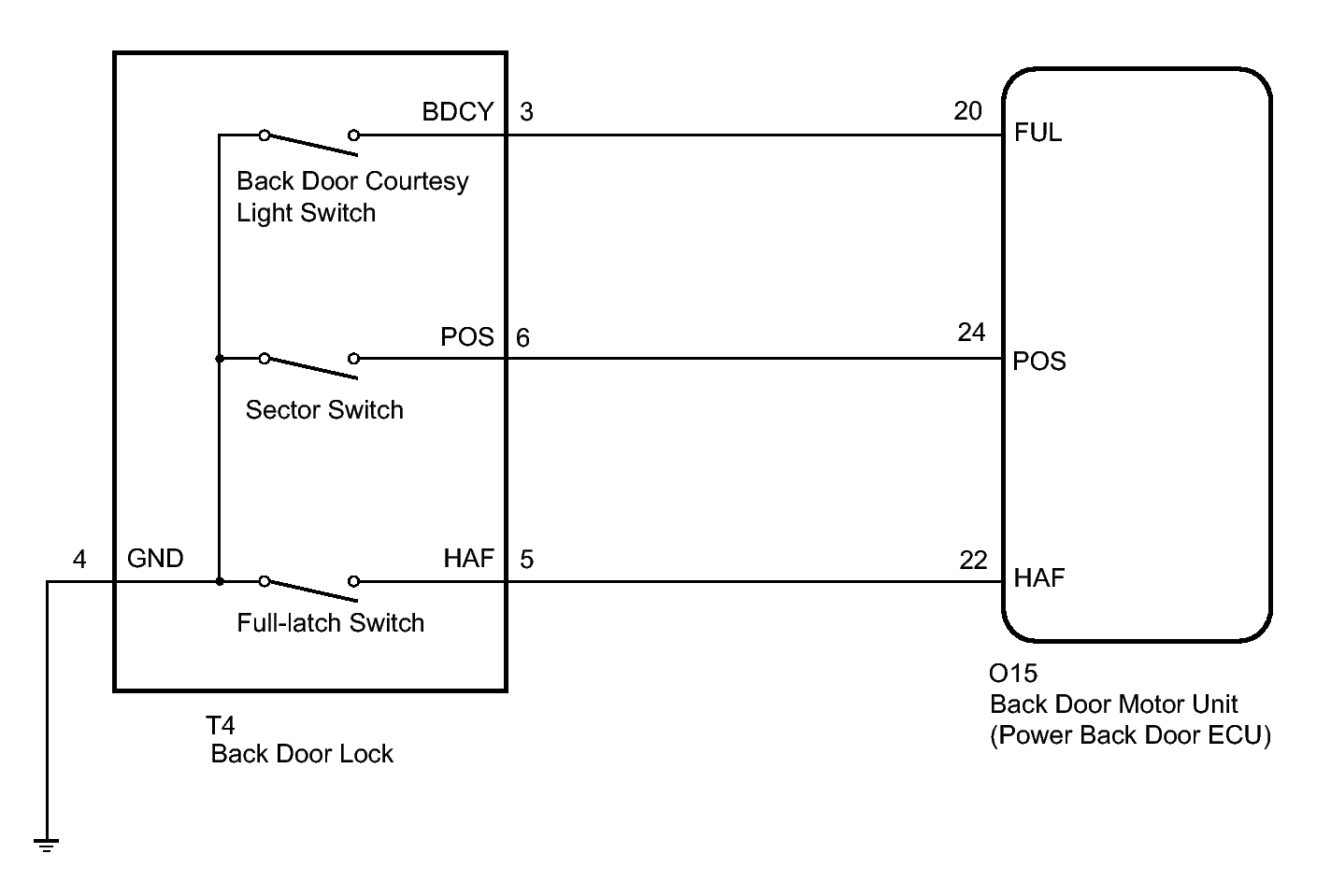

Fig 1: Back Door Lock (Sector Switch) Circuit Wiring Diagram

GTY296503

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
