(Door / Hatch) (Service Information) (Hybrid): Hood: Components: Illustration

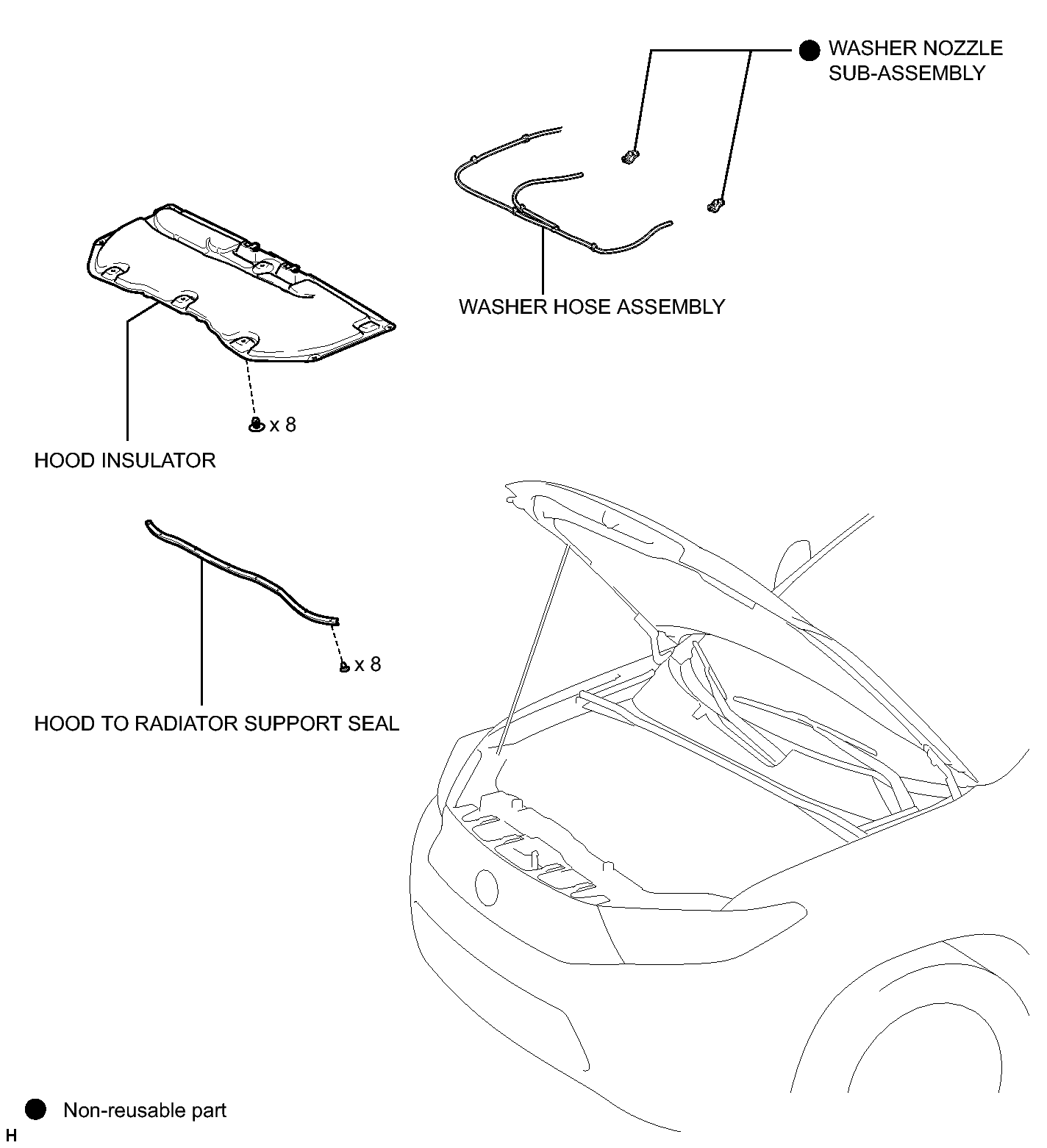

Fig 1: Identifying Hood Replacement Components

GTY294931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
