Hood Lock Control Cable Assembly: Components: Illustration

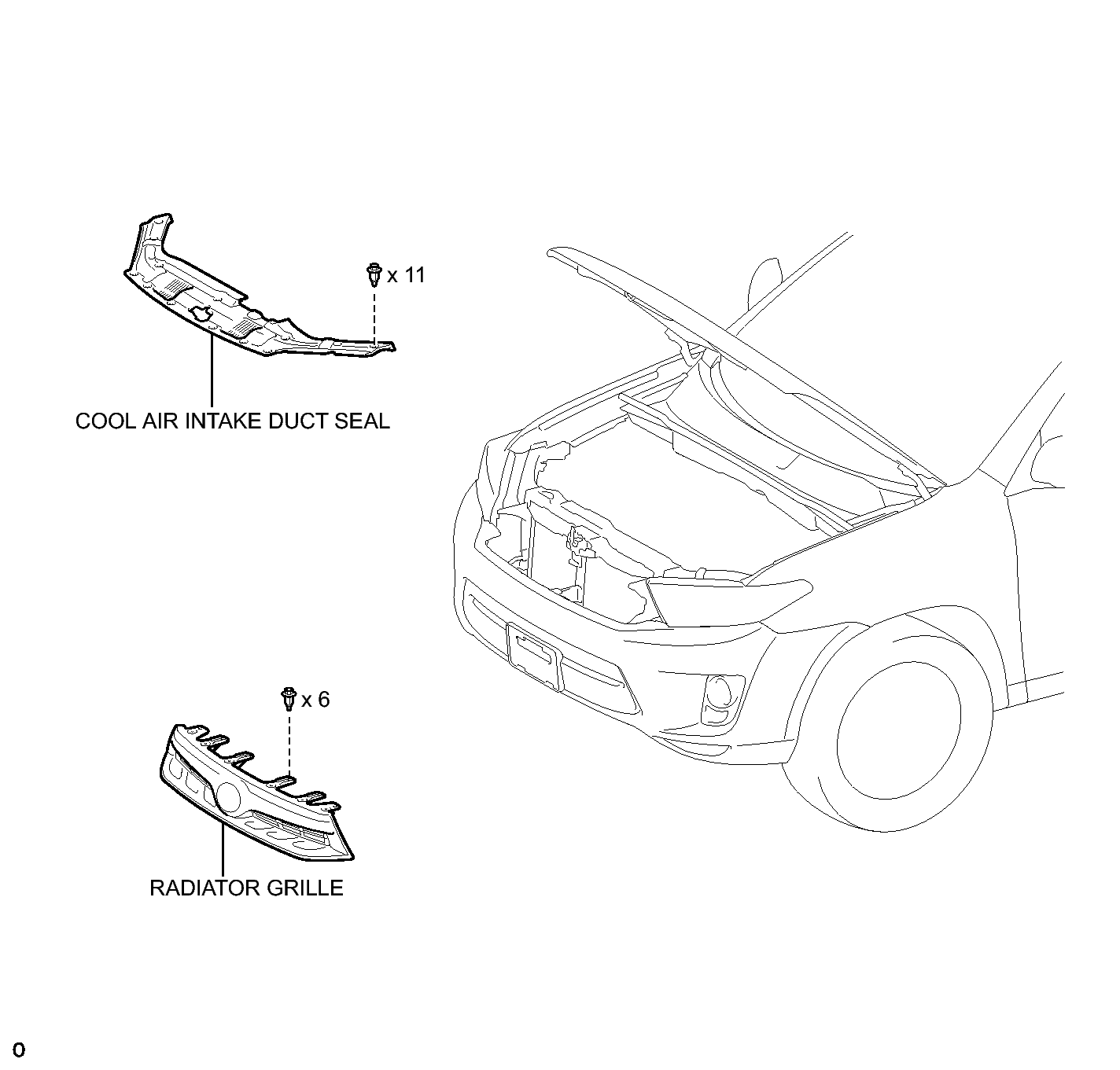

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Component (1 of 2)
GTY303786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

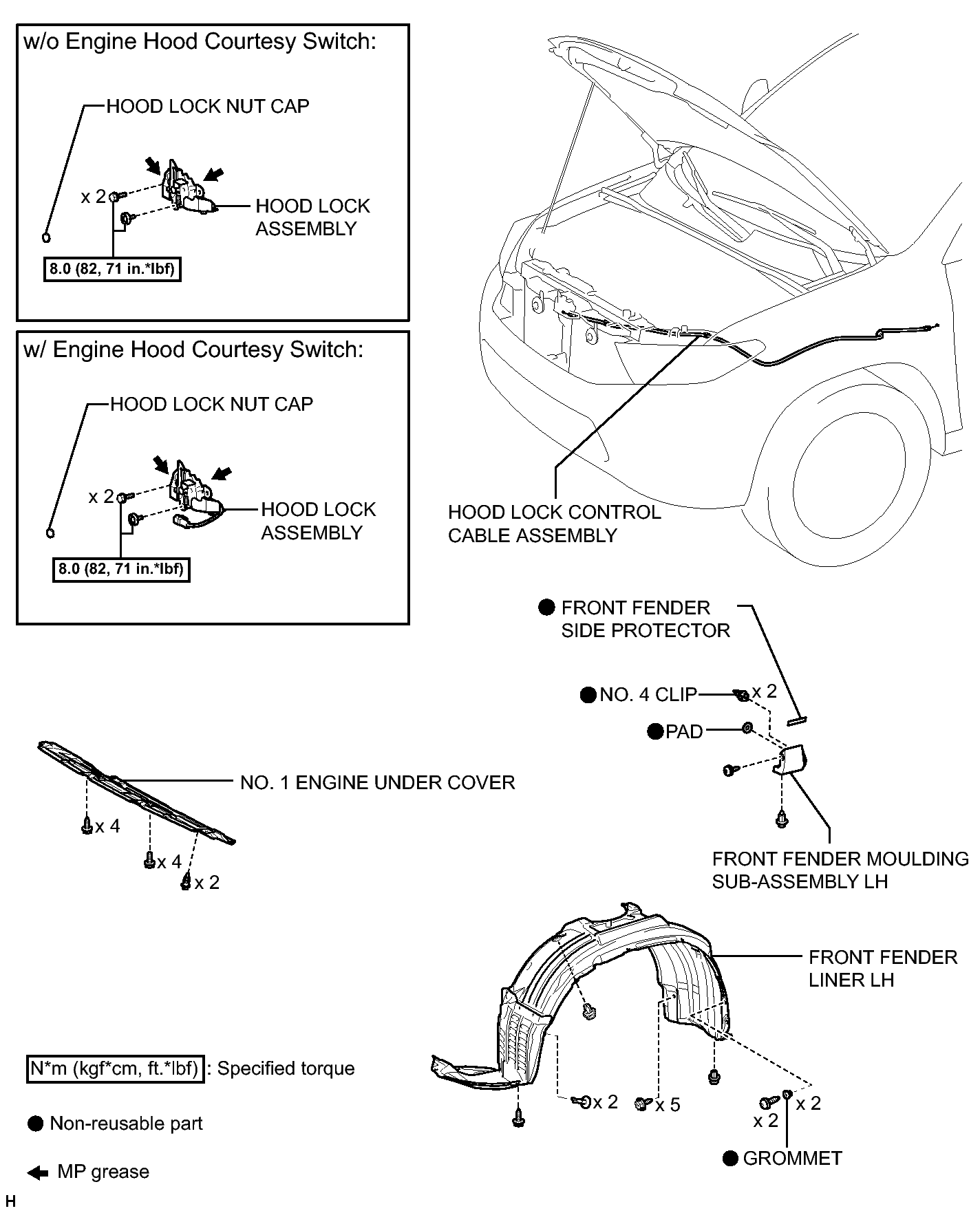

Fig 1: Hood Lock Control Cable Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY307455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
