Home >> Toyota >> 2012 >> Highlander Hybrid >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Service Information) (Hybrid) >> Fuel Lid Opener Switch >> Components >> Illustration

Fuel Lid Opener Switch: Components: Illustration

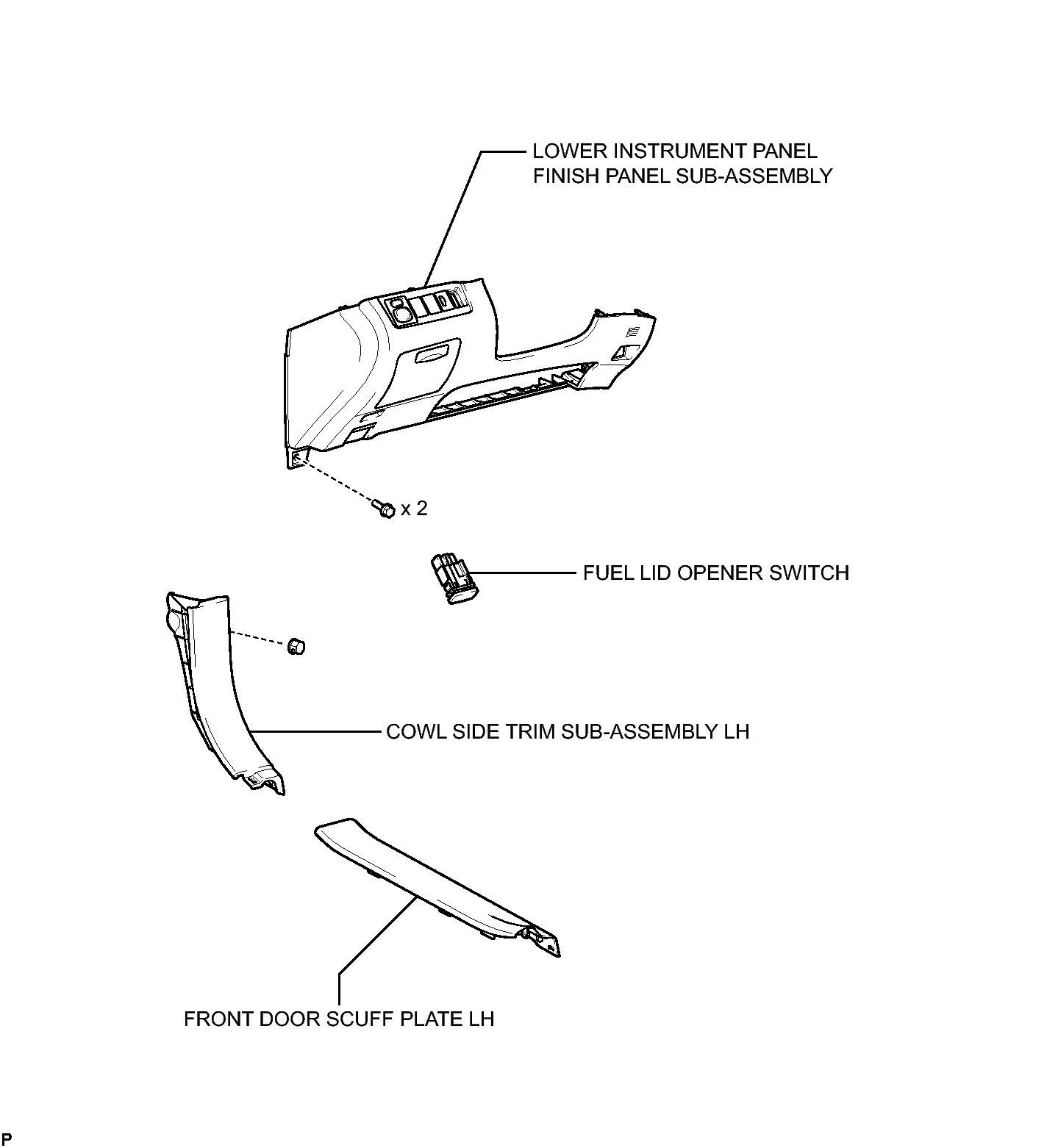

Fig 1: Identifying Fuel Lid Opener Switch Replacement Components

GTY177455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
