Fuel Lid Courtesy Switch: Components: Illustration

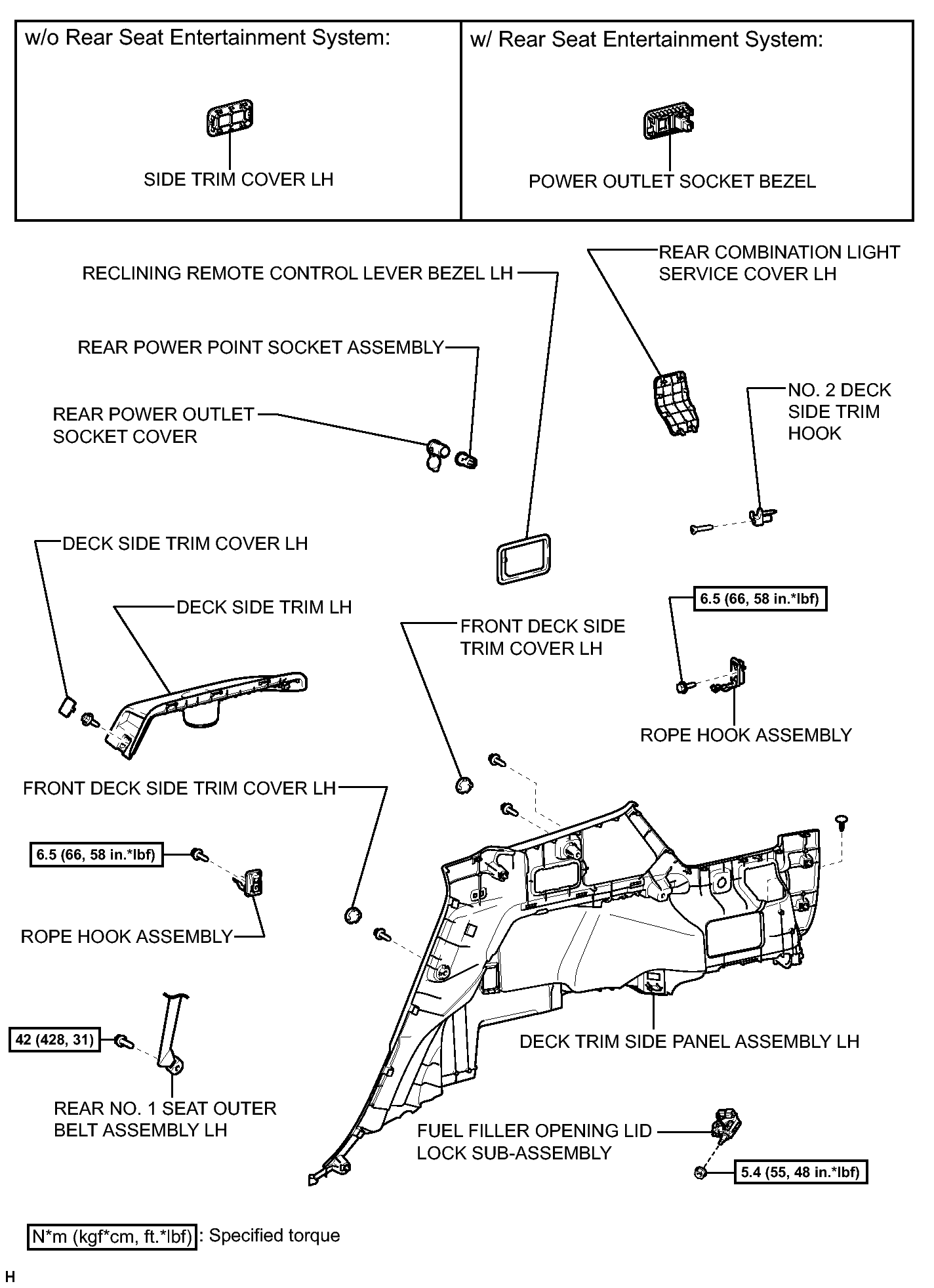

Fig 1: Identifying Fuel Lid Courtesy Switch Replacement Components (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Courtesy Switch Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Courtesy Switch Replacement Components (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Courtesy Switch Replacement Components With Torque Specifications (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Courtesy Switch Replacement Components With Torque Specifications (5 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
