Front Door: Components: Illustration

Fig 1: Identifying Front Door Replacement Components (1 of 5)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

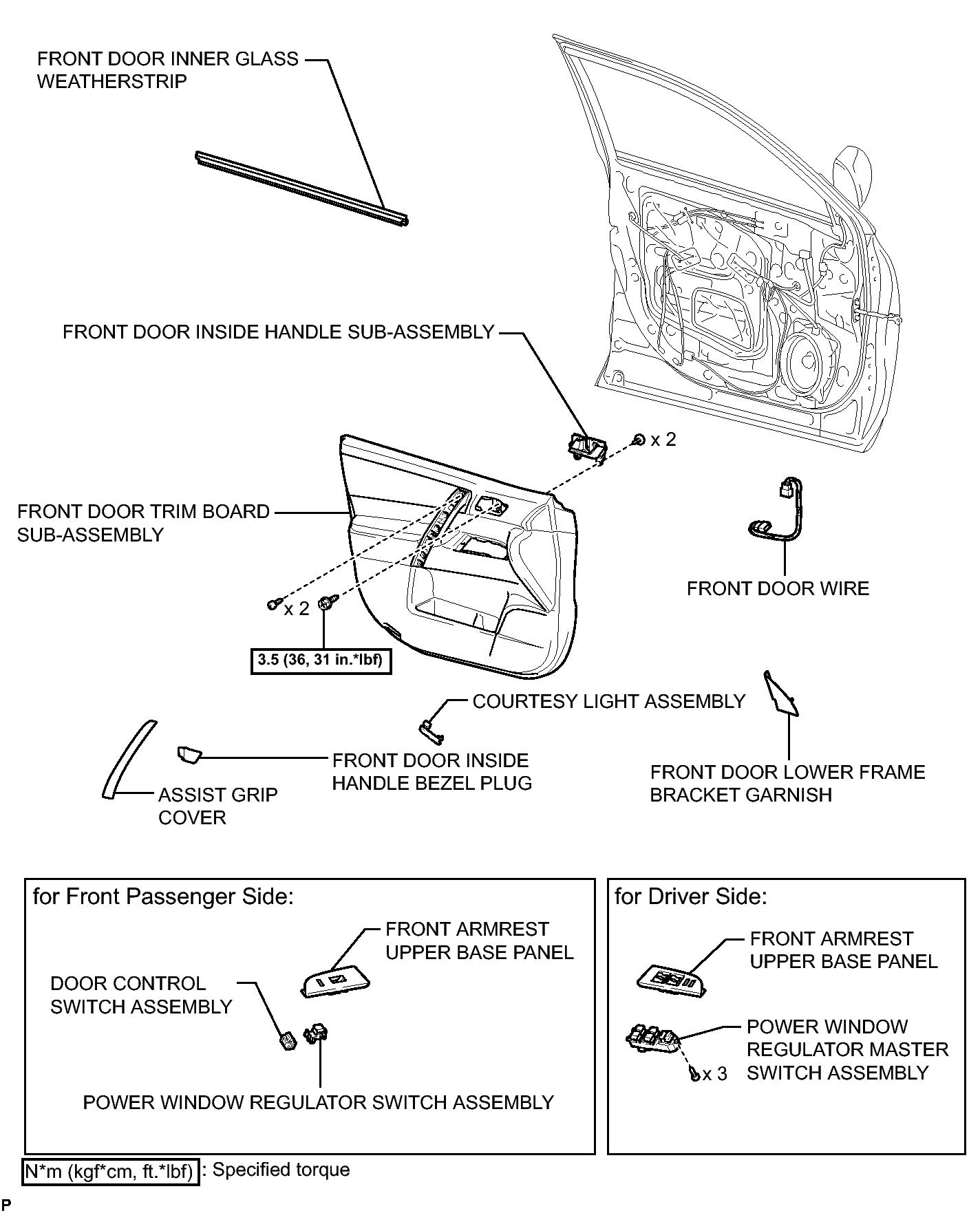

Fig 1: Identifying Front Door Replacement Components With Torque Specification (2 Of 5)
GTY199120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 5)
GTY199121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

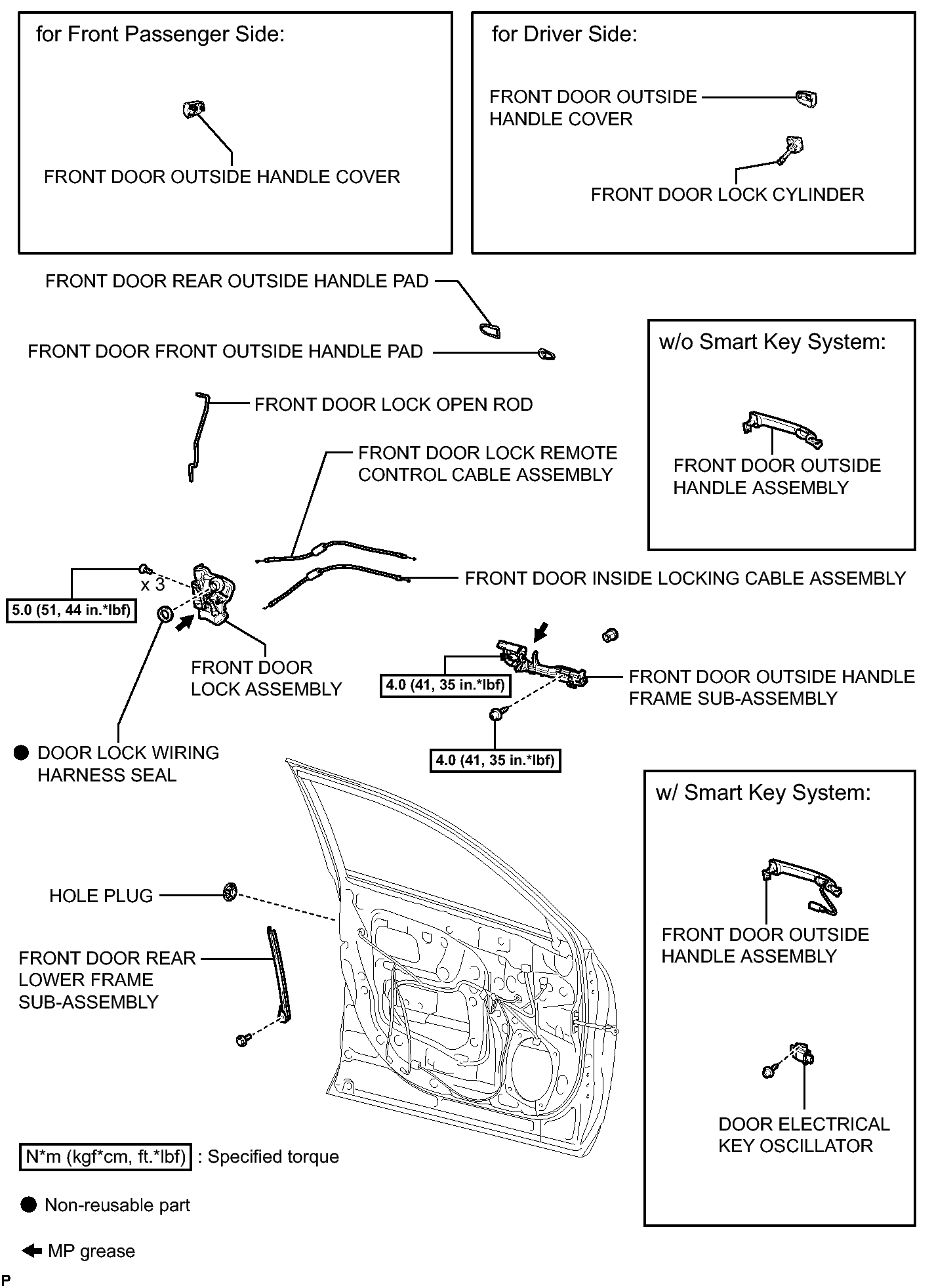

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (4 of 5)
GTY301085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

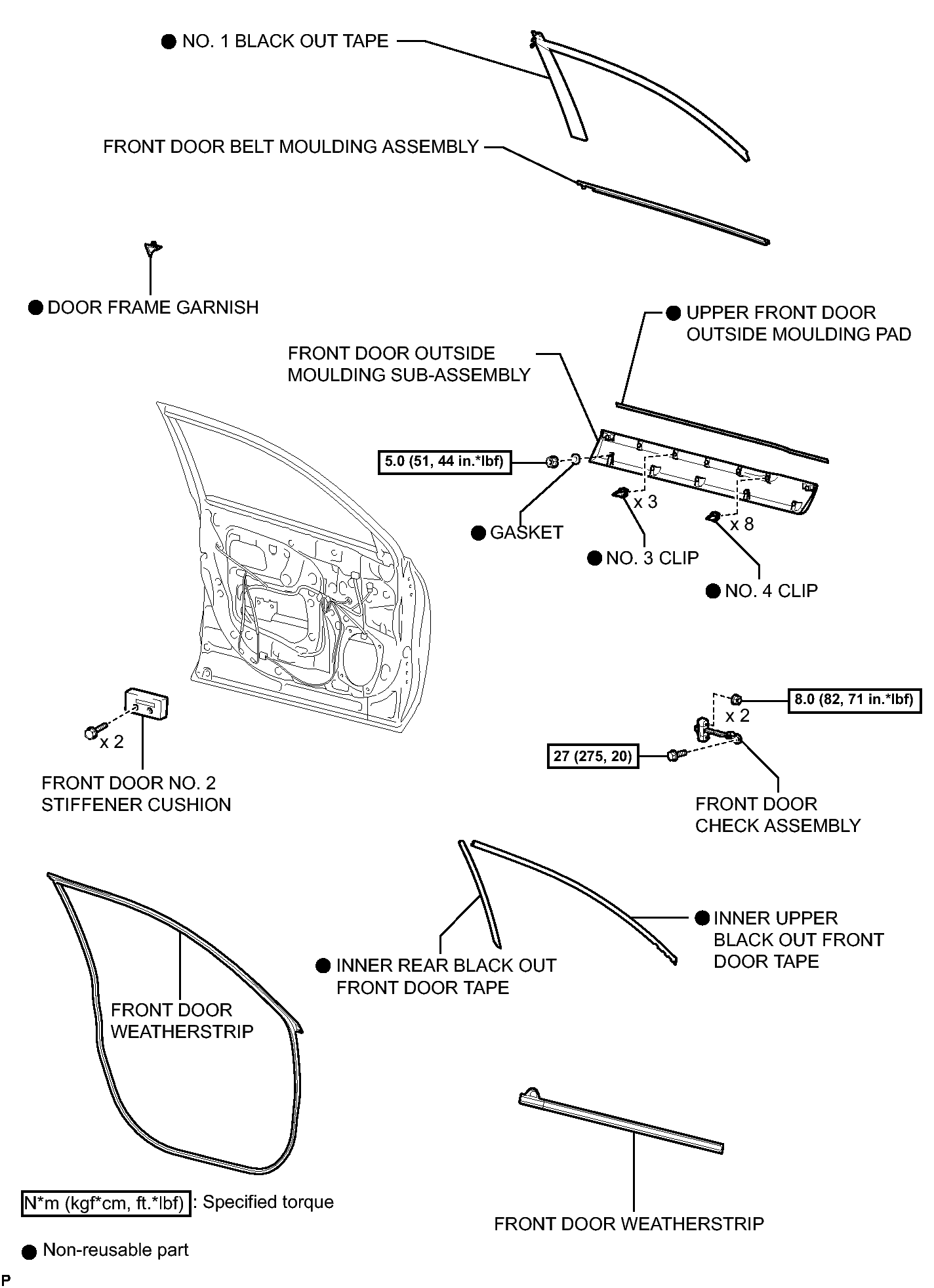

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (5 of 5)
GTY299769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
