Back Door: Components: Illustration

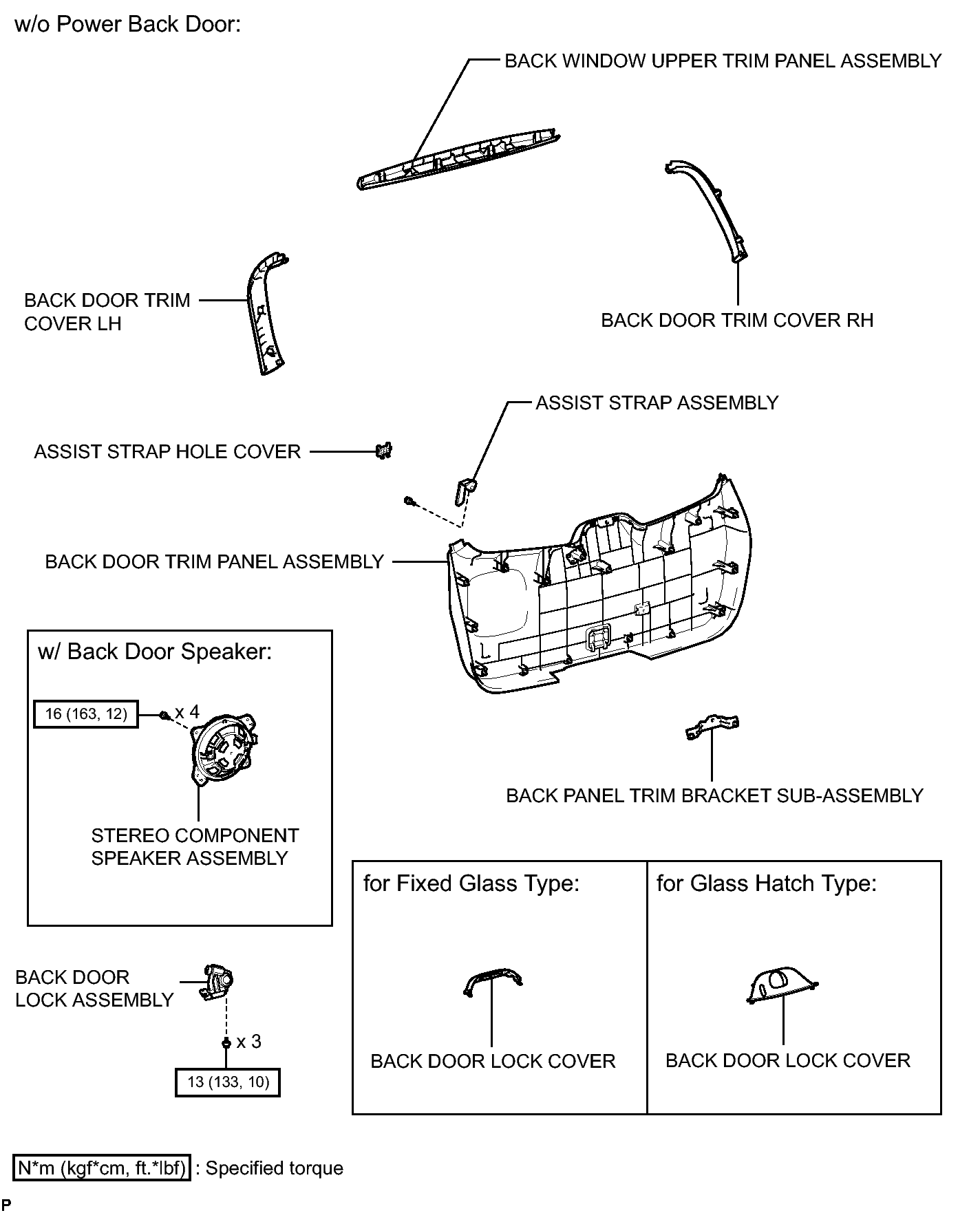

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (1 of 5)
GTY294720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

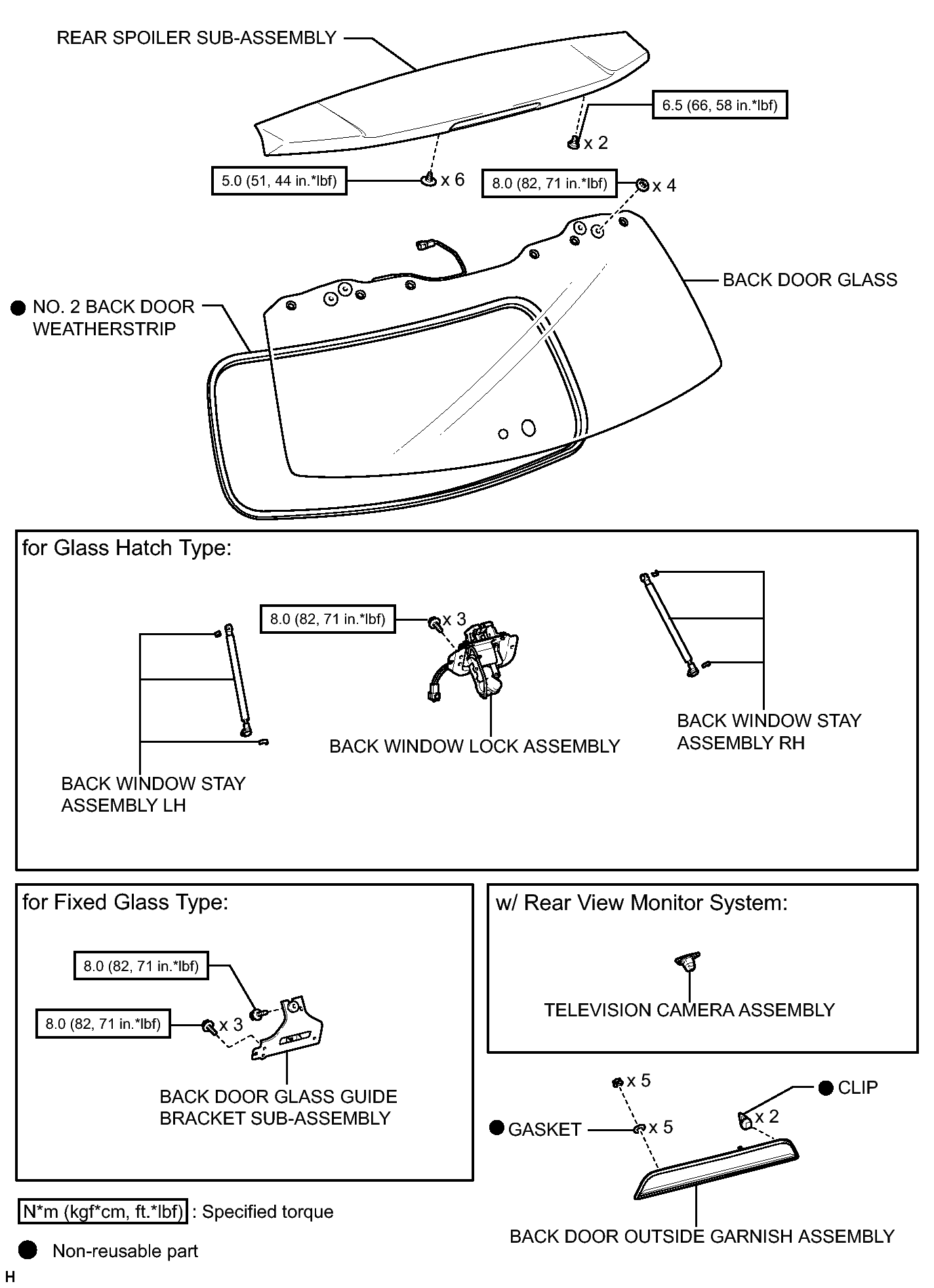

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (2 of 5)
GTY297445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

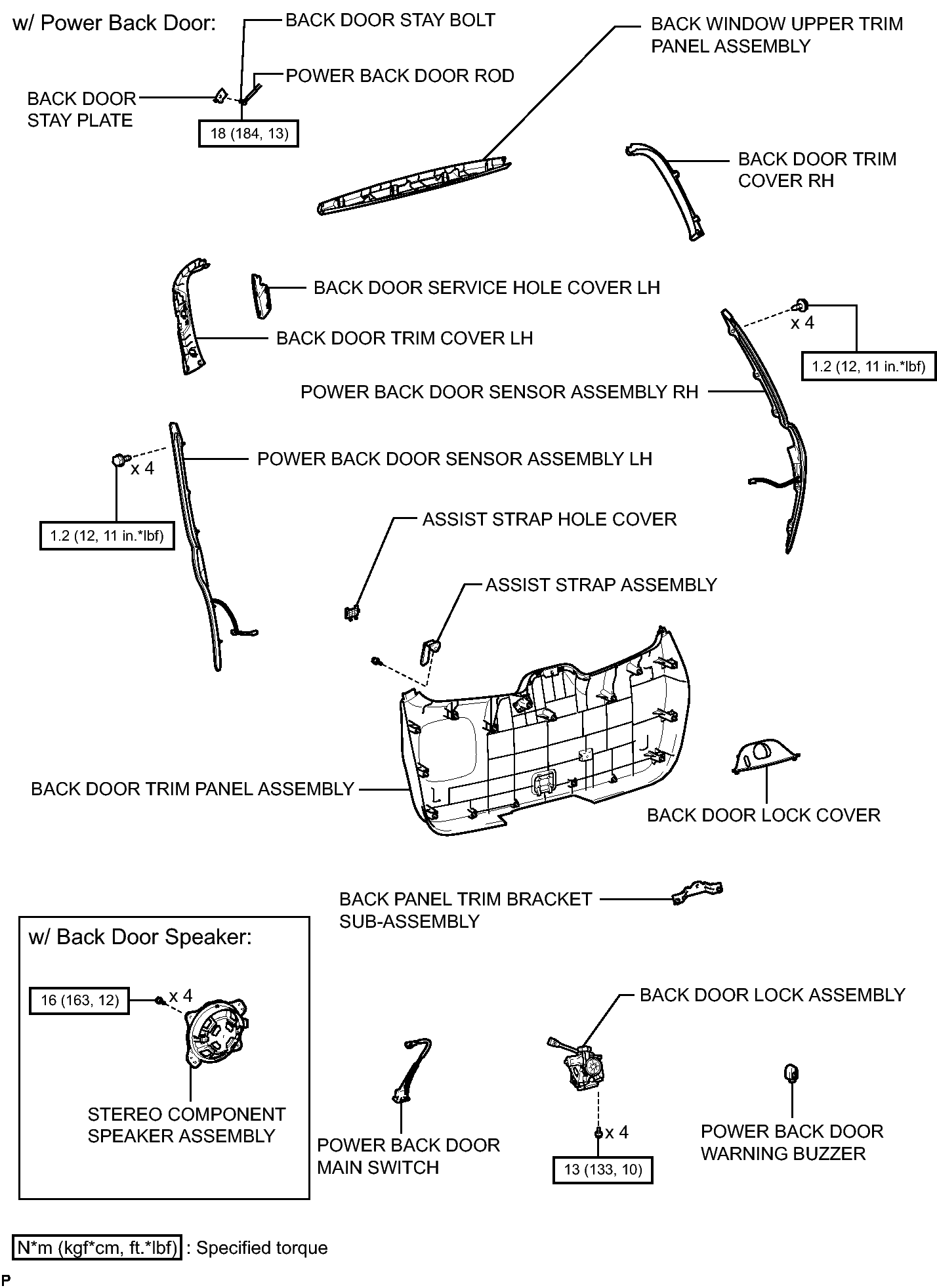

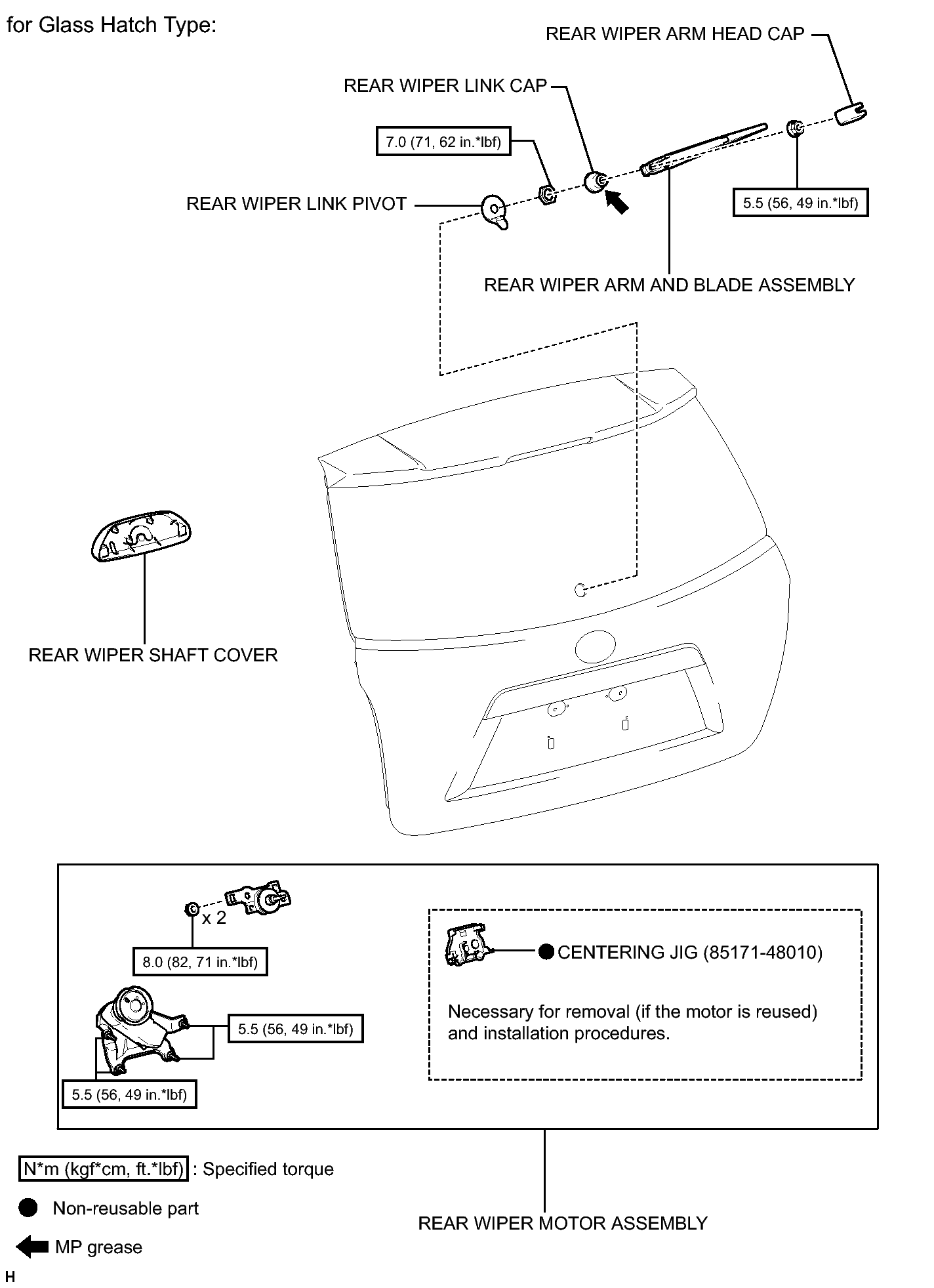

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (3 of 5)
GTY300472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

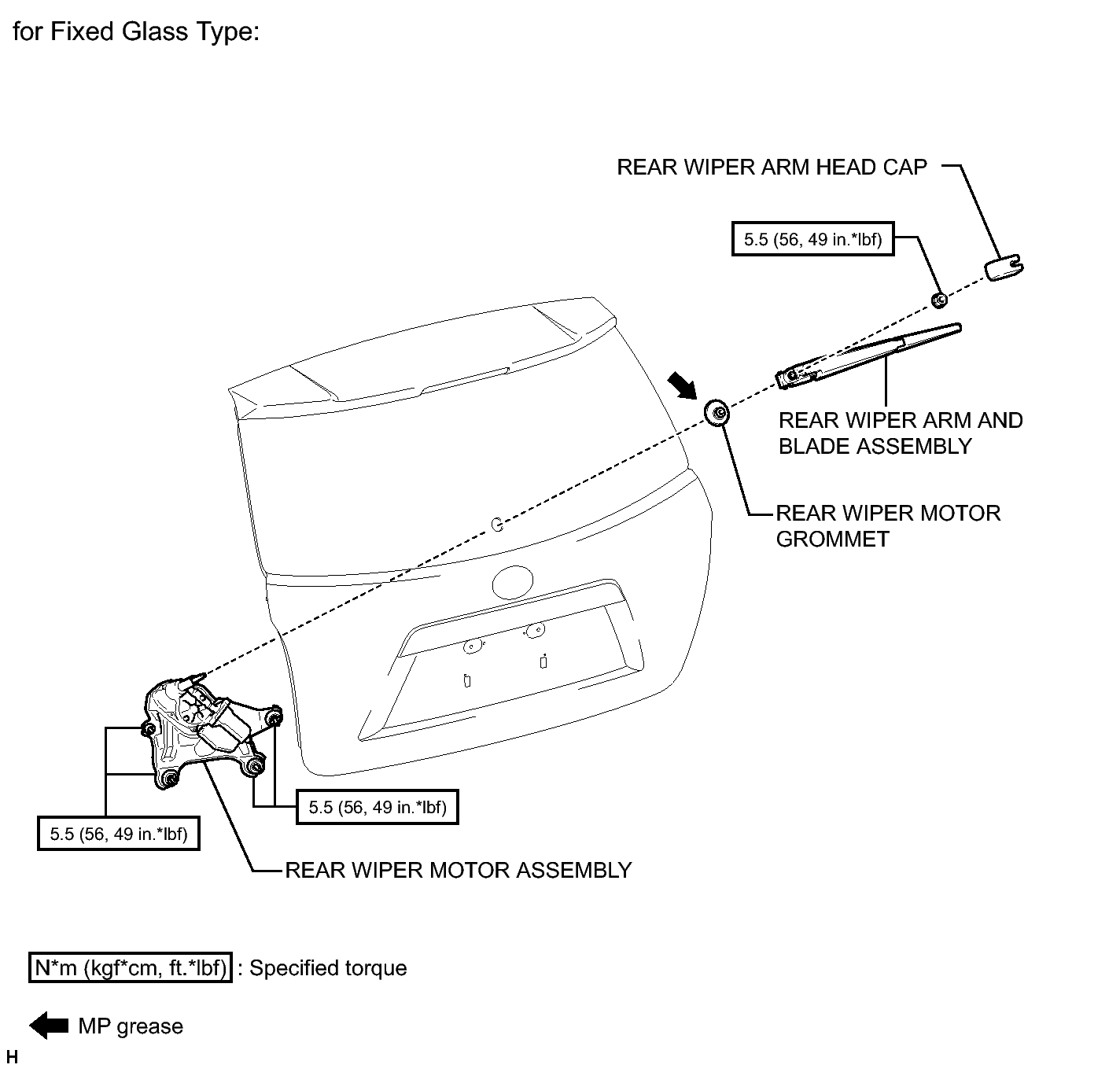

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (4 of 5)
GTY304759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Back Door Replacement Components With Torque Specifications (5 of 5)
GTY296235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
