Home >> Toyota >> 2012 >> Highlander Hybrid >> Repair and Diagnosis >> Accessories & Equipment >> Window Motors & Regulators >> Glass Hatch Opener System (Diagnostics & Symptom Tests) (Hybrid) >> Glass Hatch Opener System >> Glass Hatch Opener System does not Operate >> Wiring Diagram

Glass Hatch Opener System does not Operate: Wiring Diagram

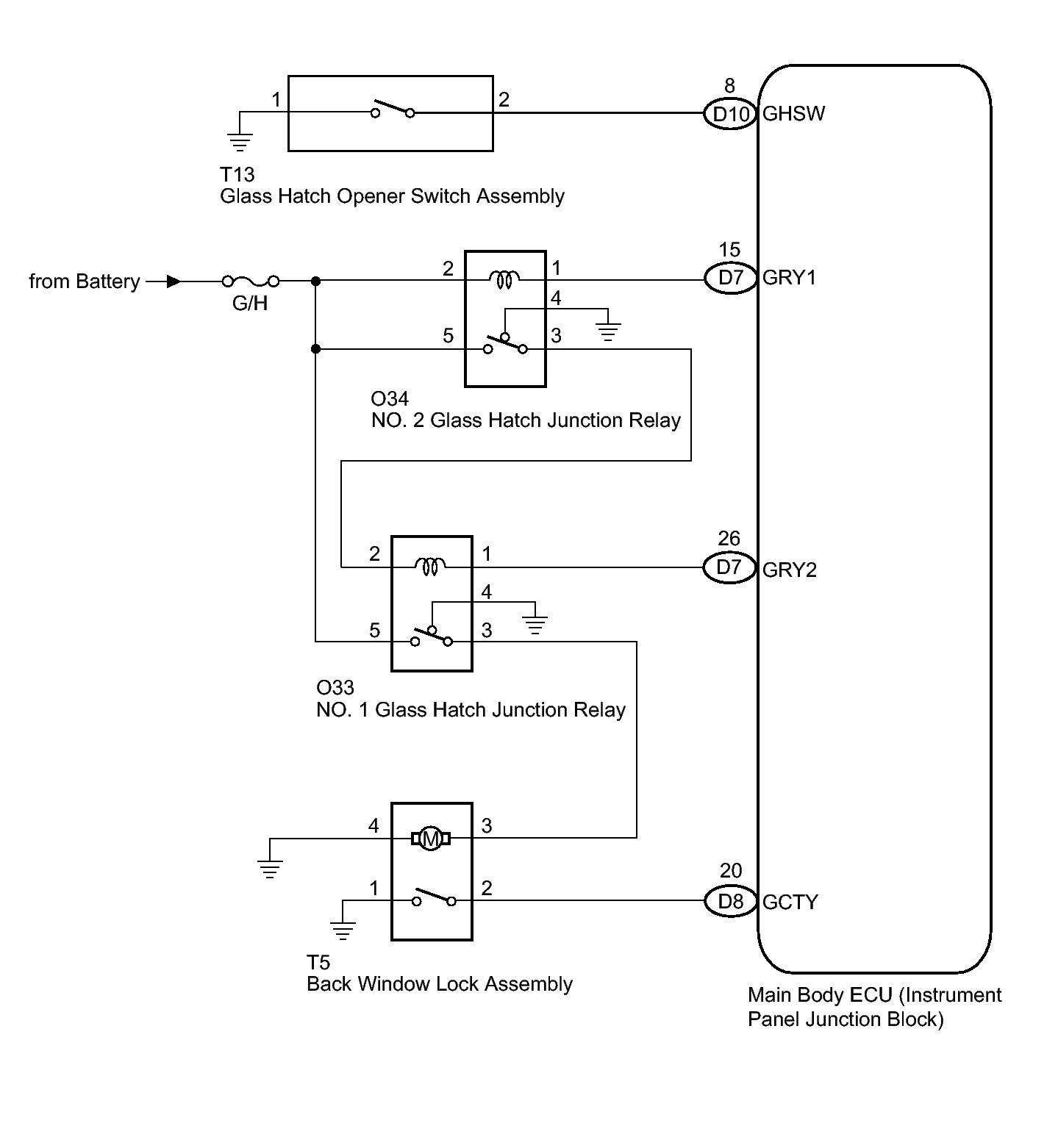

Fig 1: Identifying Glass Hatch Junction Relay Wiring Diagram

GTY306211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
