SEAT HEATER CONTROL (for Manual Seat): Components: Illustration

Fig 1: Identifying Seat Heater Control (For Manual Seat) Replacement Components (1 of 2)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

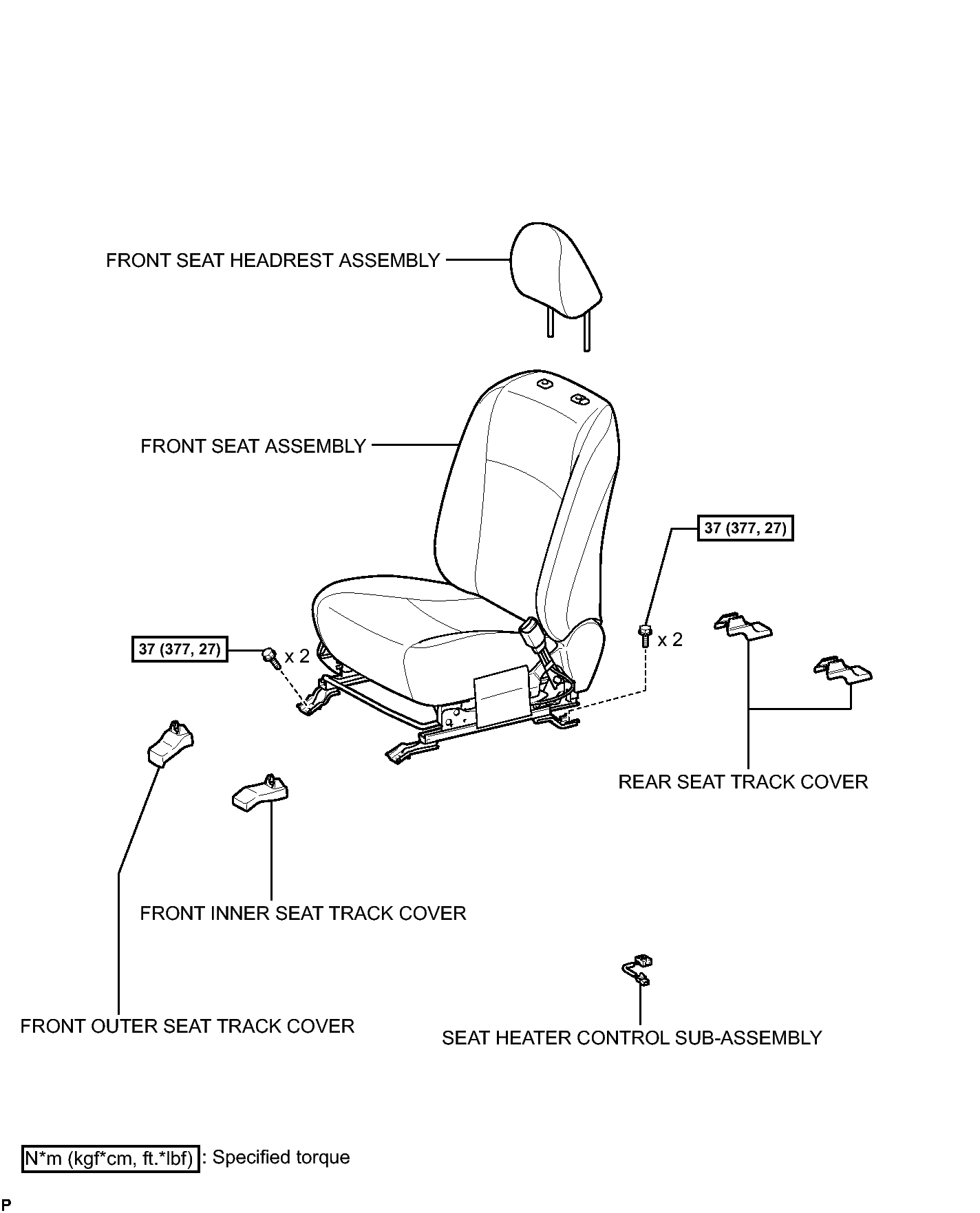

Fig 1: Identifying Seat Heater Control (For Manual Seat) Replacement Components With Torque Specifications (2 of 2)
GTY295755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
