Rear Center Seat Assembly: Components: Illustration

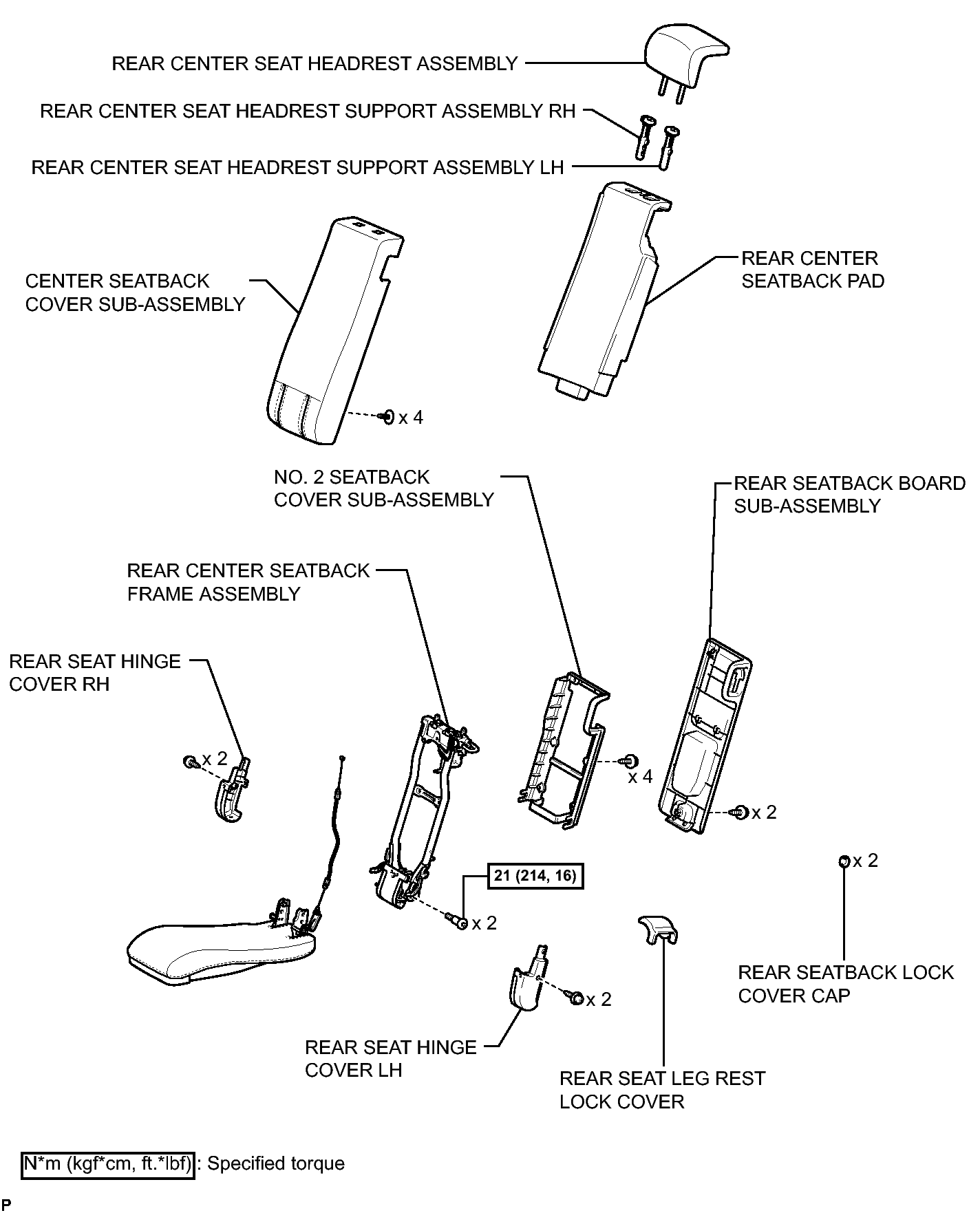

Fig 1: Identifying Rear Center Seat Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY200425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

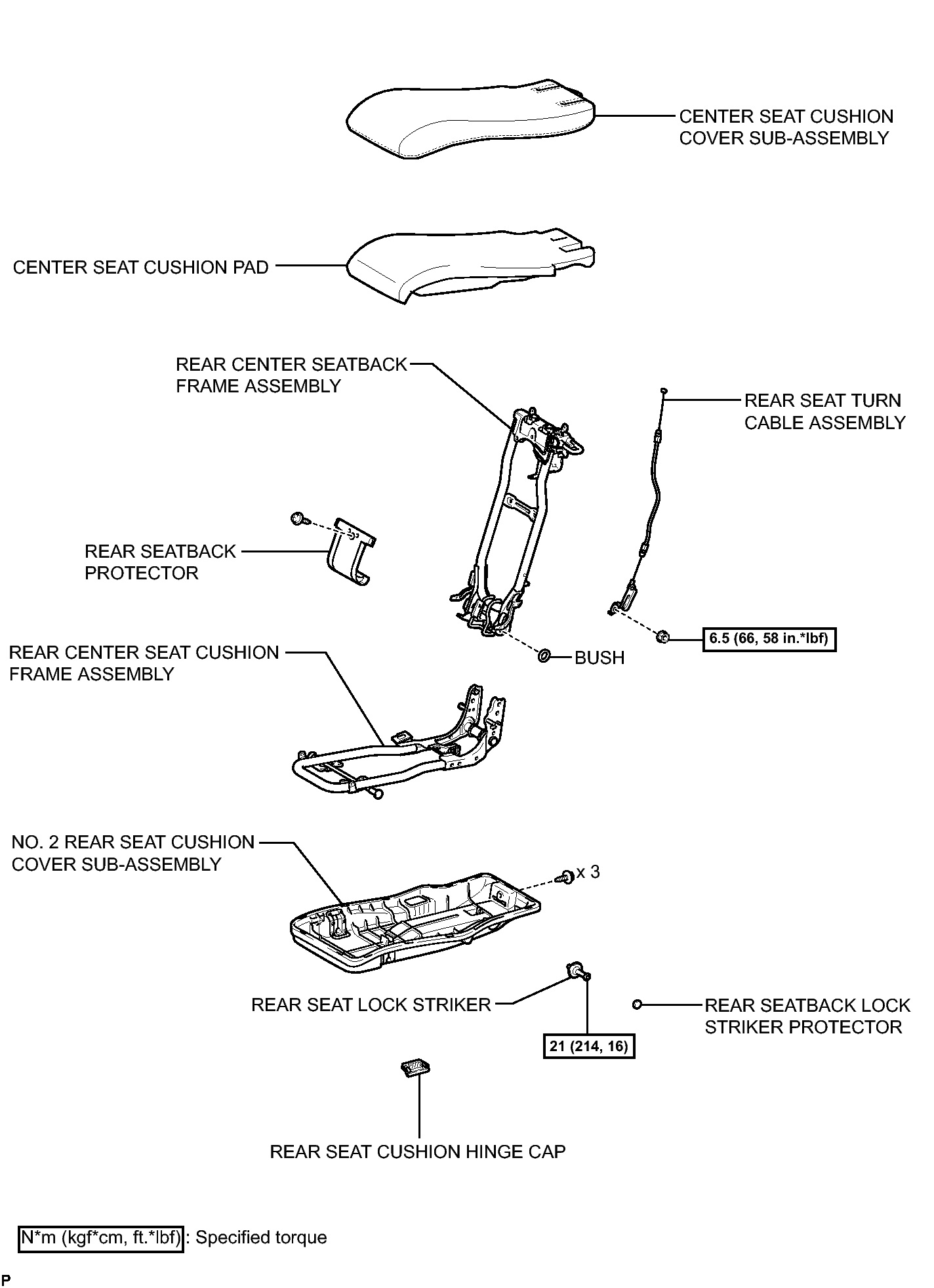

Fig 1: Identifying Rear Center Seat Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY200469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
