REAR NO. 1 SEAT ASSEMBLY (for LH Side): Components: Illustration

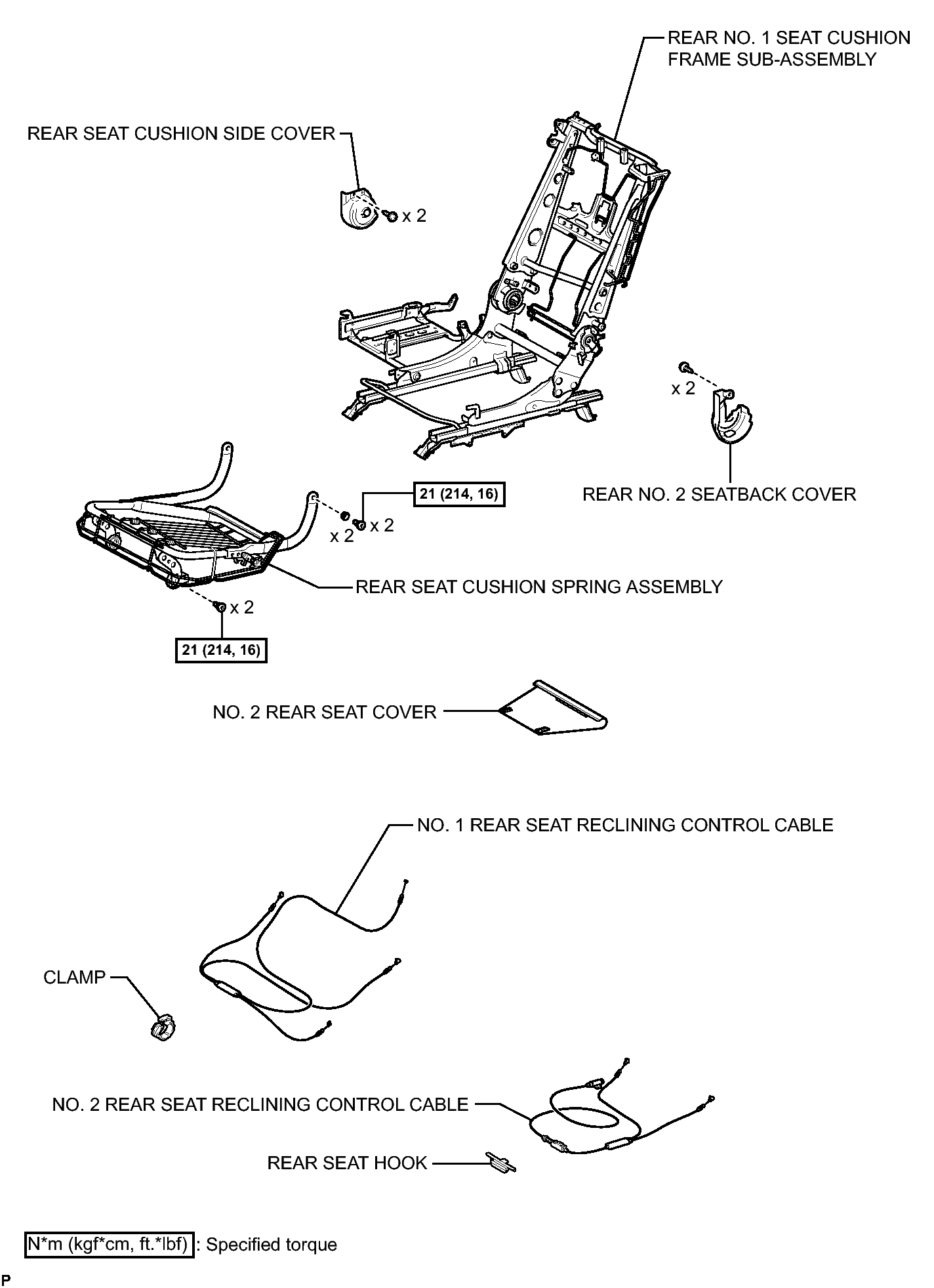

Fig 1: Identifying Rear No. 1 Seat Assembly (For LH Side) Replacement Components With Torque Specifications (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

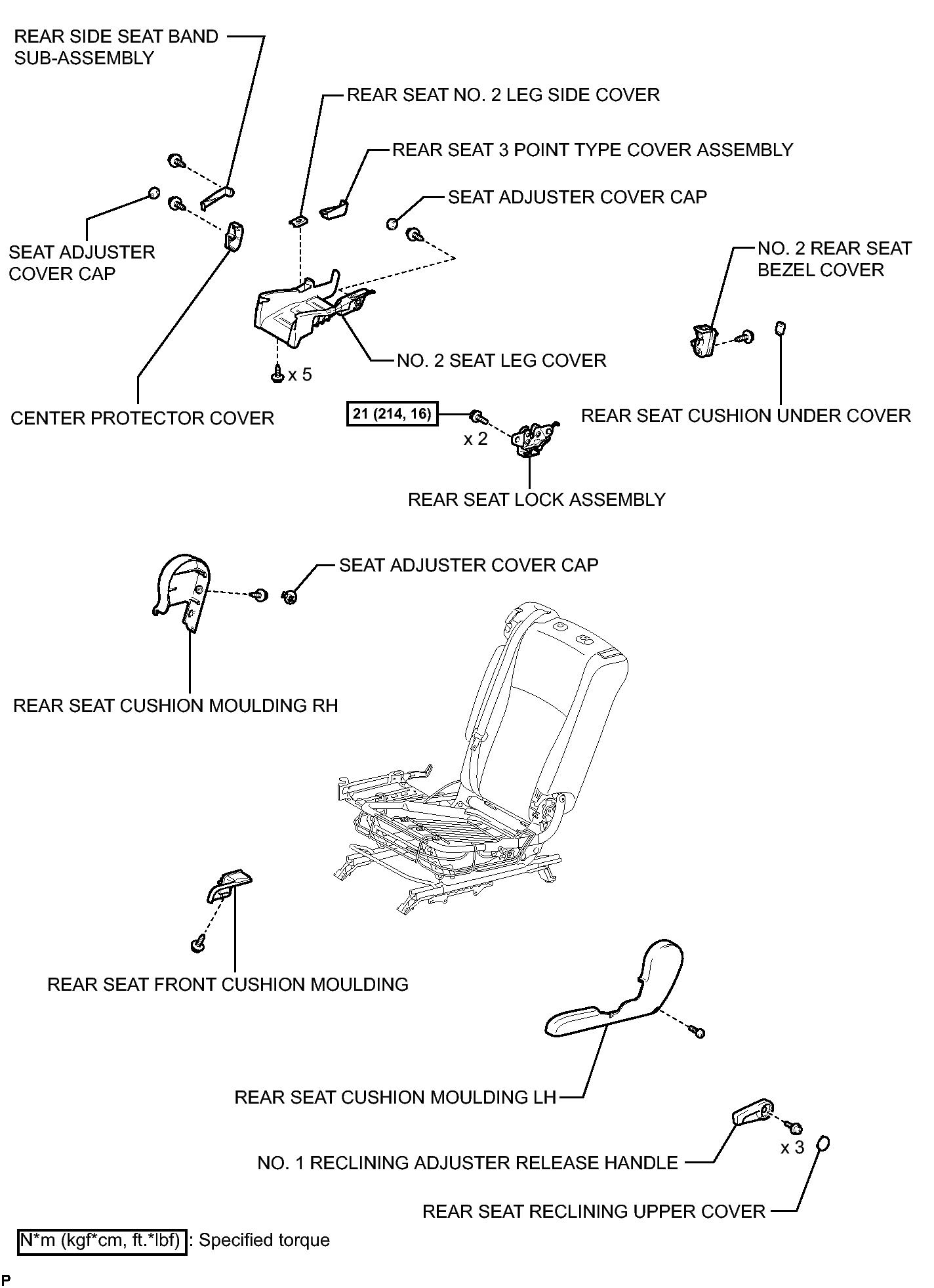

Fig 1: Identifying No. 1 Seat Assembly (For LH Side) Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

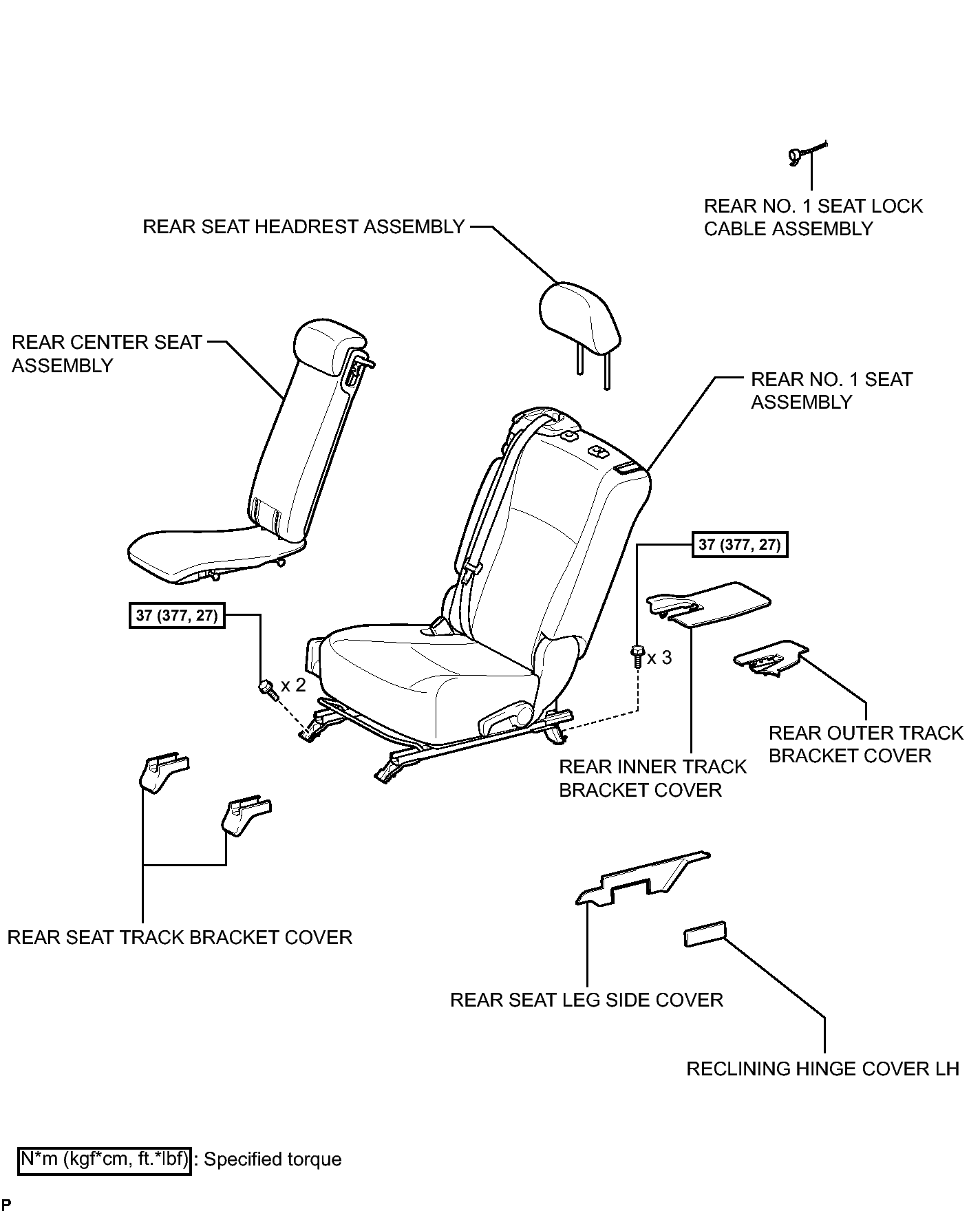

Fig 1: Identifying No. 1 Seat Assembly (For LH Side) Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

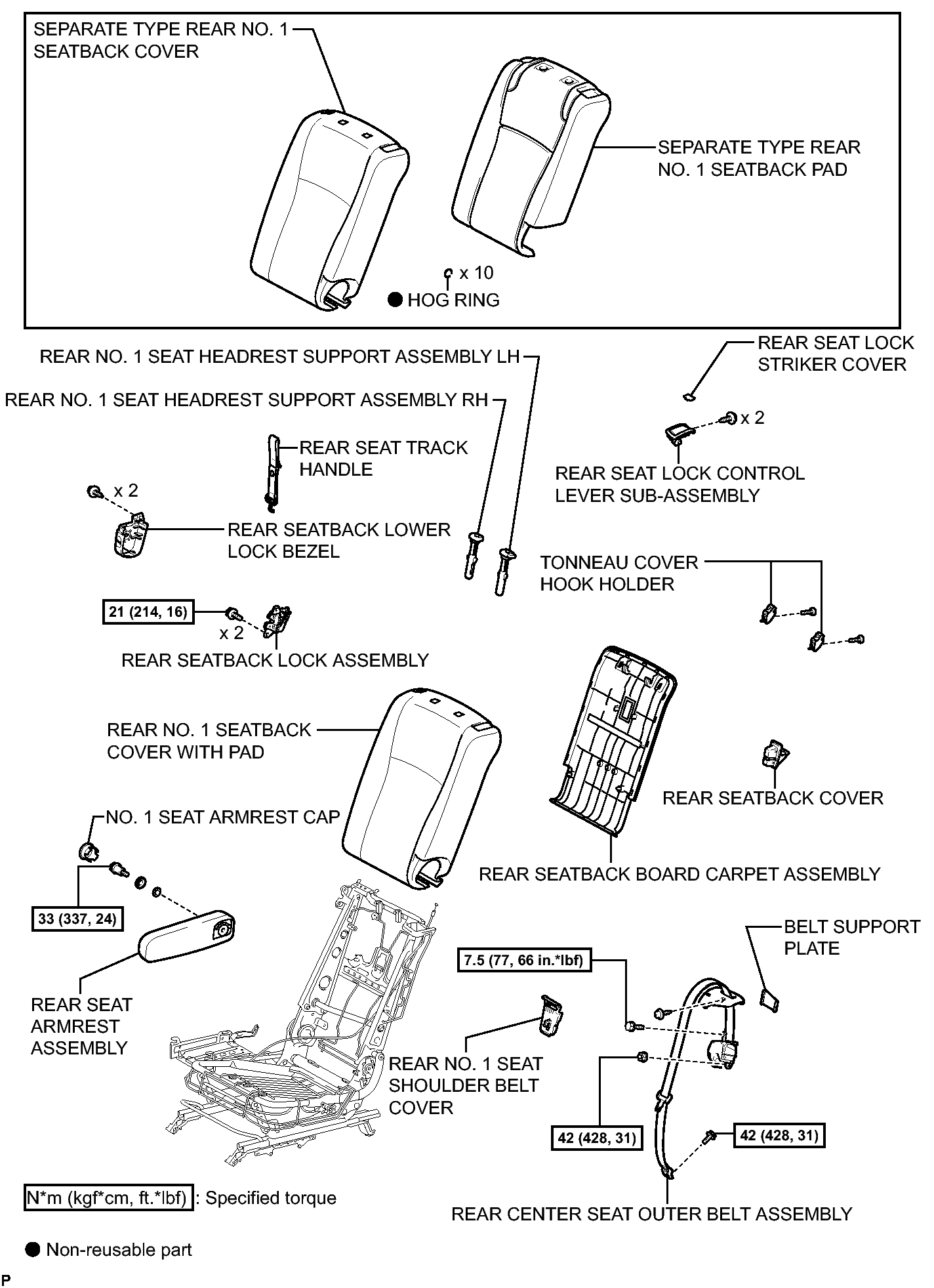

Fig 1: Identifying No. 1 Seat Assembly (For LH Side) Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

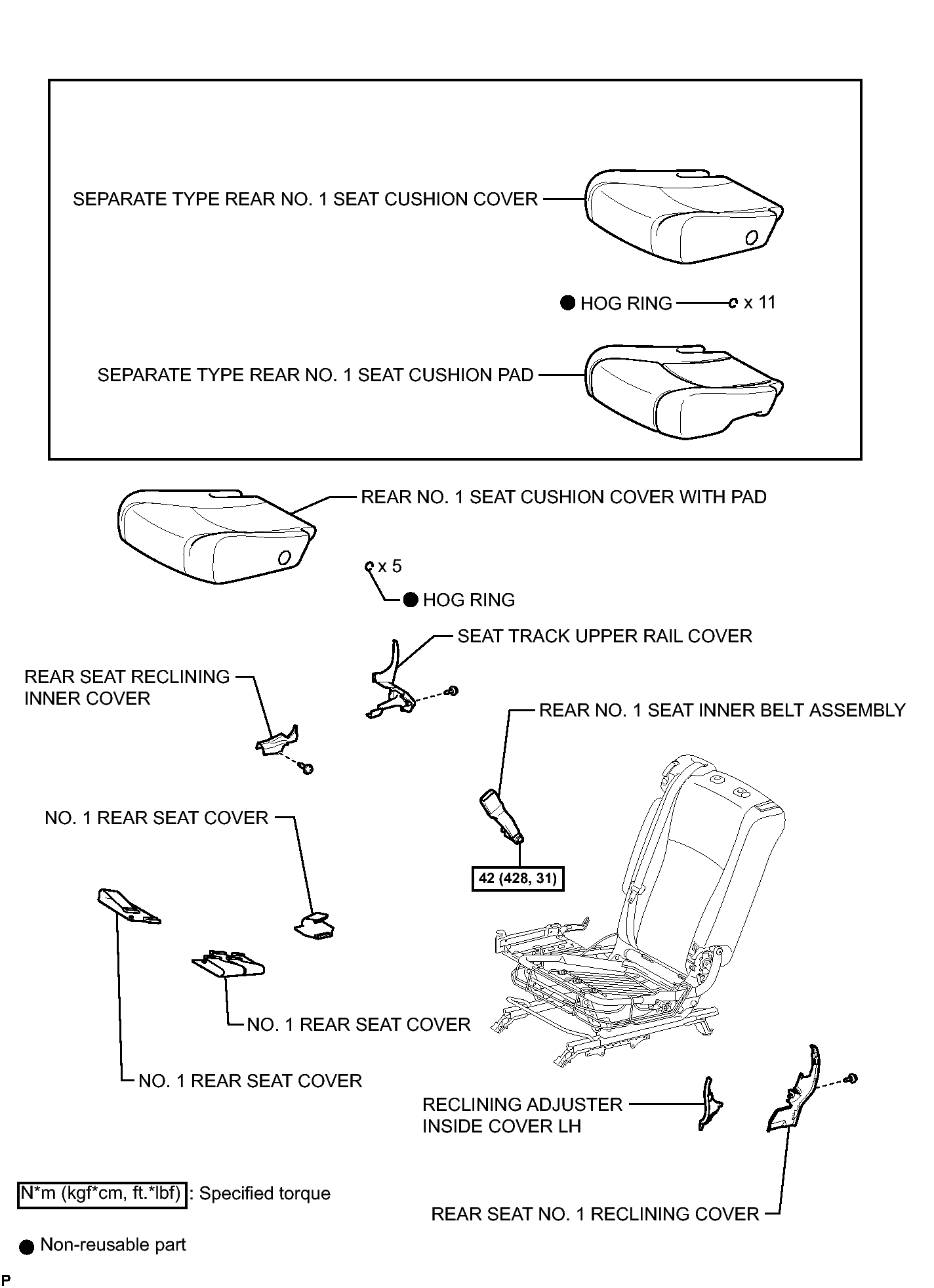

Fig 1: Identifying No. 1 Seat Assembly (For LH Side) Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
