FRONT SEAT CUSHION HEATER (for Power Seat): Removal: Removal

  1. REMOVE DECK BOARD ASSEMBLY  . Refer to REMOVAL - Step 1
  2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY  . Refer to REMOVAL - Step 2
  3. REMOVE FRONT SEAT HEADREST ASSEMBLY  See step  3
  4. REMOVE FRONT OUTER SEAT TRACK COVER  See step  4
  5. REMOVE FRONT INNER SEAT TRACK COVER  See step  5
  6. REMOVE REAR OUTER SEAT TRACK COVER  See step  6
  7. REMOVE REAR INNER SEAT TRACK COVER  See step  7
  8. REMOVE FRONT SEAT ASSEMBLY  See step  8
  9. REMOVE RECLINING POWER SEAT SWITCH KNOB  See step  1
  10. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  See step  2
  11. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY  See step  3
  12. REMOVE FRONT SEAT INNER BELT ASSEMBLY  . Refer to REMOVAL - Step 16
  13. REMOVE FRONT SEAT CUSHION INNER SHIELD  See step  9
  14. REMOVE FRONT SEAT CUSHION COVER WITH PAD (w/o Seat Cushion Front Edge Adjustment Function)  See step  10
  15. REMOVE FRONT SEAT CUSHION COVER WITH PAD (w/ Seat Cushion Front Edge Adjustment Function)
  16. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER (w/o Seat Cushion Front Edge Adjustment Function)
    1. Remove the 6 hog rings.

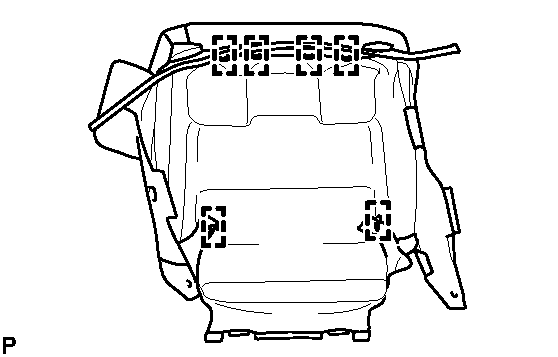

      Fig 1: Identifying Front Seat Cushion Cover (W/O Seat Cushion Front Edge Adjustment Function) Hog Rings
      GTY199096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 11 hog rings and the separate type front seat cushion cover.

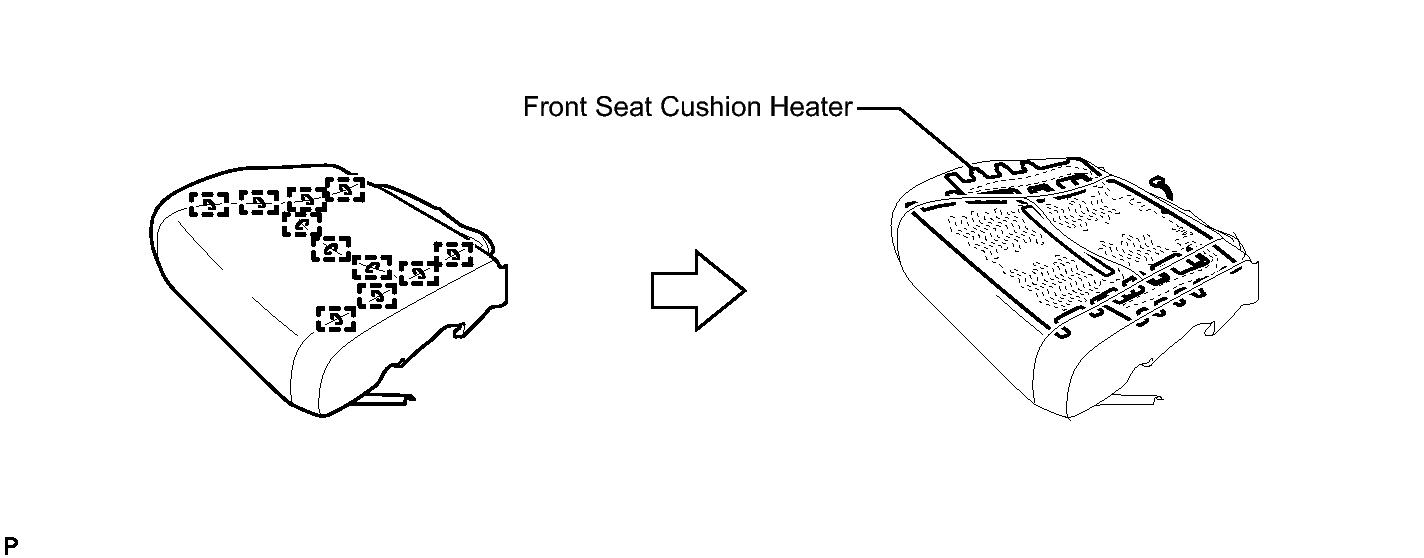

      Fig 2: Identifying Separate Type Front Seat Cushion Cover Hog Rings
      GTY199097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER (w/ Seat Cushion Front Edge Adjustment Function)
    1. Remove the 2 hog rings.

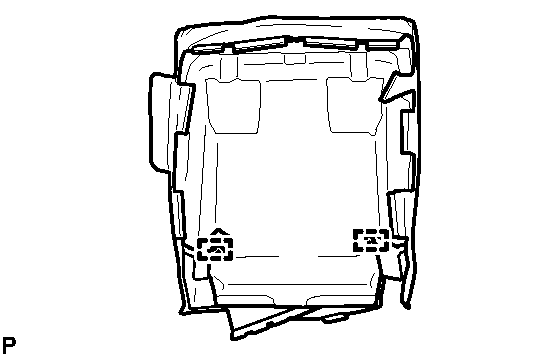

      Fig 3: Identifying Hog Rings
      GTY167493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 15 hog rings and the separate type front seat cushion cover.

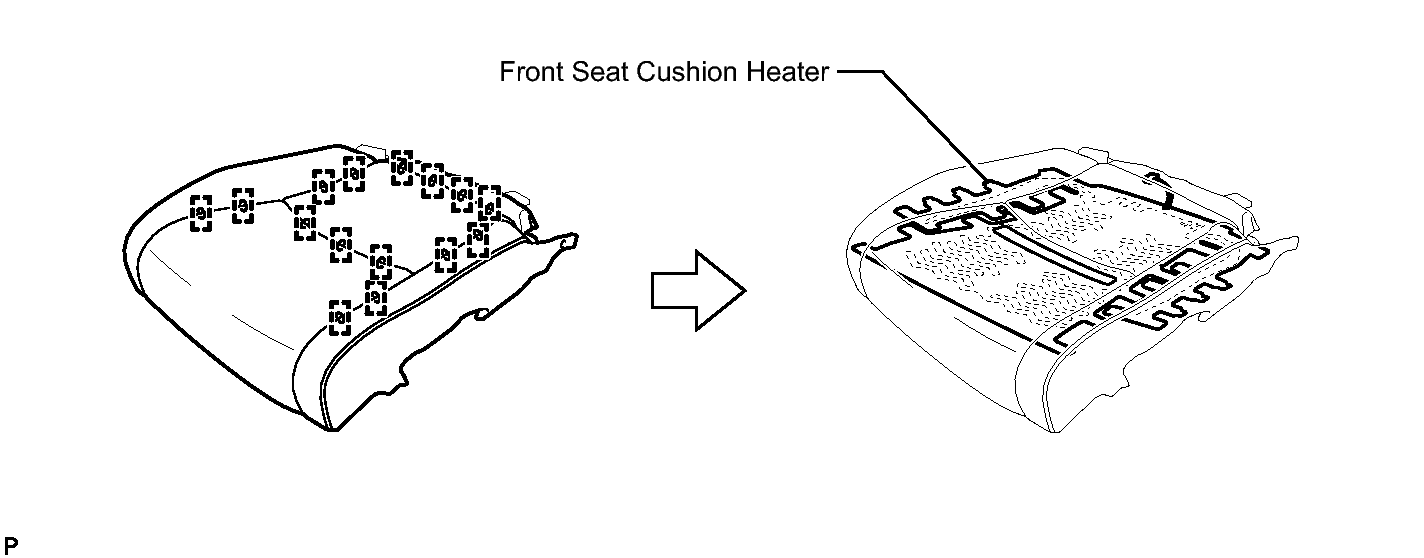

      Fig 4: Identifying Front Seat Cushion Heater
      GTY199497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
