FRONT SEAT ASSEMBLY (for Power Seat): Removal: Removal

REMOVE DECK BOARD ASSEMBLY . Refer to REMOVAL - Step 1
REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE FRONT SEAT HEADREST ASSEMBLY
1. Press the headrest support button and pull up the headrest to its highest position as shown in the illustration.

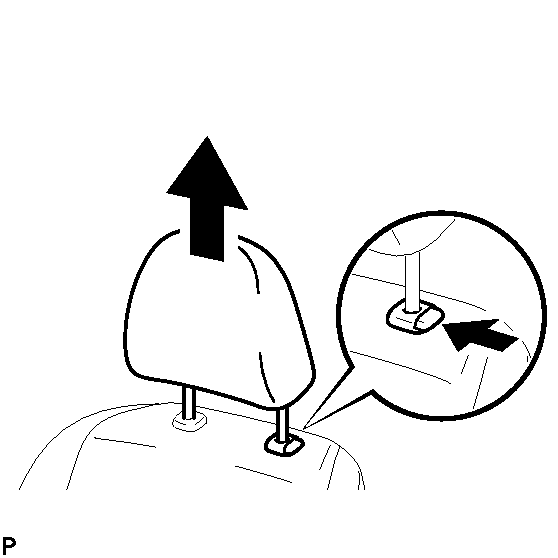

  Fig 1: Locating Highest Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OUTER SEAT TRACK COVER
1. Operate the power seat switch knob and move the seat to the rearmost position.
2. Disengage the 2 claws and remove the front outer seat track cover.

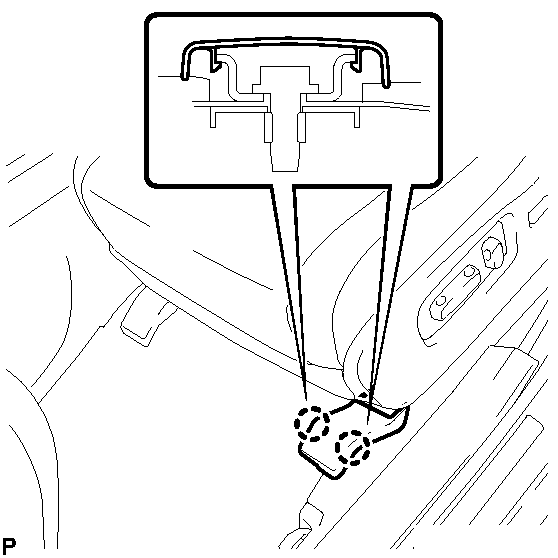

  Fig 2: Identifying Front Outer Seat Track Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT INNER SEAT TRACK COVER
1. Disengage the 2 claws and remove the front inner seat track cover.

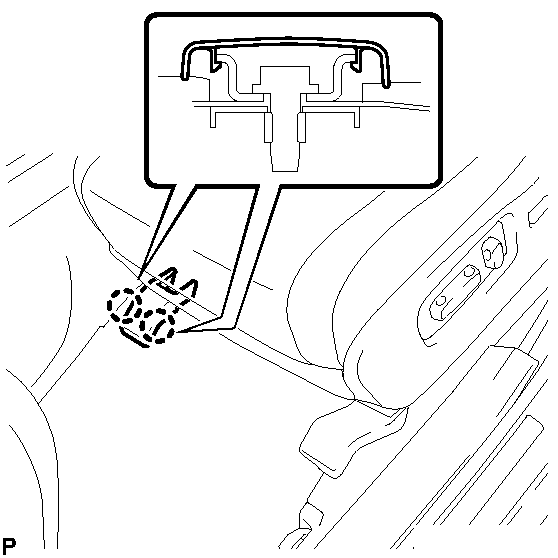

  Fig 3: Identifying Claws On Front Inner Seat Track Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR OUTER SEAT TRACK COVER
1. Operate the power seat switch knob and move the seat to the foremost position.
2. Disengage the 2 claws and remove the rear outer seat track cover.

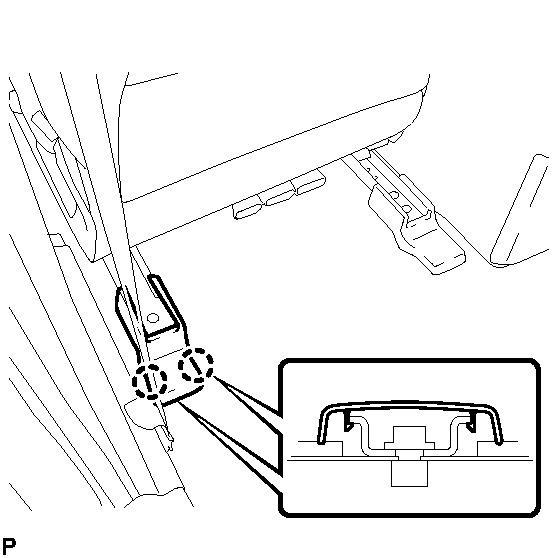

  Fig 4: Identifying Rear Outer Seat Track Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR INNER SEAT TRACK COVER
1. Disengage the 2 claws and remove the rear inner seat track cover.

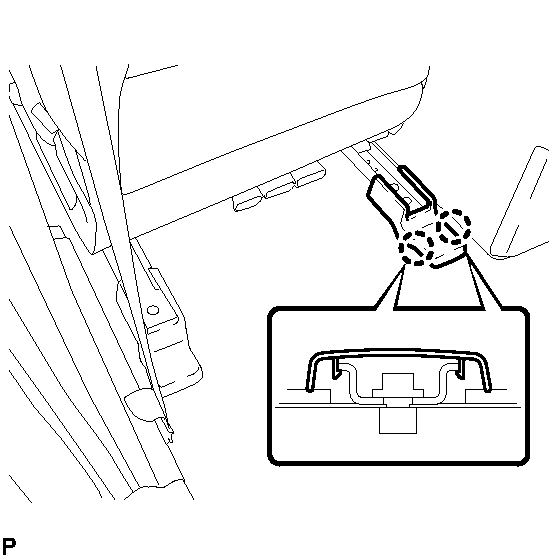

  Fig 5: Identifying Rear Inner Seat Track Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT ASSEMBLY
1. Remove the 2 bolts on the rear side of the seat.

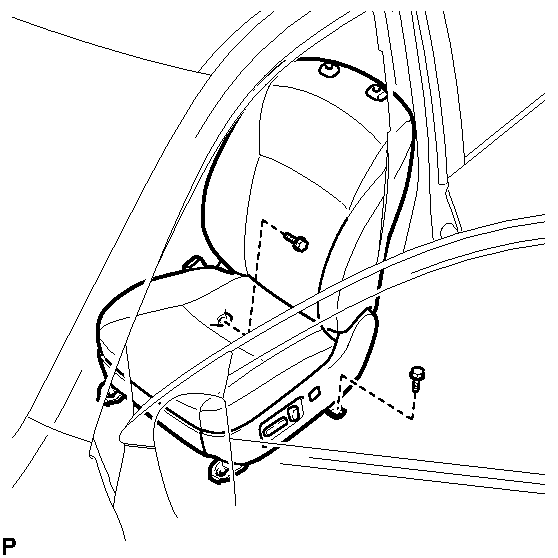

  Fig 6: Identifying Bolts On Rear Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Operate the power seat switch knob and move the seat to the rearmost position.
3. Remove the 2 bolts on the front side of the seat.

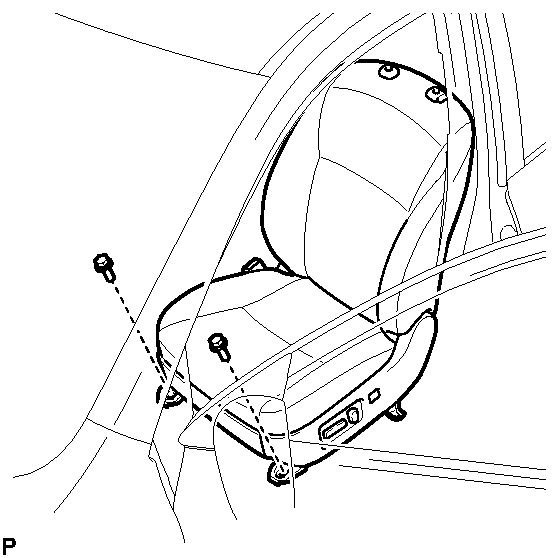

  Fig 7: Identifying Bolts On Front Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Operate the power seat switch knob and move the seat to the center position. Also, Operate the power seat switch knob and move the seatback to the upright position.
5. Disconnect the cable from the negative (-) battery terminal.
  WARNING:
  - Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent the airbag and seat belt pretensioner from deploying. Refer to PRECAUTION .
  - If the side airbag was deployed, replace the front seat assembly with a new one.
  NOTE:
  When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
6. Disconnect each connector under the front seat assembly.
7. Remove the front seat assembly.
  NOTE:
  Be careful not to damage the vehicle body.
