FRONT SEAT ASSEMBLY (for Power Seat): Components: Illustration

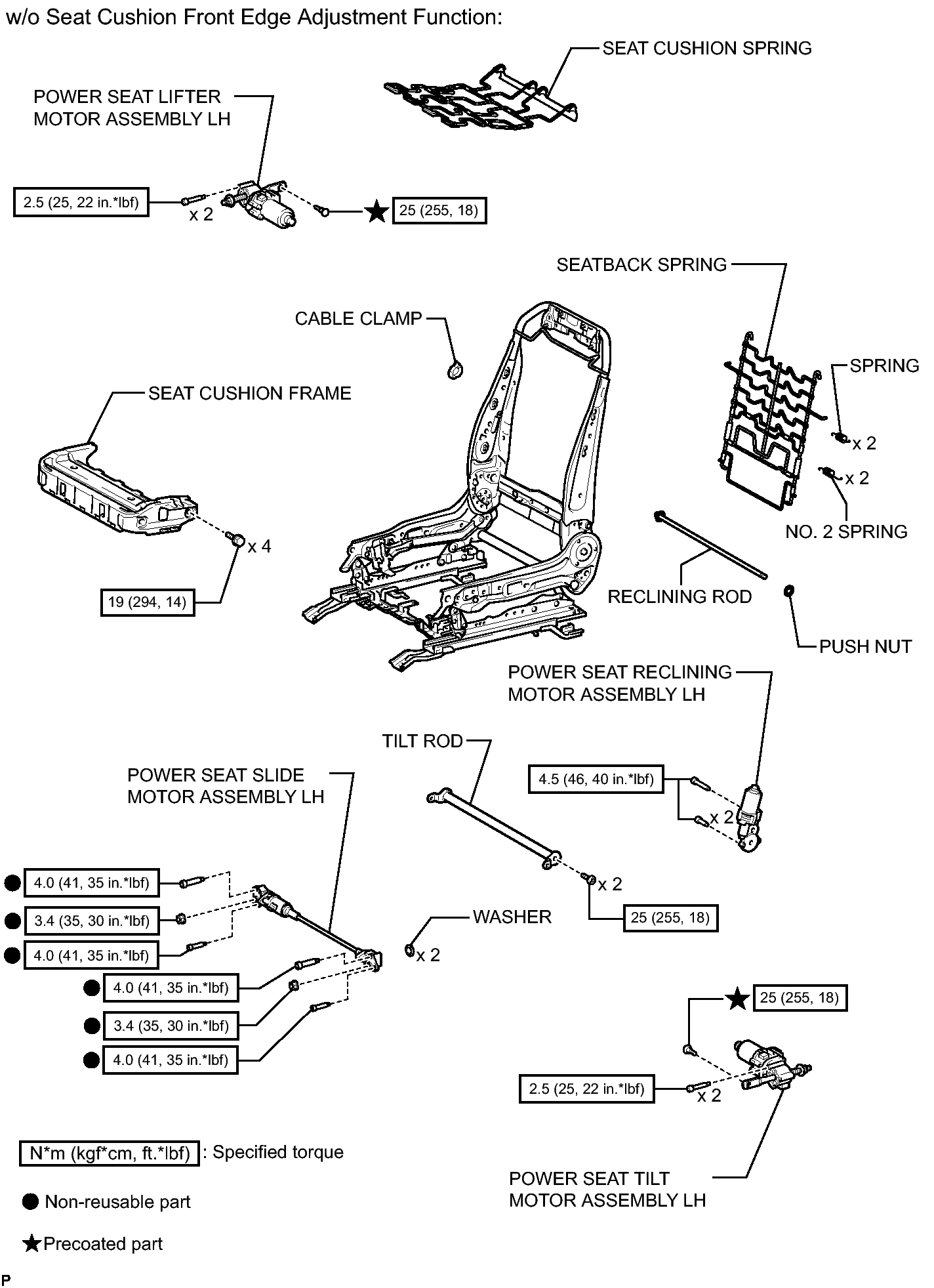

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components (1 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

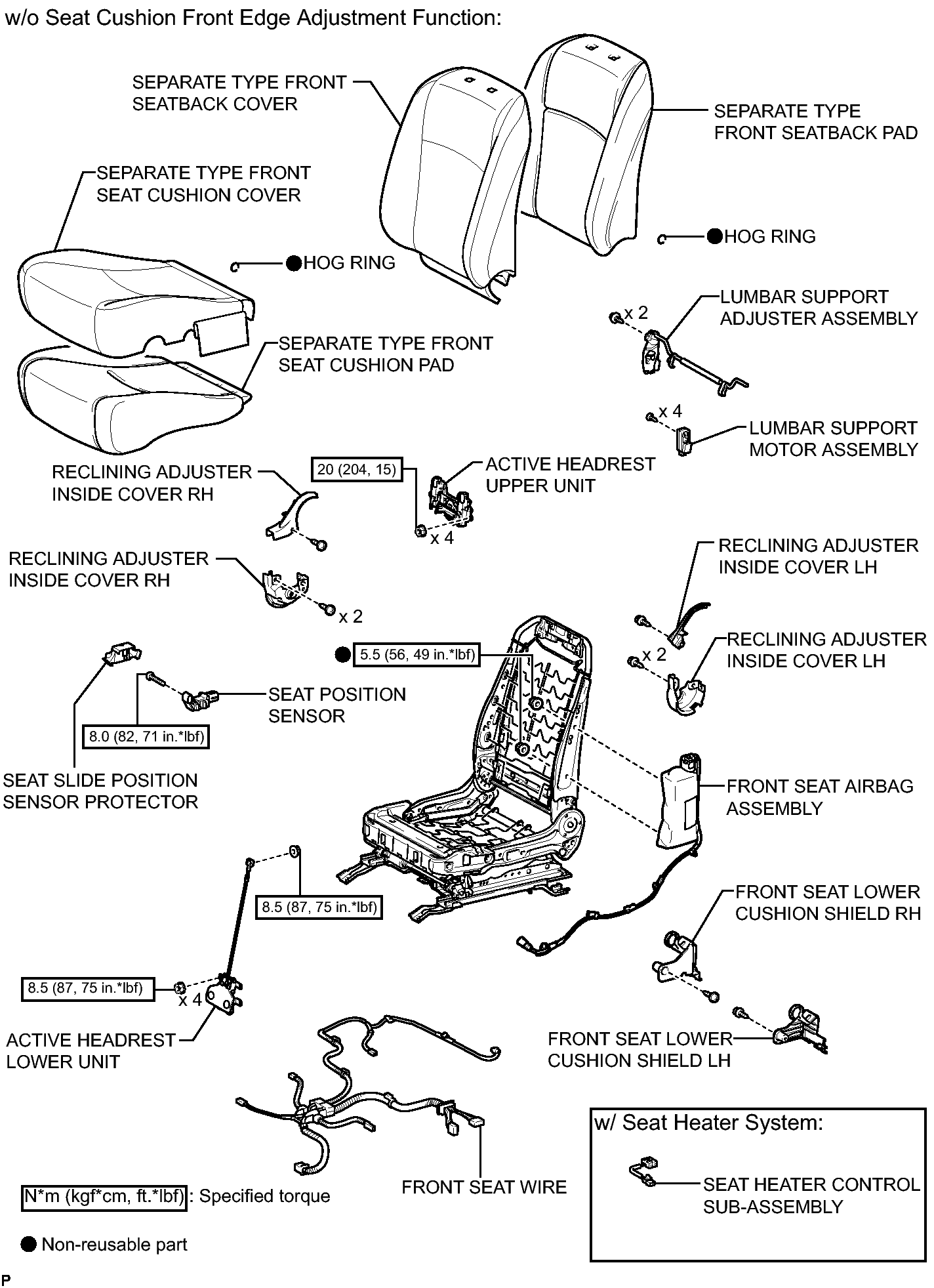

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (2 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

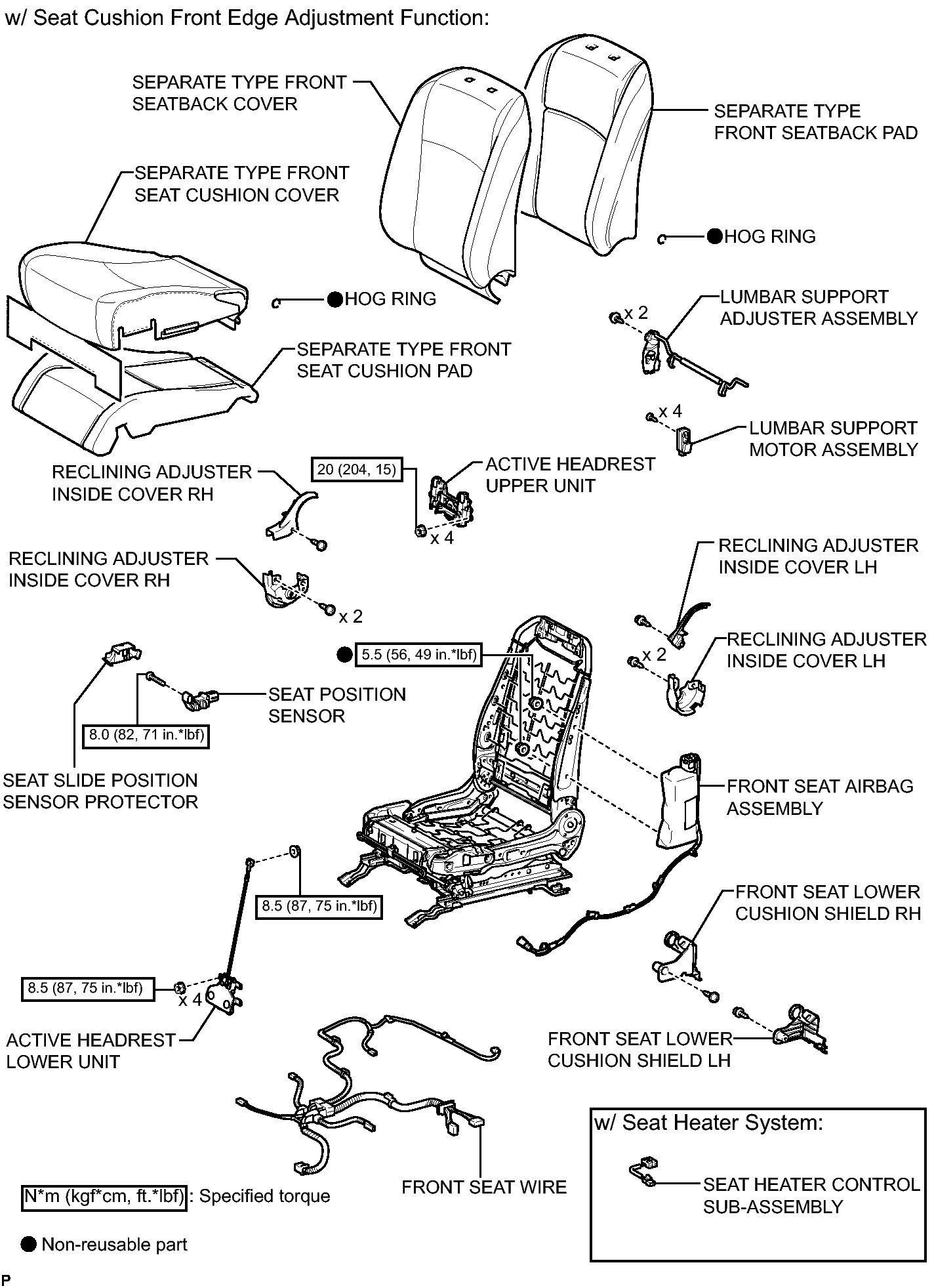

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (3 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

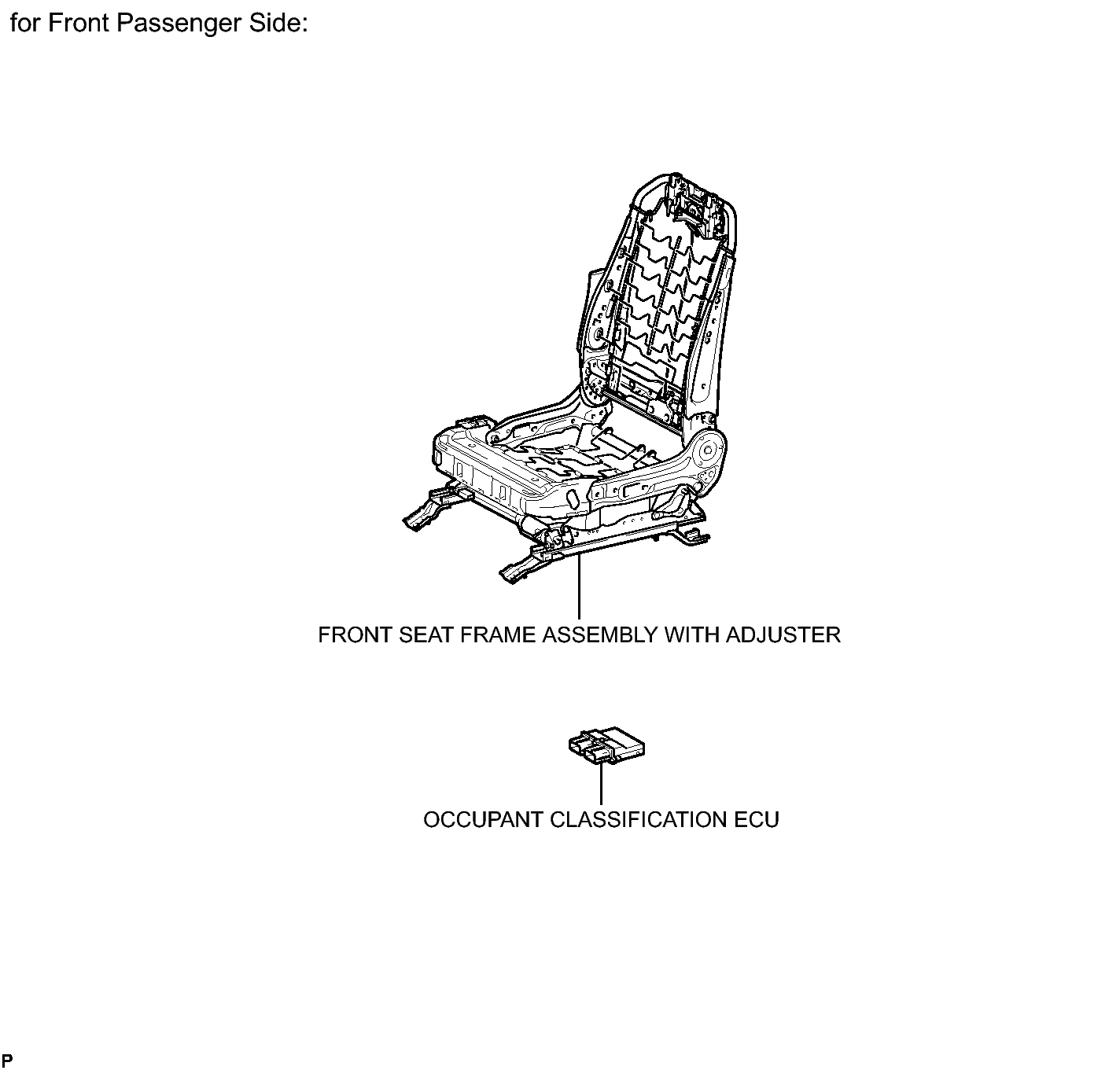

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (4 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

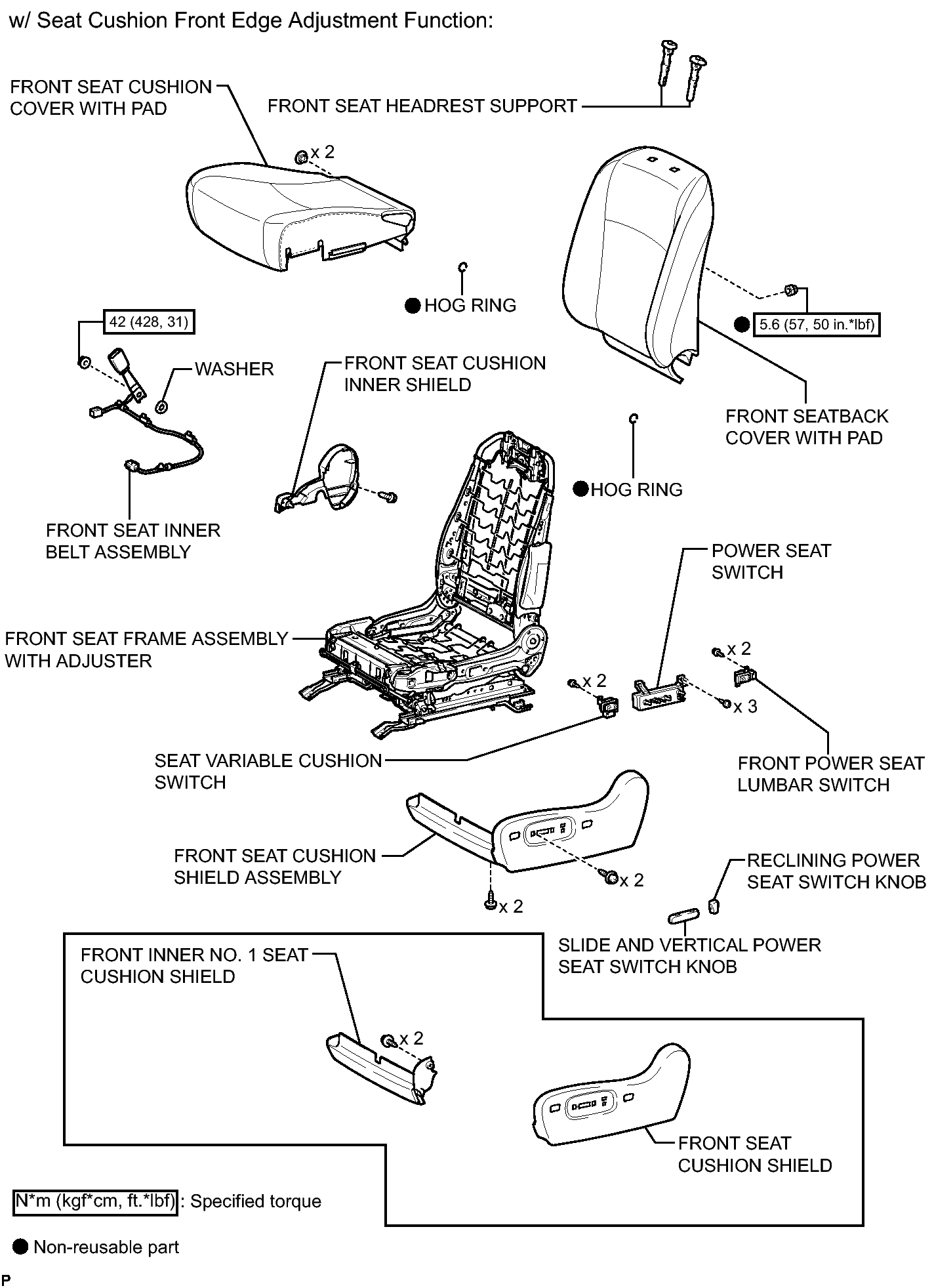

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (5 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

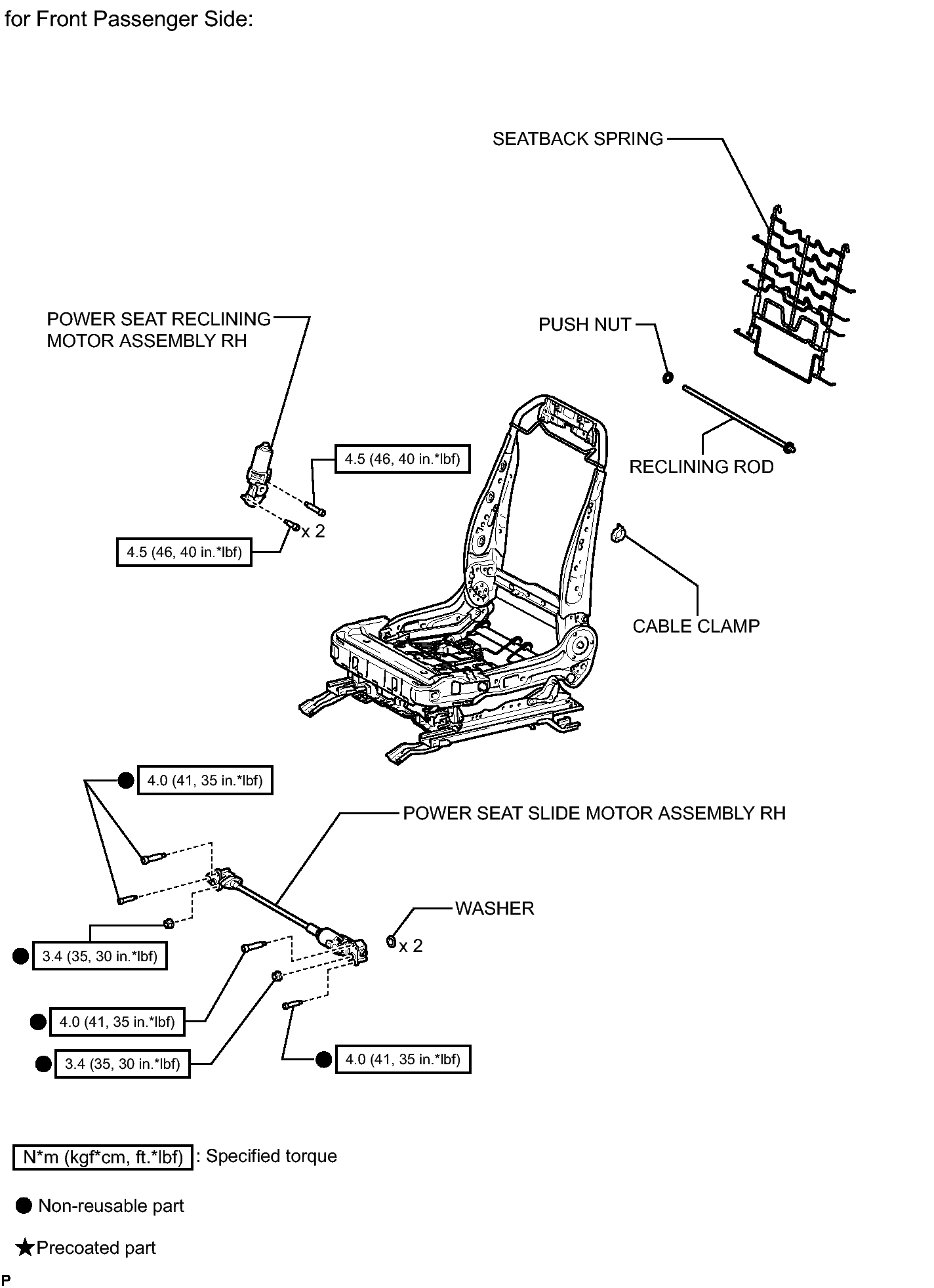

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (6 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

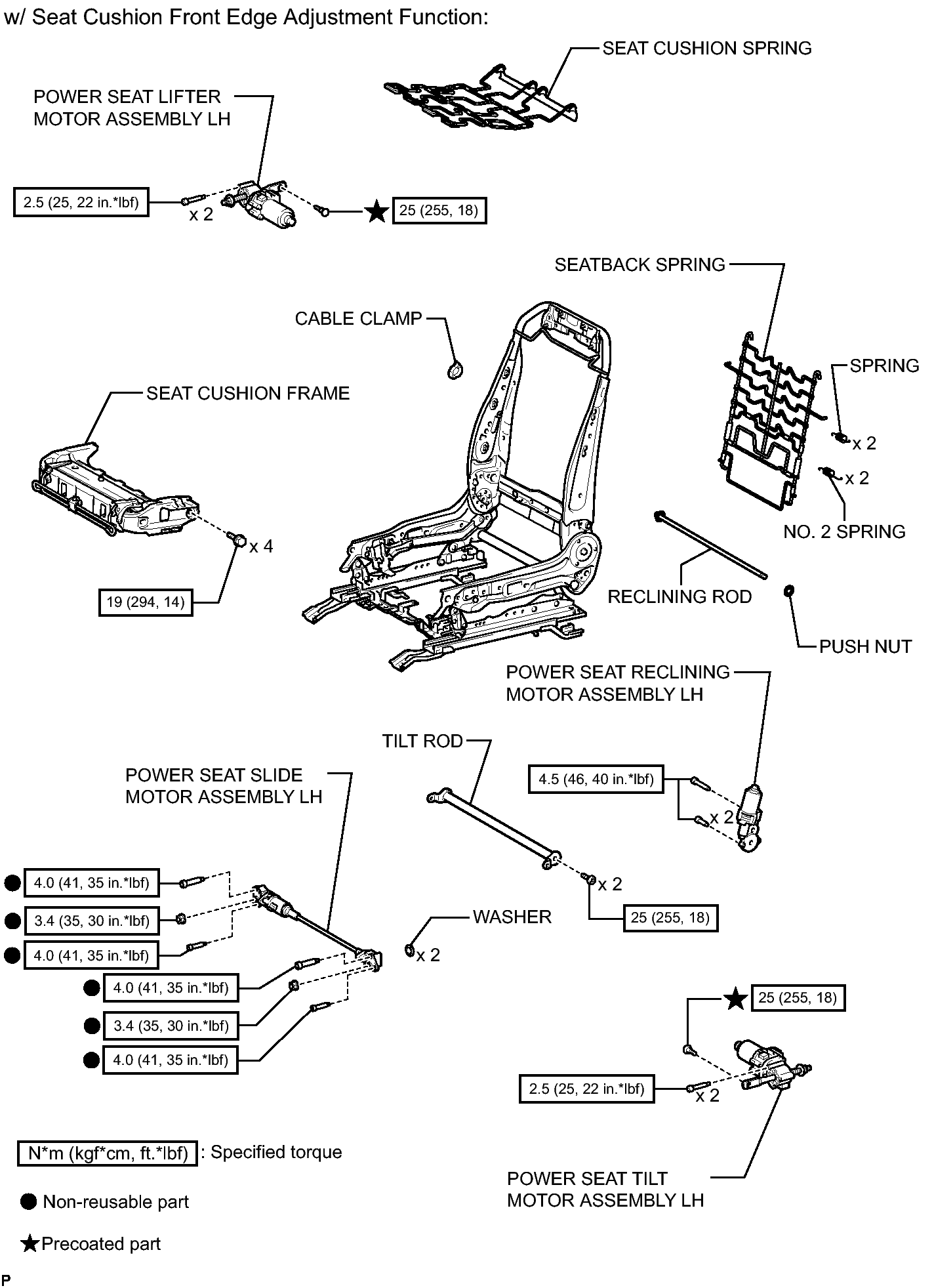

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

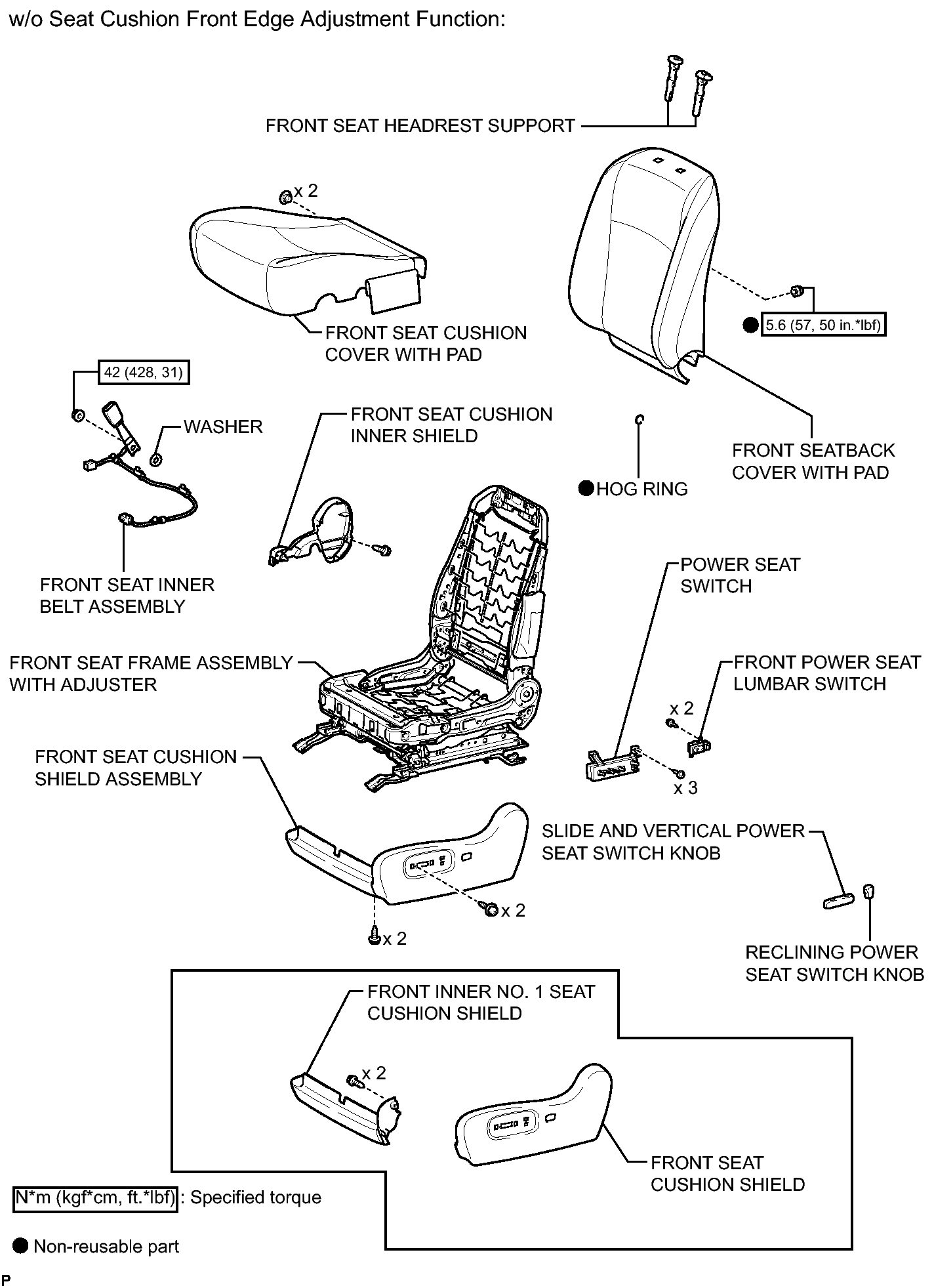

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
