FRONT POWER SEAT MOTOR ASSEMBLY (for Slide): Components: Illustration

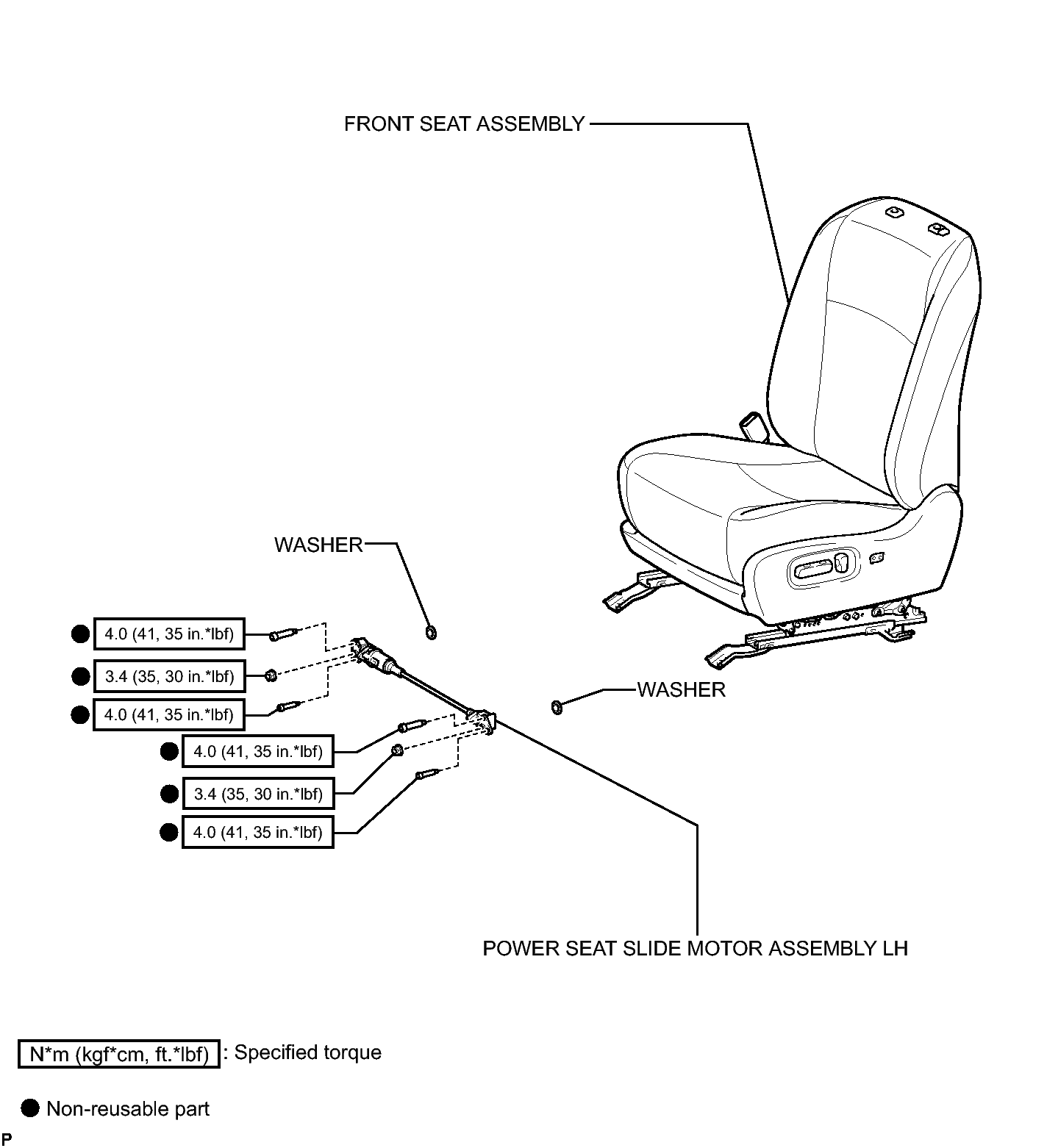

Fig 1: Identifying Front Power Seat Motor Assembly Replacement Components (for Slide)
GTY315514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
