FRONT POWER SEAT MOTOR ASSEMBLY (for Reclining): Components: Illustration

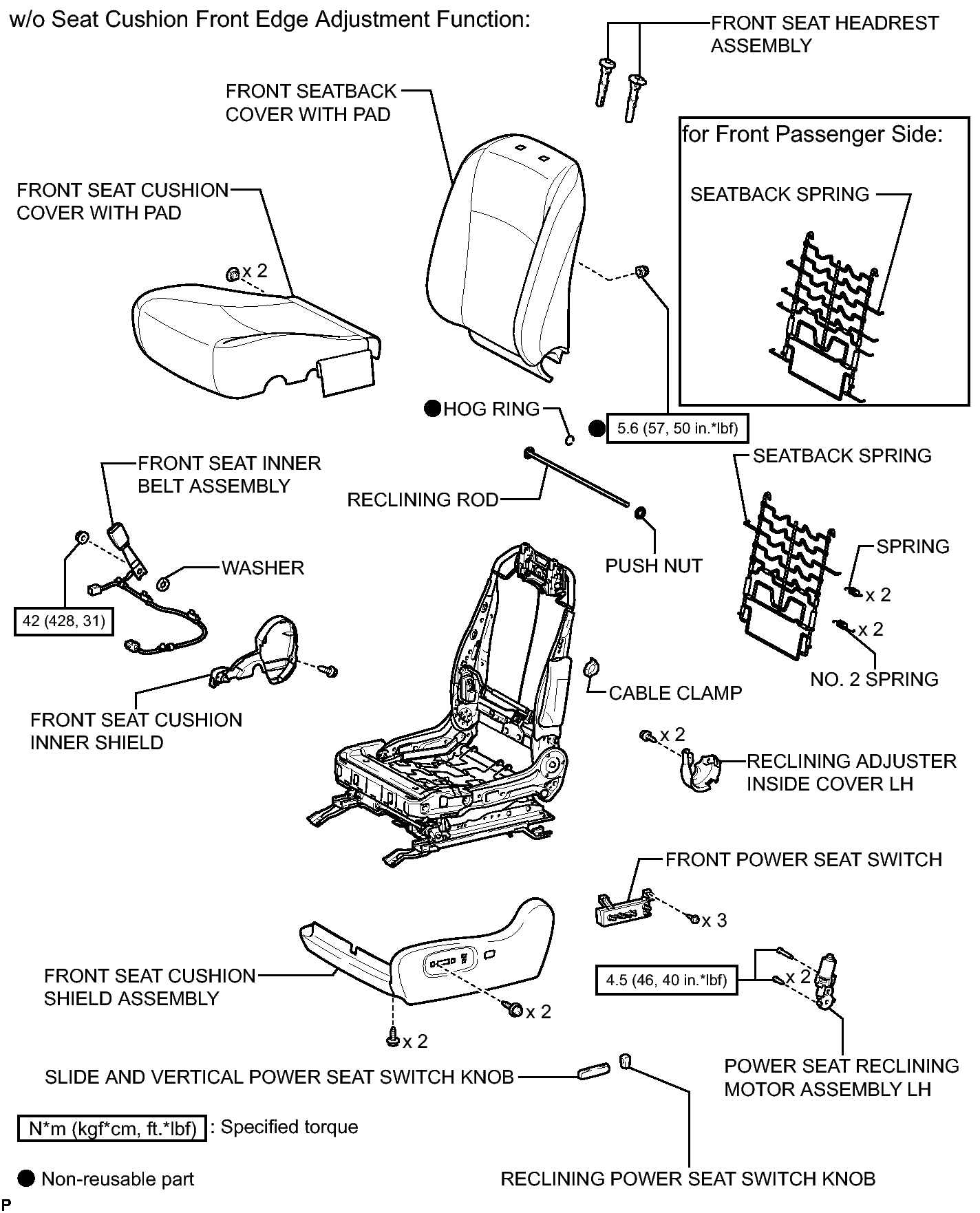

Fig 1: Front Power Seat Motor Assembly (for Reclining) Replacement Components With Torque Specifications (1 Of 2)
GTY319347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

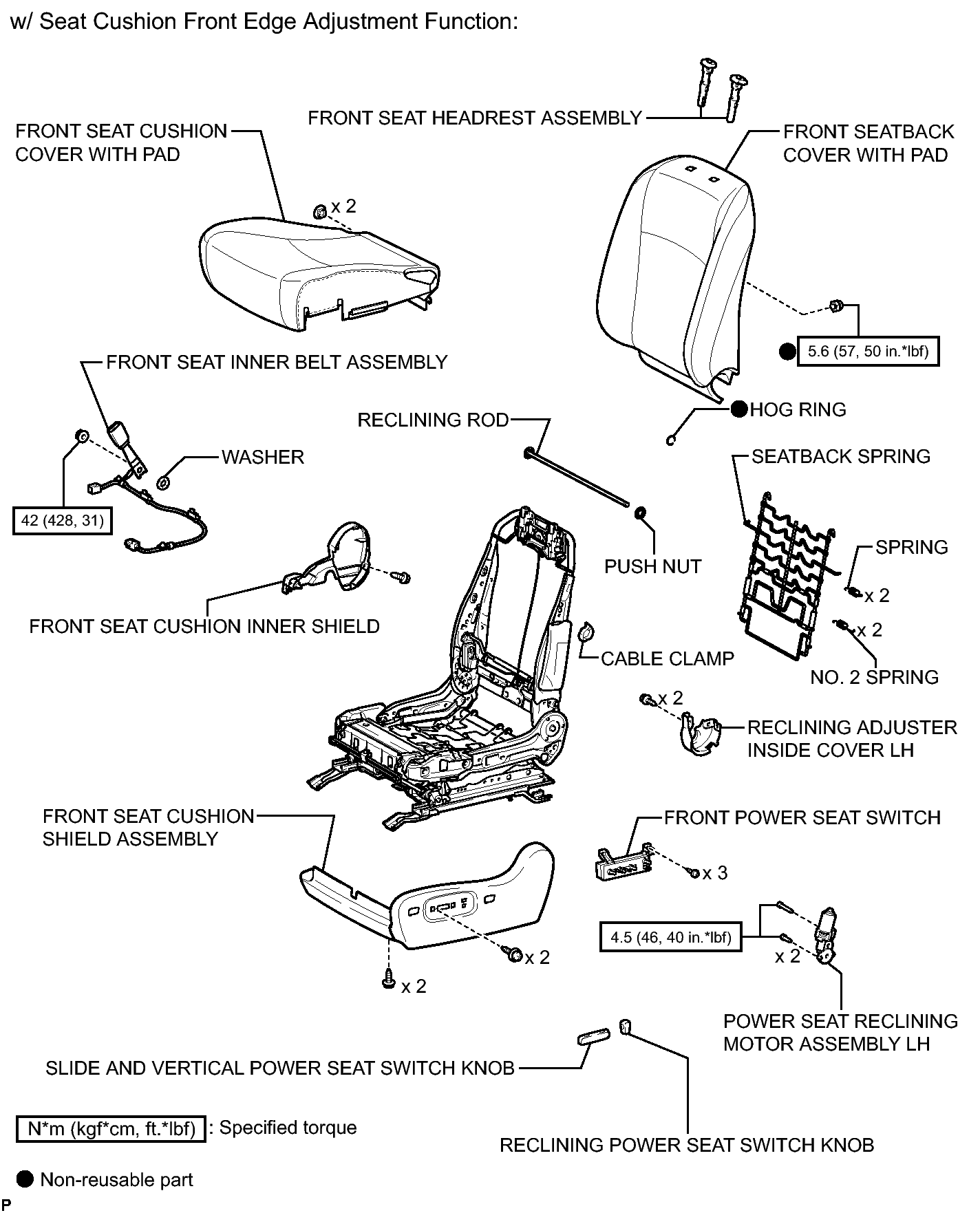

Fig 1: Front Power Seat Motor Assembly (for Reclining) Replacement Components With Torque Specifications (2 Of 2)
GTY315230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
