FRONT POWER SEAT MOTOR ASSEMBLY (for Rear Lifter): Components: Illustration

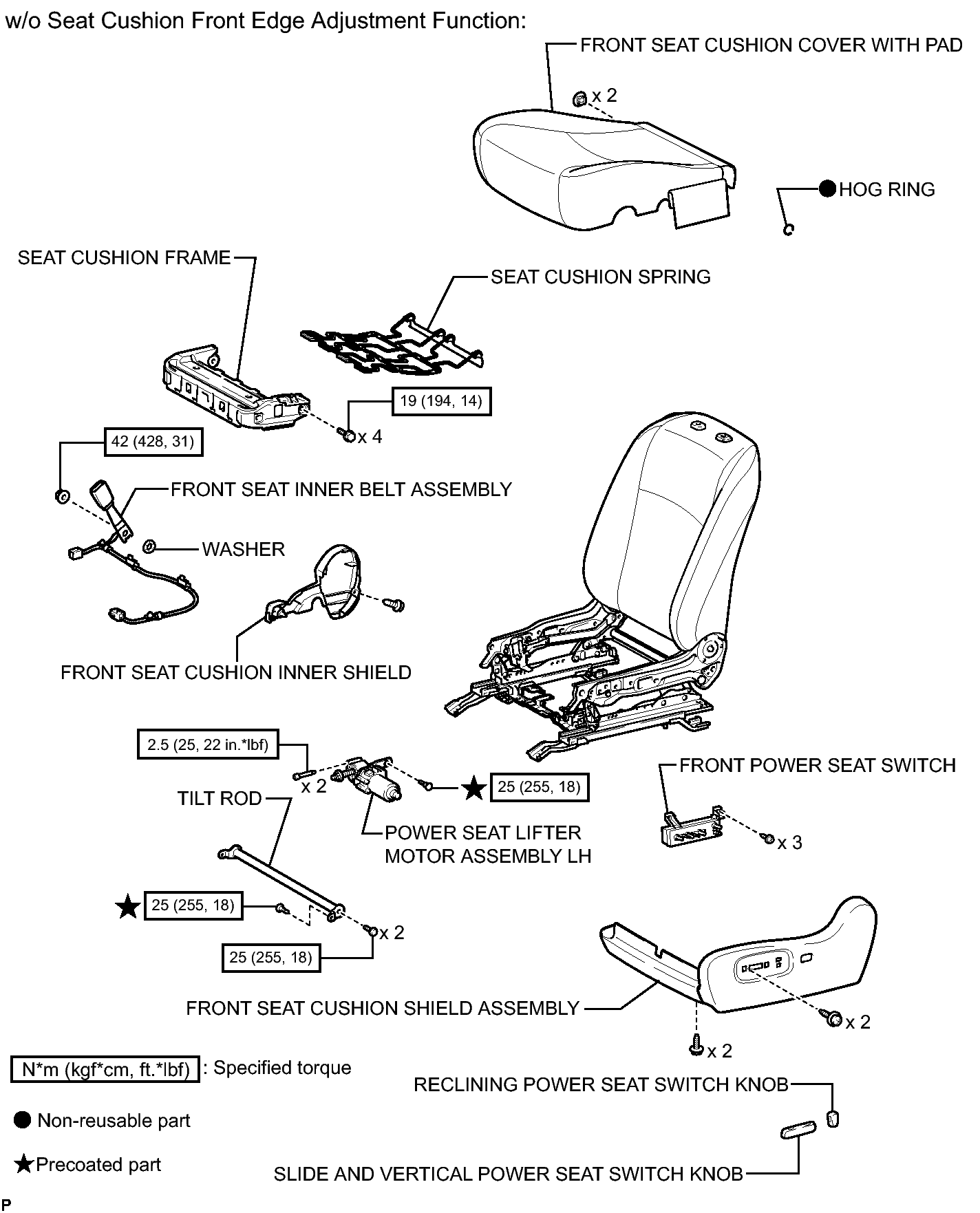

Fig 1: Identifying Front Power Seat Motor Assembly (for Rear Lifter) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

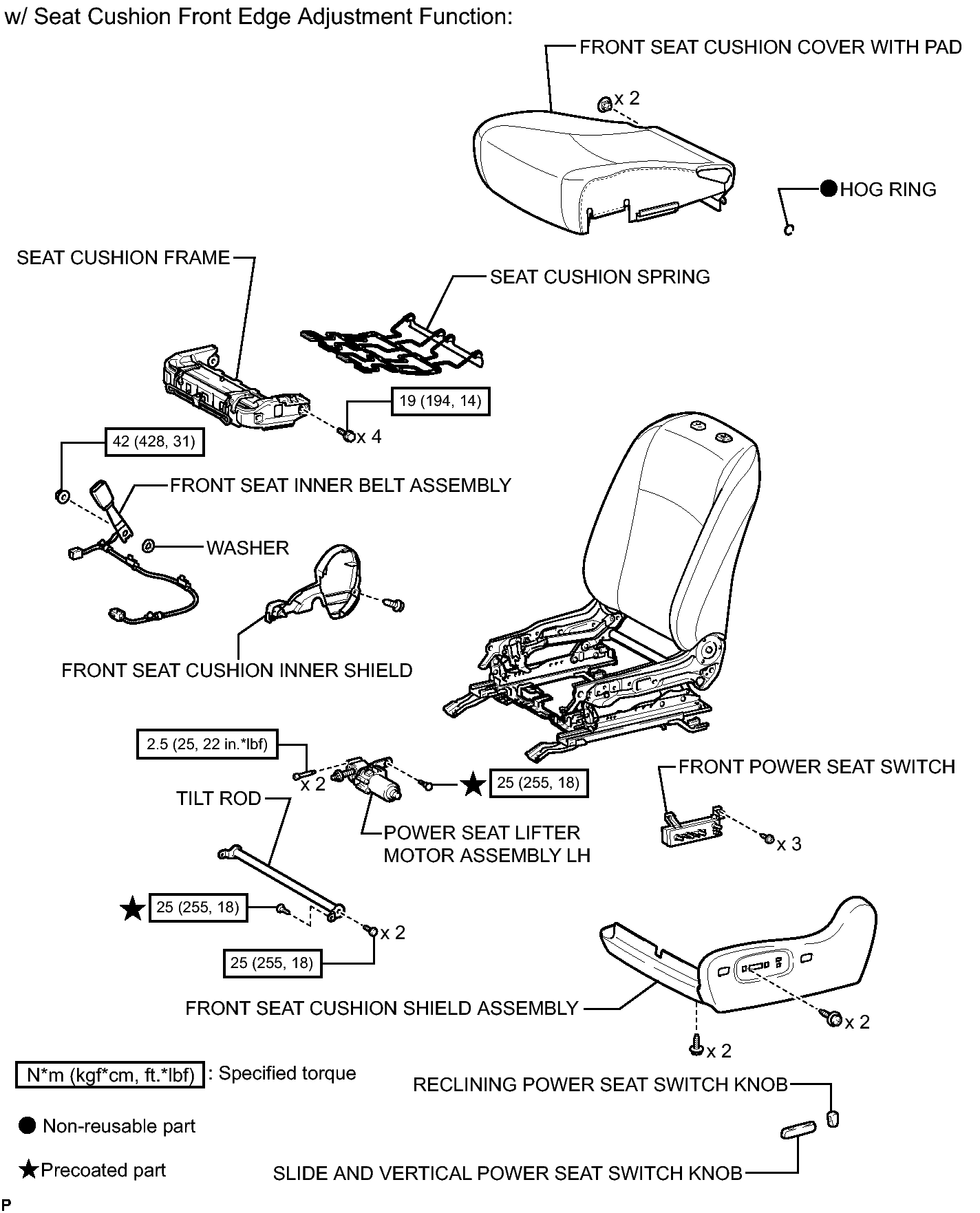

Fig 1: Identifying Front Power Seat Motor Assembly (for Rear Lifter) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
