FRONT POWER SEAT MOTOR ASSEMBLY (for Front Vertical): Components: Illustration

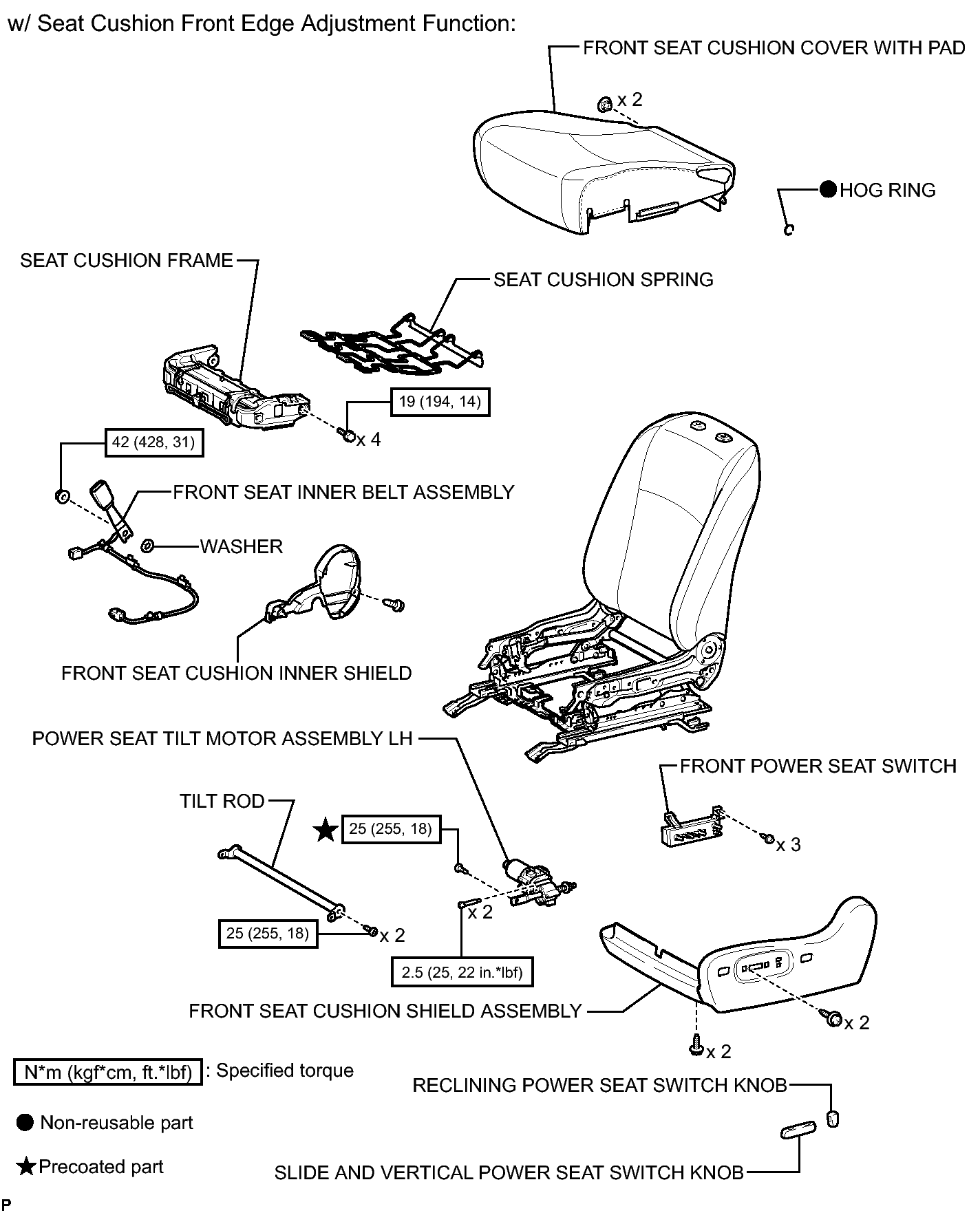

Fig 1: Identifying Front Power Seat Motor Assembly (For Front Vertical) Replacement Components With Torque Specifications (1 Of 2)
GTY323292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

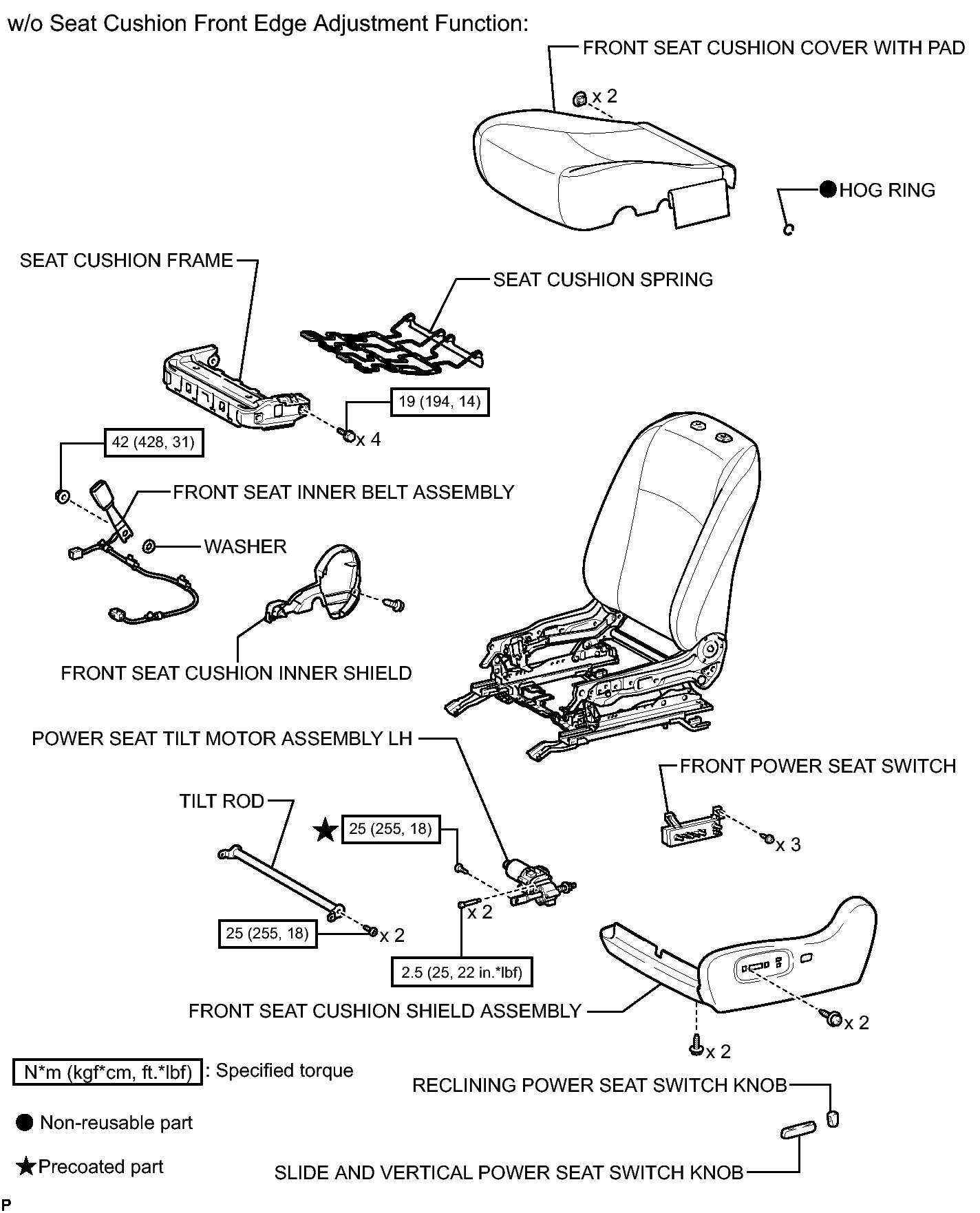

Fig 1: Identifying Front Power Seat Motor Assembly (For Front Vertical) Replacement Components With Torque Specifications (2 Of 2)
GTY317855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
