Headlights
>>
Lighting System (Diagnostic Codes & Circuit Tests) (Hybrid)
>>
Lighting System
>>
Circuit Tests
>>
Headlight (HI-BEAM) Circuit
>>
Wiring Diagram

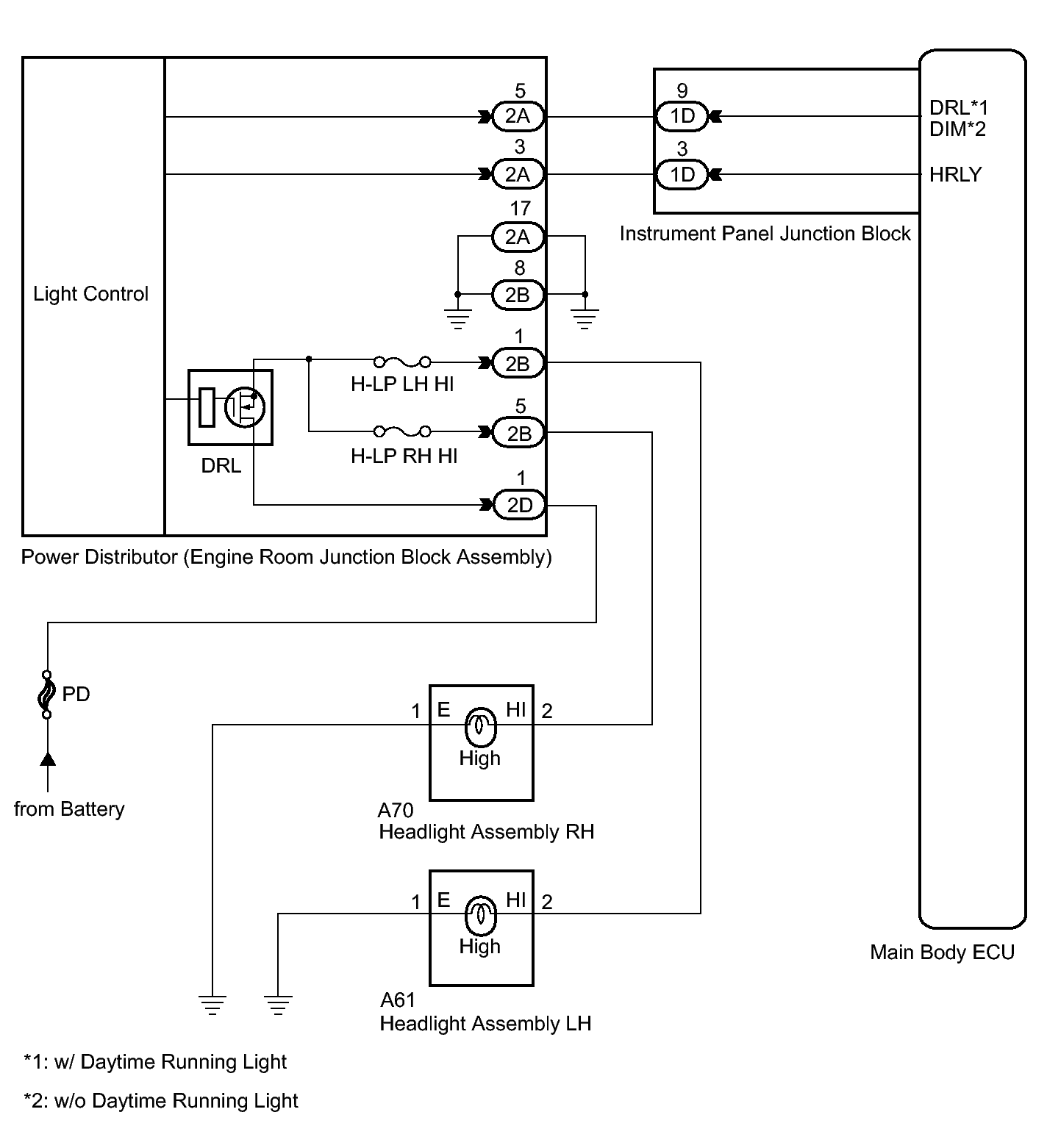

Headlight (HI-BEAM) Circuit: Wiring Diagram
Fig 1: Engine Room Junction Block Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
