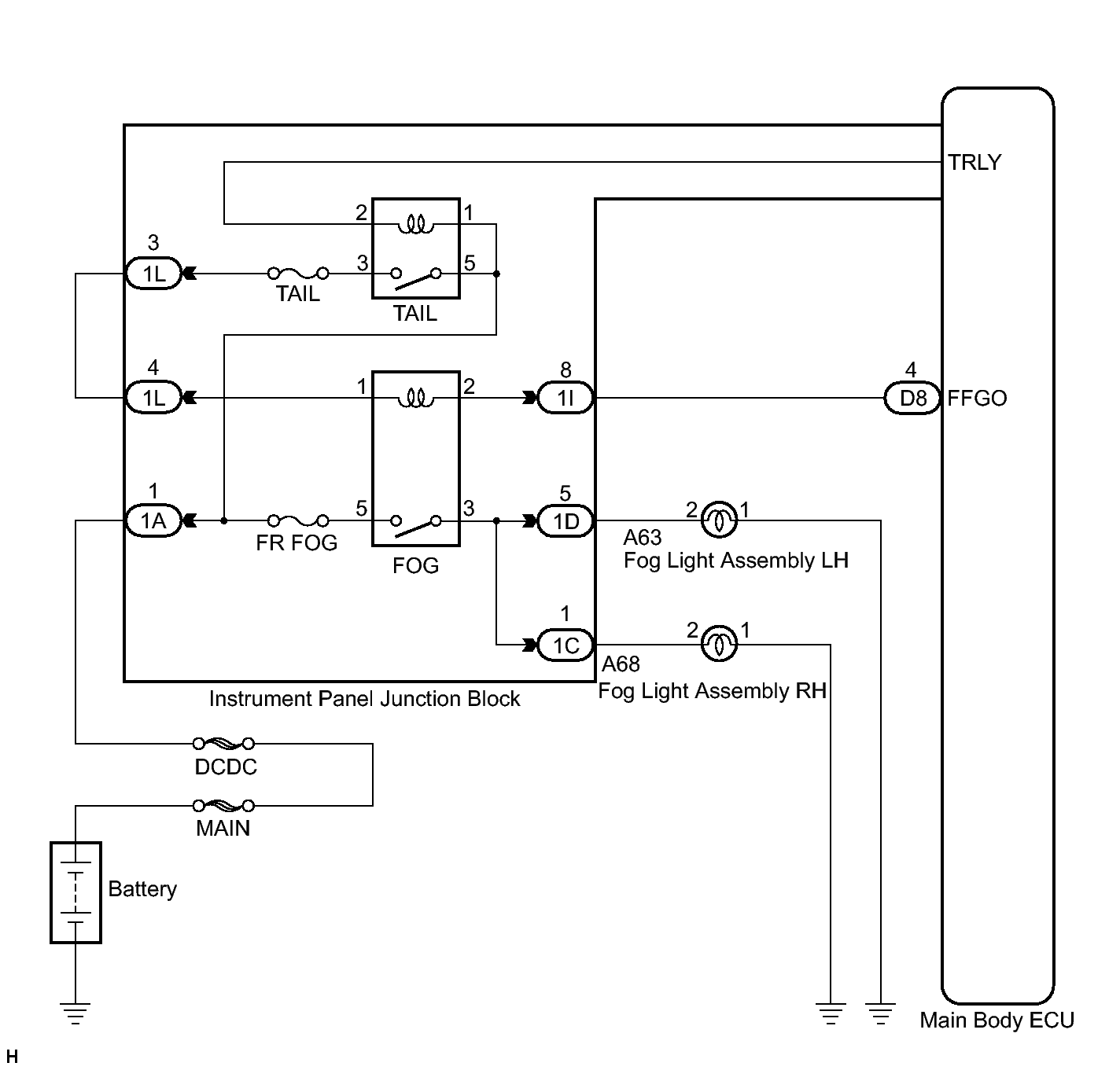

Home >> Toyota >> 2012 >> Highlander Hybrid >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System (Diagnostic Codes & Circuit Tests) (Hybrid) >> Lighting System >> Circuit Tests >> Front Fog Light Circuit >> Wiring Diagram
