Door Mirror Foot Light Circuit
>>
Wiring Diagram
Door Mirror Foot Light Circuit: Wiring Diagram

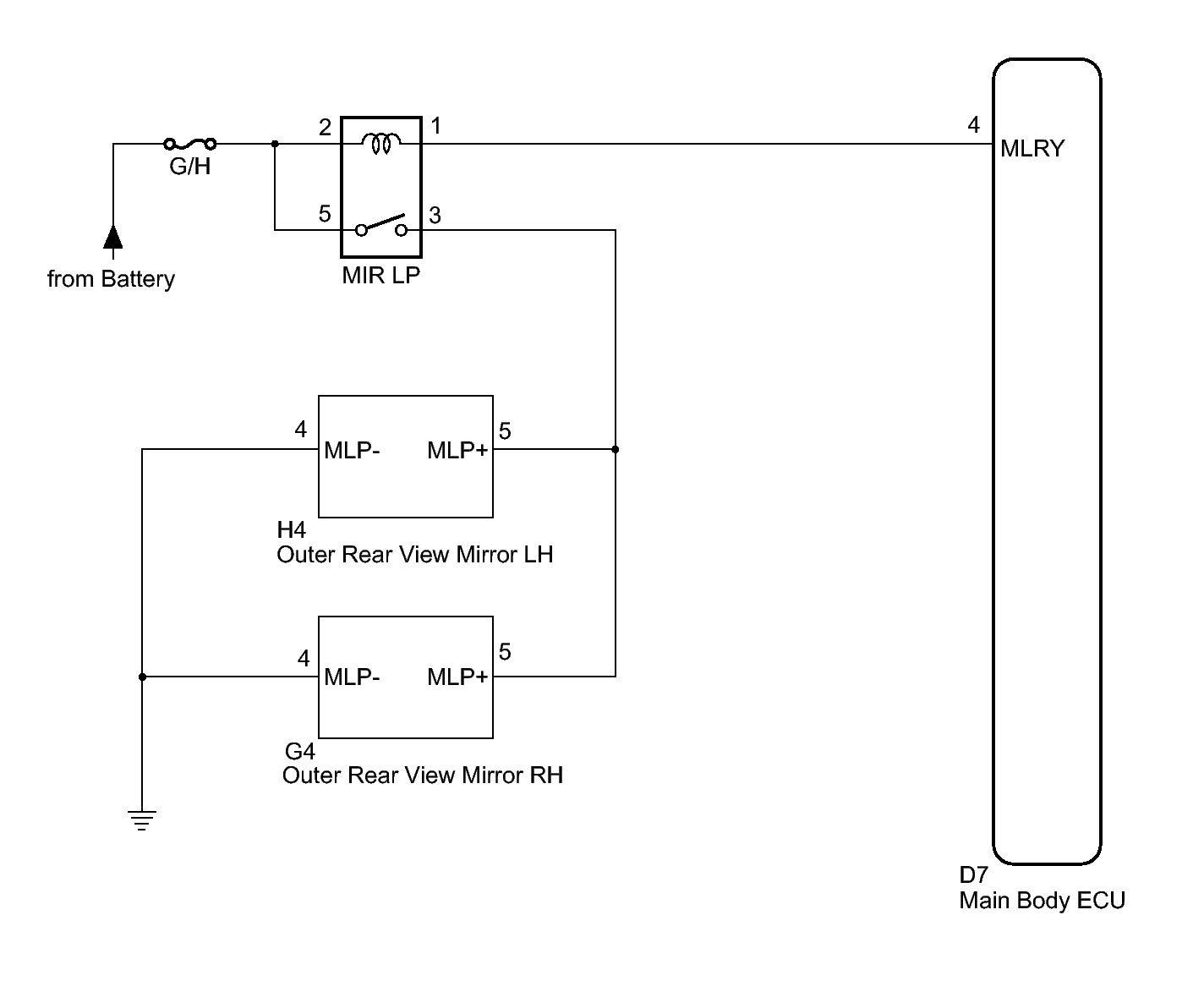

Fig 1: Door Mirror Foot Light Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
