Daytime Running Light Relay Circuit: Wiring Diagram

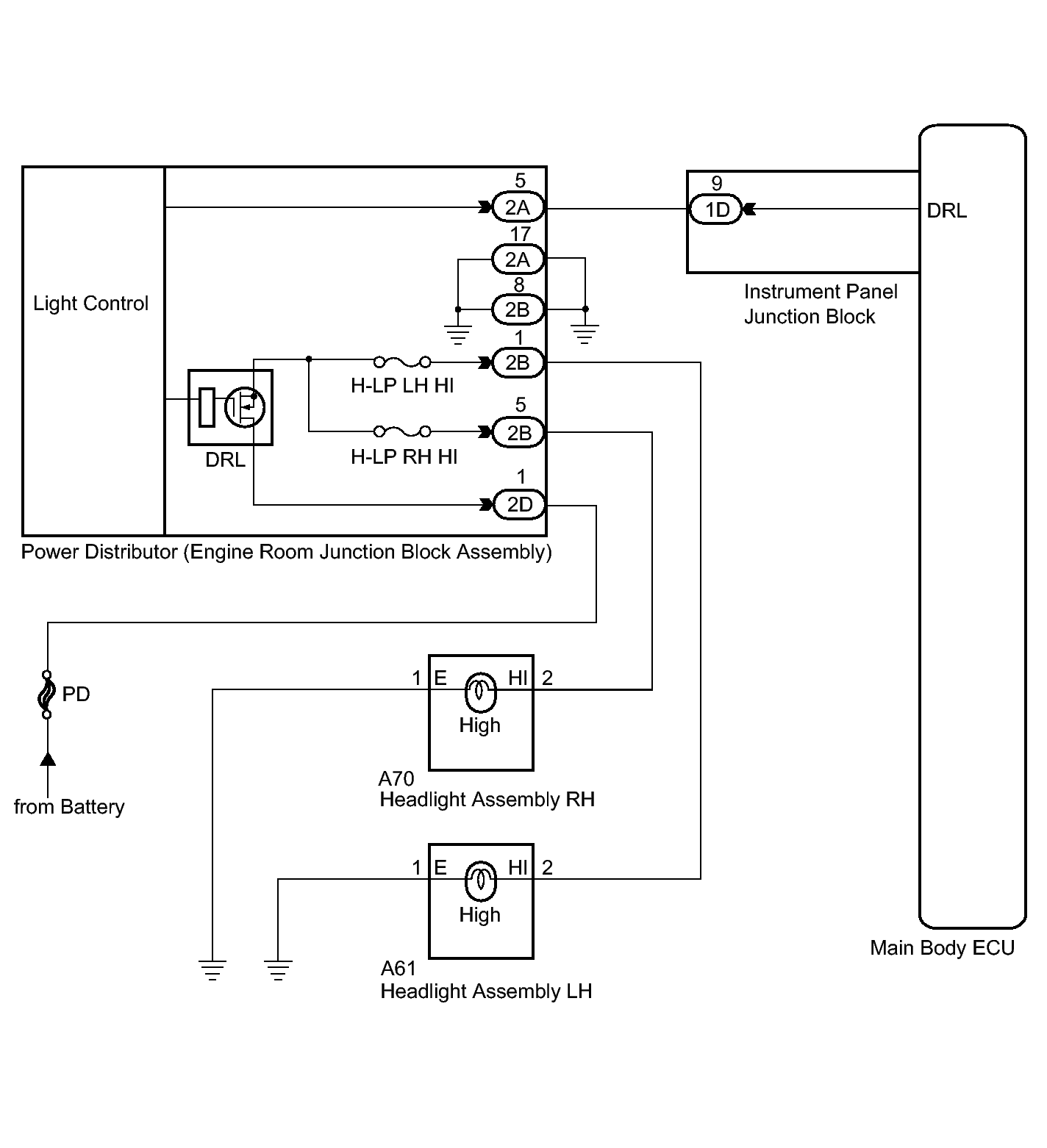

Fig 1: Engine Room Junction Block Assembly Circuit Wiring Diagram

GTY297138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
