Meter / Gauge System: Initialization: Initialization

  1. OIL MAINTENANCE INFORMATION MODE RESET OPERATION

    HINT:

    • The TRIP meter reset knob is located below the speedometer.
    • This reset operation is required only for U.S.A.
    1. Turn the ignition switch to ON.
    2. Press the ODO/TRIP switch until the TRIP meter A appears.
    3. Turn the ignition switch off.
    4. Turn the ignition switch to ON while pressing and holding the TRIP meter reset knob. Hold the TRIP meter reset knob until the following conditions are met and 5 seconds have passed.

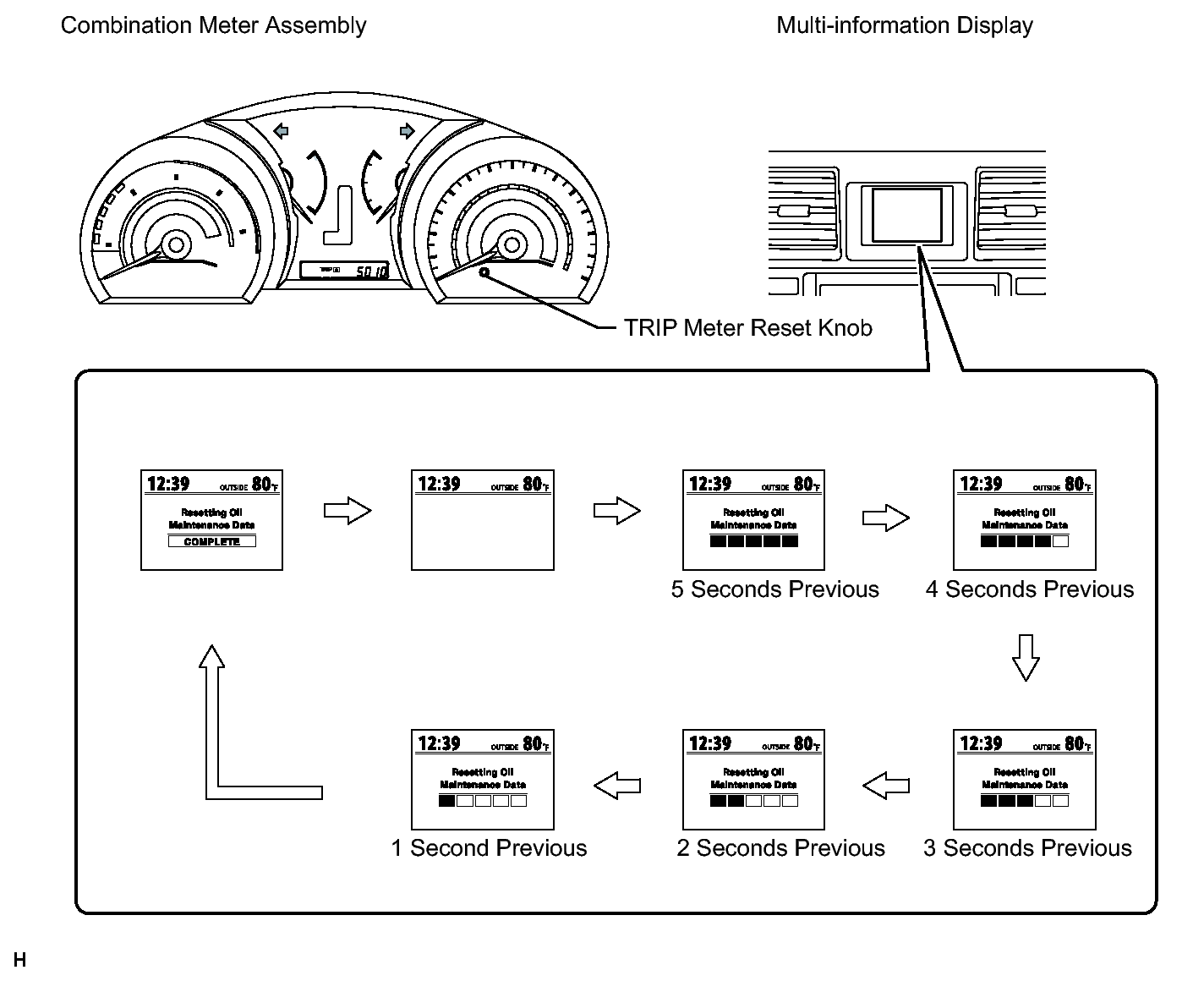

      Fig 1: Identifying Multi-Information Display & Combination Meter Assembly
      GTY295478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • The multi-information display shows "Resetting Oil Maintenance Data".
      • When the oil maintenance reminder turns off, the reset is complete.
