Parts Location: Illustration

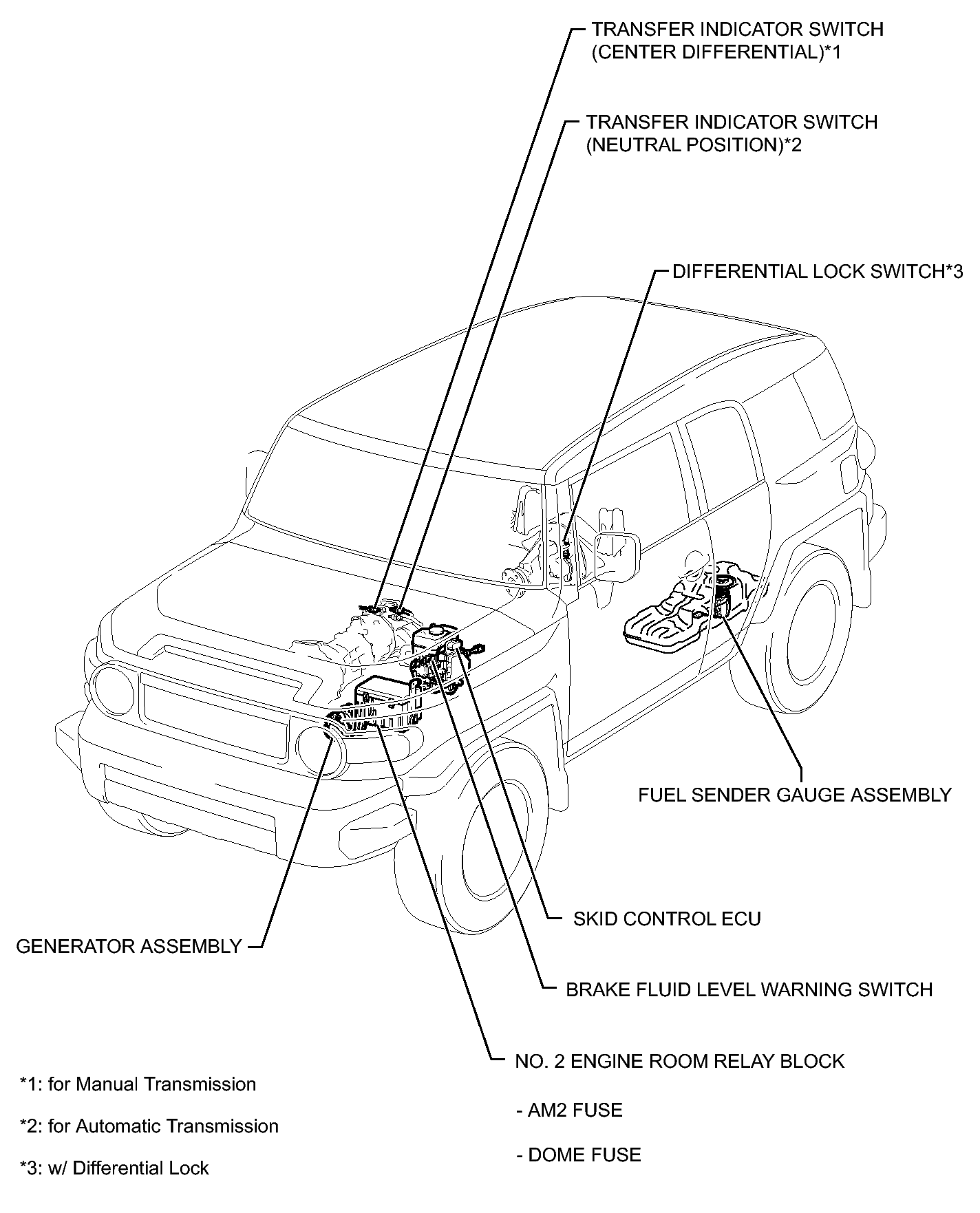

Fig 1: Identifying Meter / Gauge System Component Location (1 Of 5)
GTY309833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

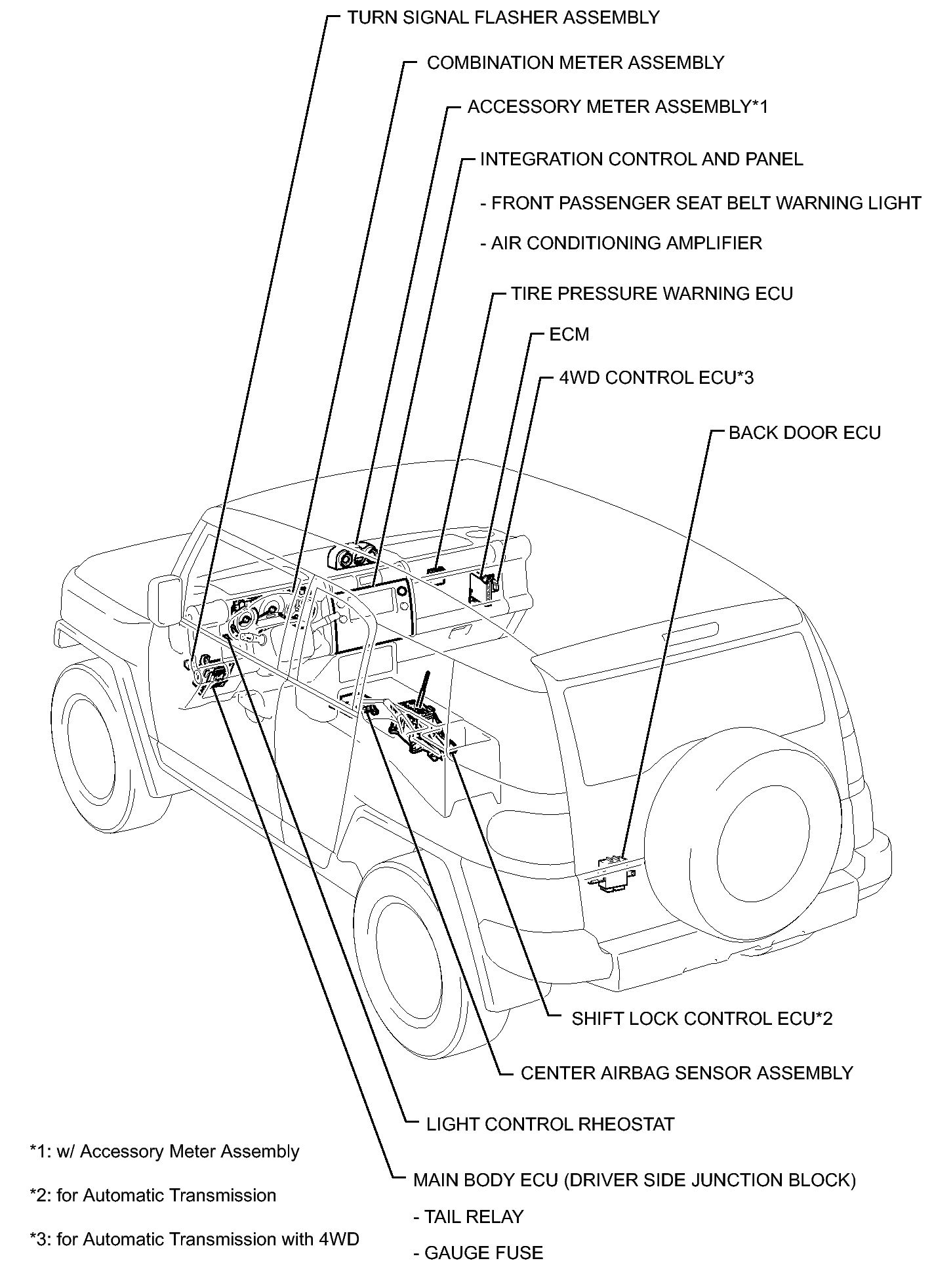

Fig 1: Identifying Meter / Gauge System Component Location (2 Of 5)
GTY308718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

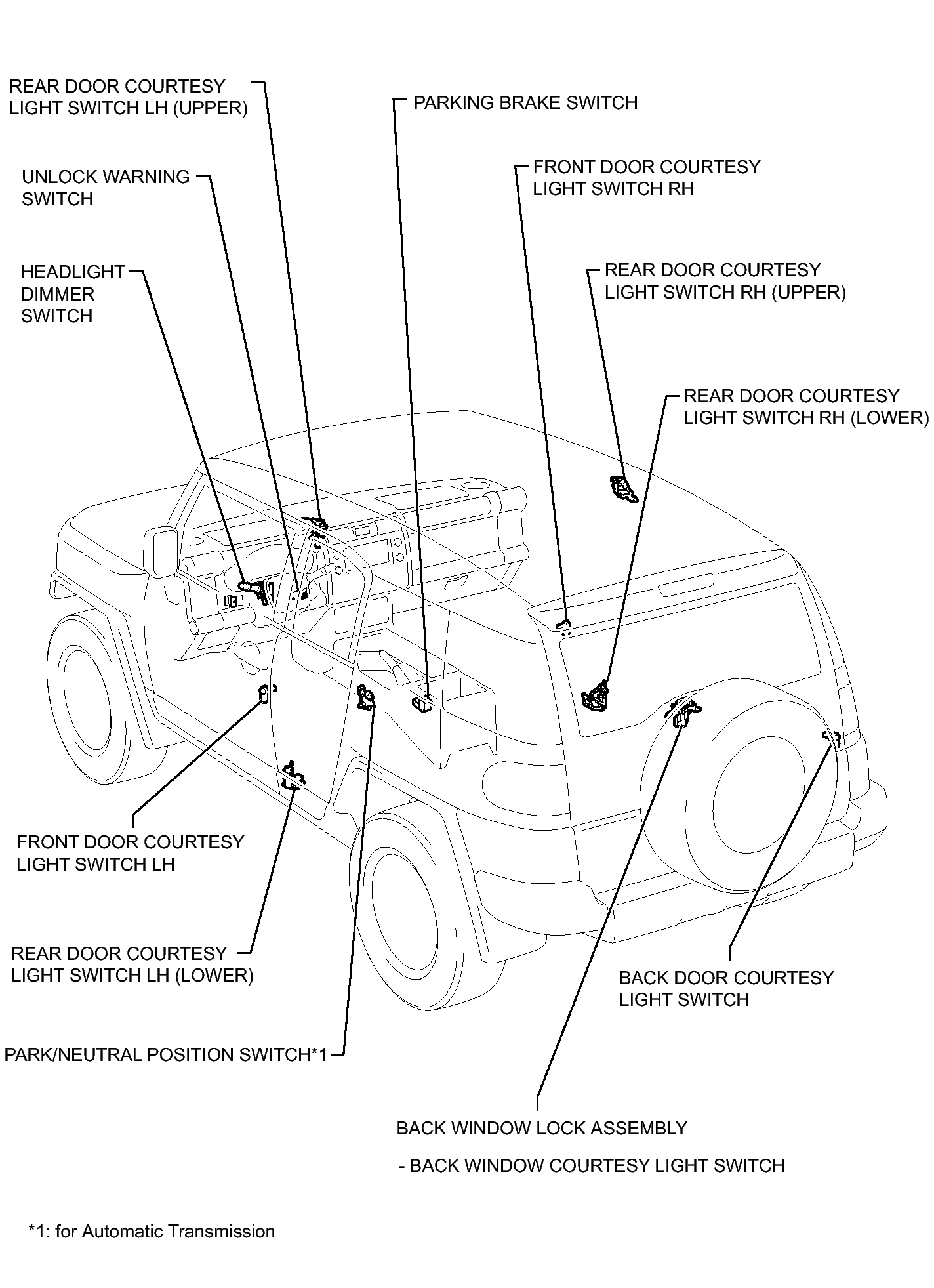

Fig 1: Identifying Meter / Gauge System Component Location (3 Of 5)
GTY309060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


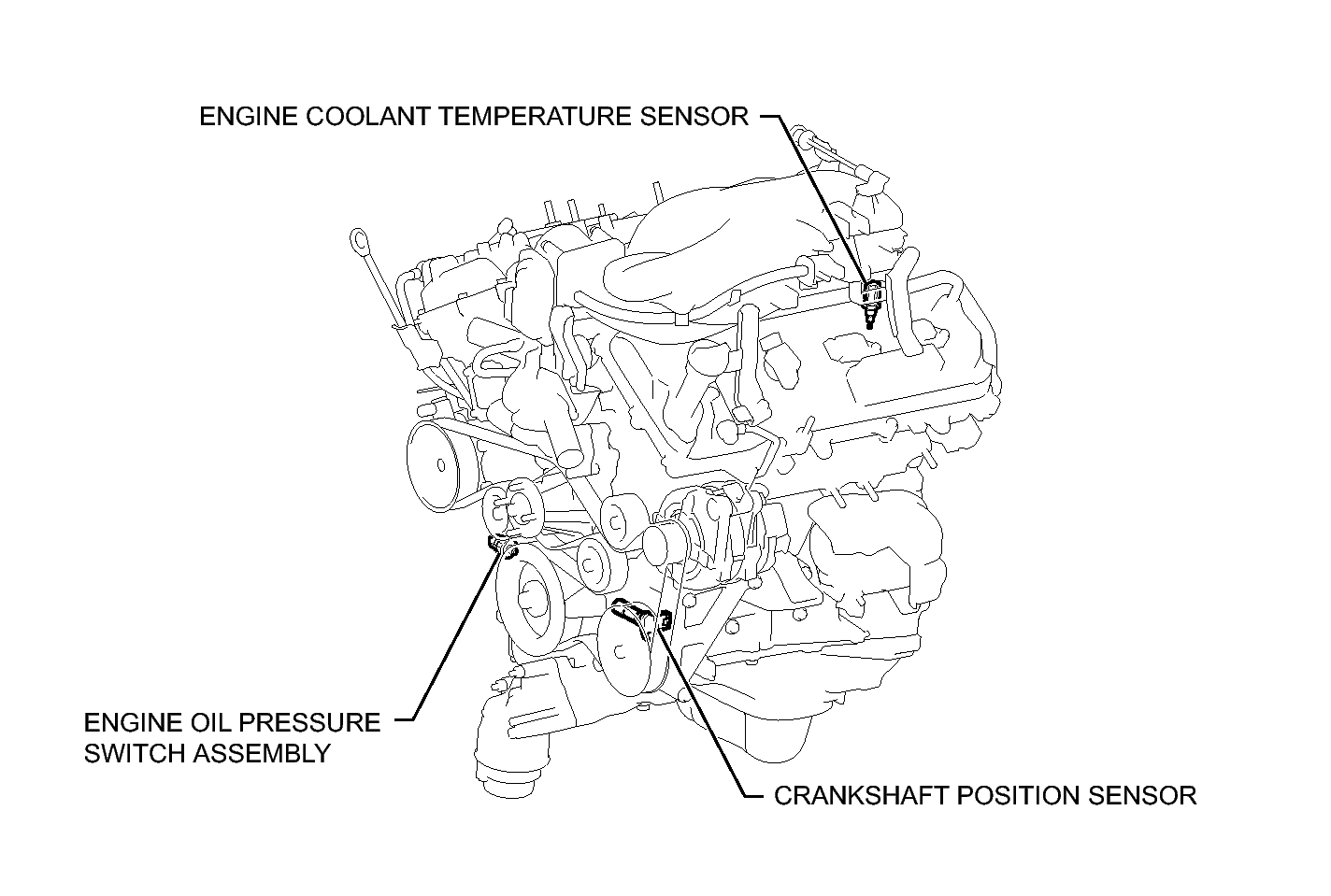

Fig 1: Identifying Meter / Gauge System Component Location (4 Of 5)
GTY177994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


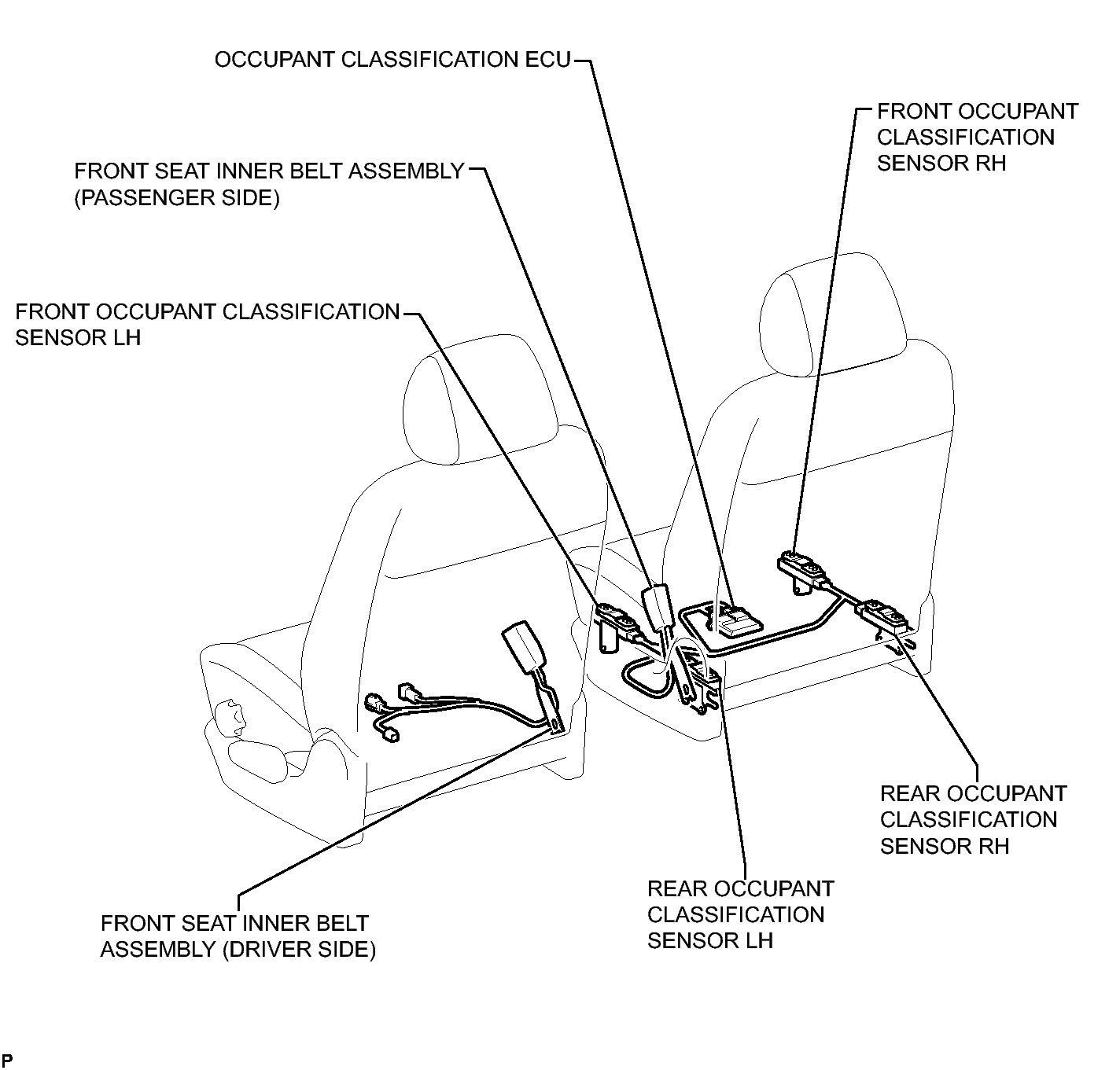

Fig 1: Identifying Meter / Gauge System Component Location (5 Of 5)
GTY308867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
