Combination Meter: Components: Illustration

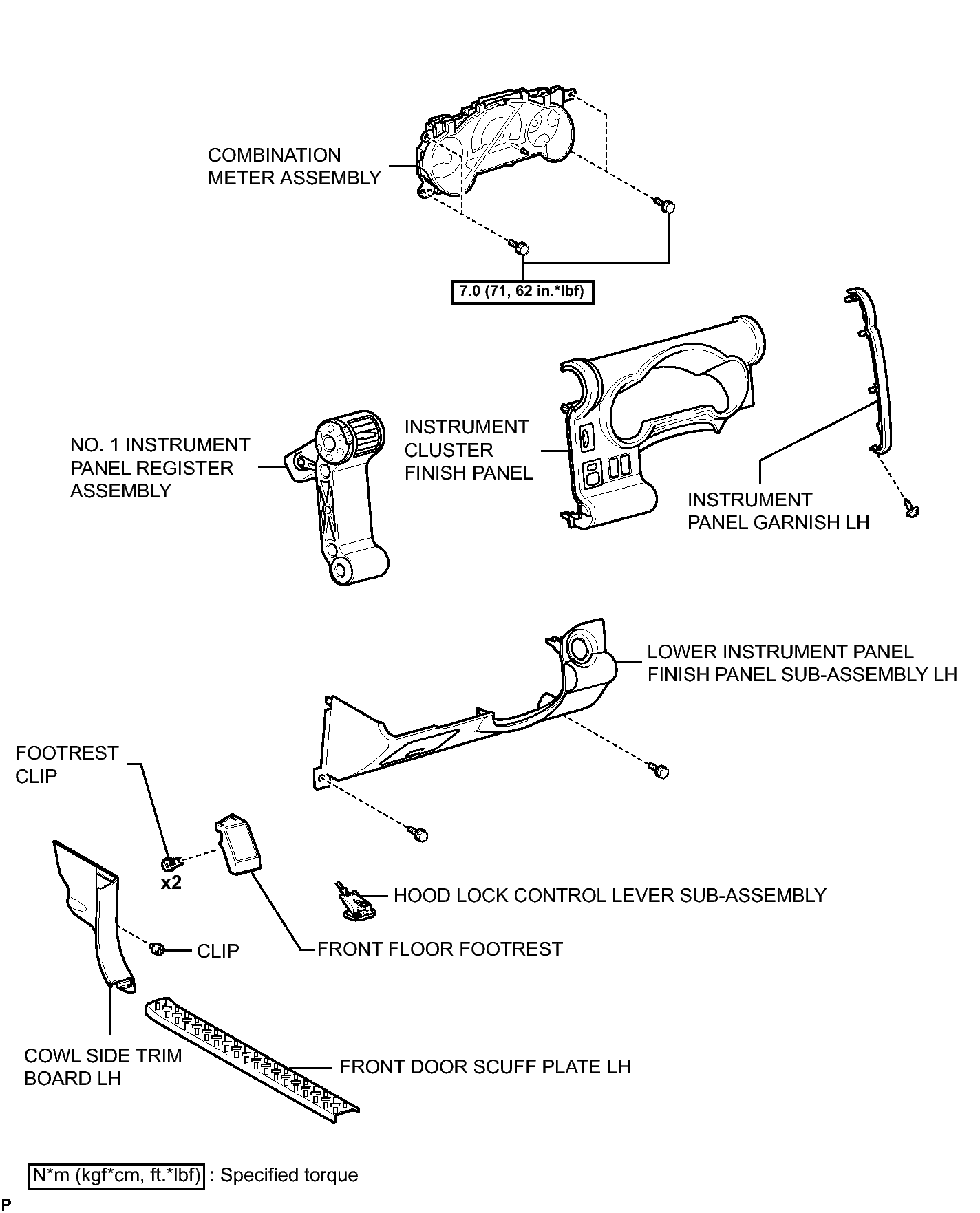

Fig 1: Combination Meter Replacement Components With Torque Specifications (1 Of 2)
GTY196682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

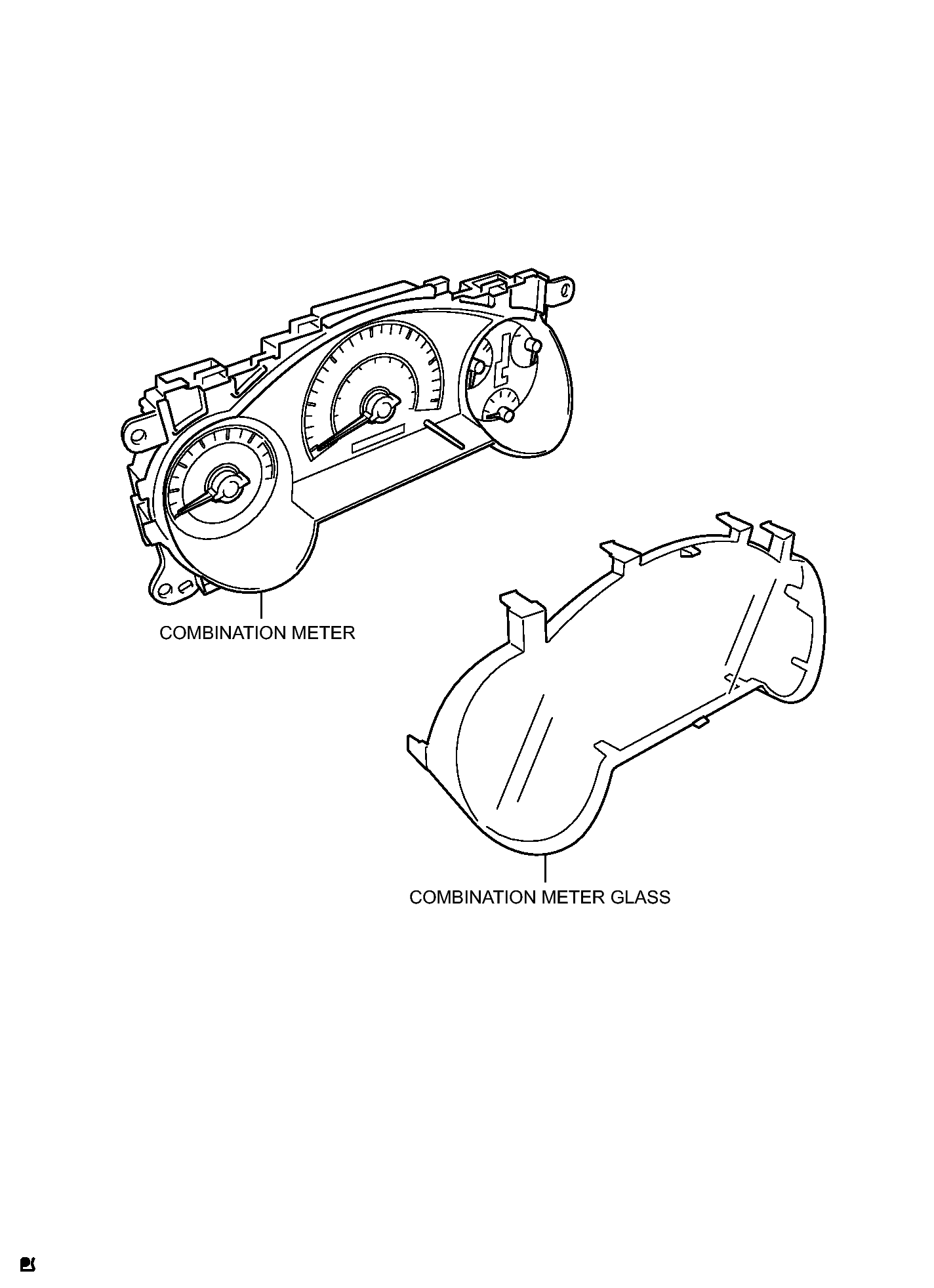

Fig 1: Identifying Combination Meter Replacement Components (2 Of 2)
GTY206890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
