Warning Buzzer does not Sound: Wiring Diagram

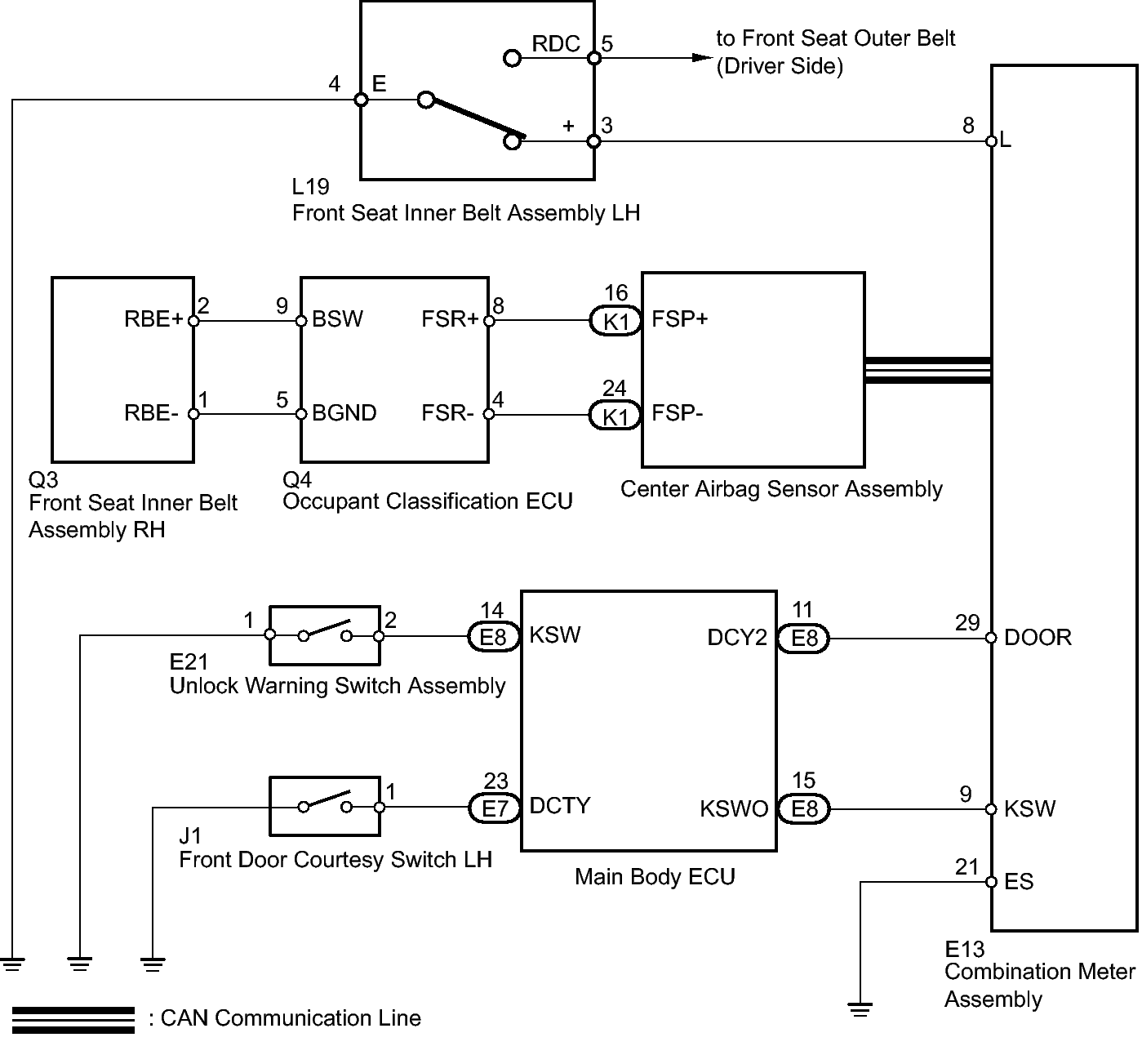

Fig 1: Warning Buzzer Wiring Diagram

GTY309903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
